| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17922cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17922cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,721,920 | 103,896,000 |
| Size | 409.8 MB | 99.1 MB |
| Events in quadrant A | 3,112,571 | 676,609 |
| Events in quadrant B | 3,270,052 | 696,323 |
| Events in quadrant C | 3,179,509 | 659,822 |
| Events in quadrant D | 2,998,257 | 648,839 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13955 | 2 |
| B | 0 | 14232 | 2 |
| C | 0 | 13792 | 2 |
| D | 0 | 13834 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6669 | 43 | 0.644774% |
| B | 6669 | 53 | 0.794722% |
| C | 6669 | 71 | 1.064627% |
| D | 6668 | 12 | 0.179964% |

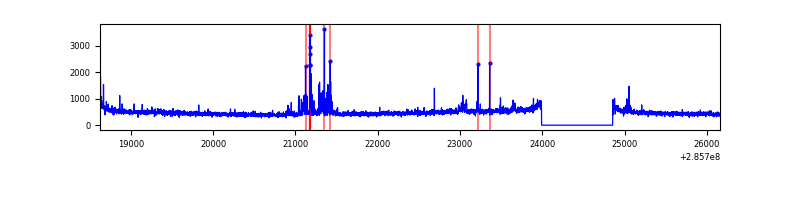

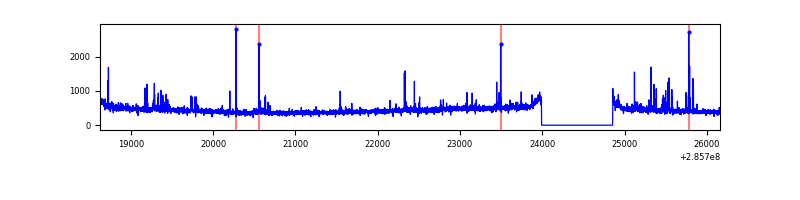

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7534 | 6670 | 19 | 19 | 0.25% | 0.28% |  |
| B | 7534 | 6670 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7534 | 6670 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7533 | 6669 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 111605 | 706.67 | 773 | 755 | 156.9 |
| A | 2 | 242 | 20712 | 127.23 | 773 | 755 | 156.9 |
| A | 0 | 226 | 6811 | 38.61 | 773 | 755 | 156.9 |
| B | 15 | 222 | 135908 | 919.65 | 783 | 763 | 147.0 |
| B | 0 | 189 | 24024 | 158.29 | 783 | 763 | 147.0 |
| B | 12 | 111 | 17527 | 114.08 | 783 | 763 | 147.0 |
| C | 3 | 233 | 133816 | 756.97 | 750 | 754 | 175.8 |
| C | 14 | 238 | 115603 | 653.36 | 750 | 754 | 175.8 |
| C | 13 | 61 | 5255 | 25.61 | 750 | 754 | 175.8 |
| D | 10 | 70 | 45620 | 245.6 | 753 | 729 | 182.8 |
| D | 2 | 234 | 24926 | 132.38 | 753 | 729 | 182.8 |
| D | 2 | 165 | 22059 | 116.7 | 753 | 729 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

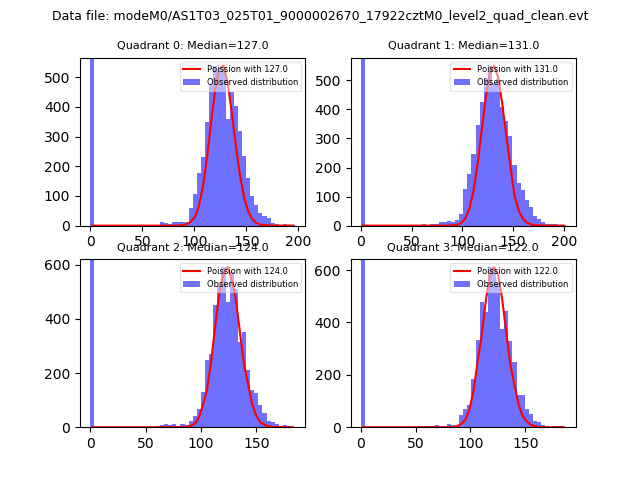

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

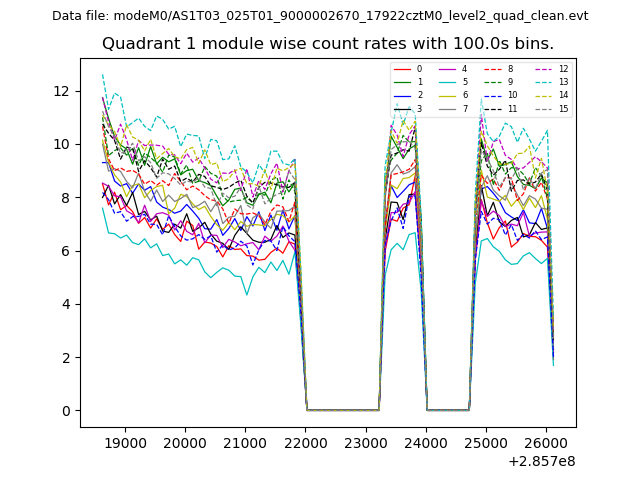

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

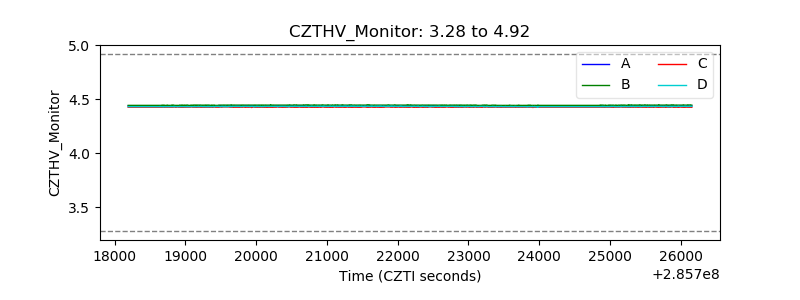

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

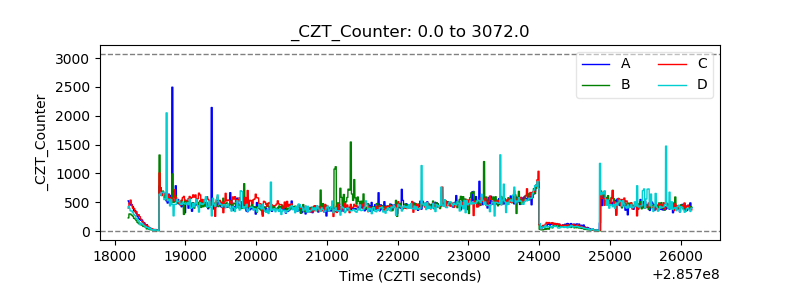

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

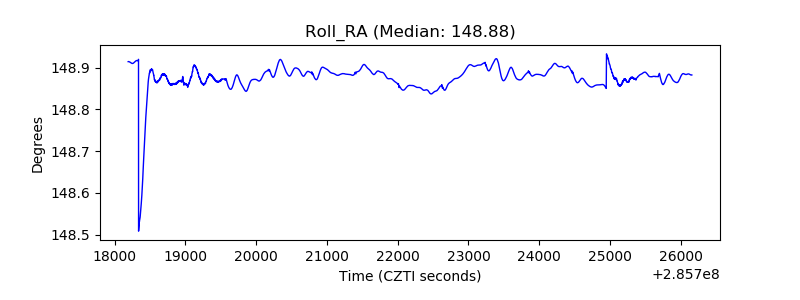

| _Roll_RA |  |

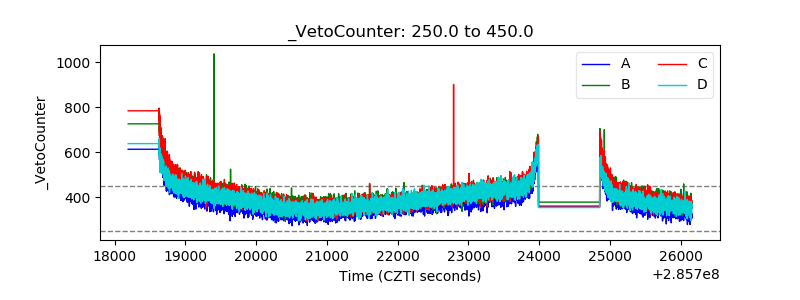

| Veto Counter |  |
