| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17931cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17931cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,357,440 | 90,348,480 |
| Size | 424.7 MB | 86.2 MB |
| Events in quadrant A | 3,186,678 | 582,280 |
| Events in quadrant B | 3,344,466 | 591,635 |
| Events in quadrant C | 3,229,533 | 558,085 |
| Events in quadrant D | 3,287,040 | 552,620 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13803 | 2 |
| B | 0 | 14260 | 2 |
| C | 0 | 13796 | 2 |
| D | 0 | 14177 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6470 | 71 | 1.097372% |
| B | 6470 | 84 | 1.298300% |
| C | 6470 | 97 | 1.499227% |
| D | 6470 | 78 | 1.205564% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6470 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7610 | 6470 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7610 | 6470 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7610 | 6470 | 30 | 30 | 0.39% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 25391 | 149.64 | 820 | 805 | 164.3 |
| A | 0 | 226 | 7145 | 38.59 | 820 | 805 | 164.3 |
| A | 12 | 194 | 6198 | 32.82 | 820 | 805 | 164.3 |
| B | 0 | 189 | 34922 | 223.55 | 815 | 796 | 152.7 |
| B | 4 | 216 | 23743 | 150.32 | 815 | 796 | 152.7 |
| B | 10 | 247 | 20936 | 131.93 | 815 | 796 | 152.7 |
| C | 14 | 238 | 122532 | 670.2 | 784 | 789 | 181.6 |
| C | 3 | 233 | 28573 | 152.95 | 784 | 789 | 181.6 |
| C | 9 | 160 | 11336 | 58.06 | 784 | 789 | 181.6 |
| D | 13 | 232 | 61793 | 317.12 | 798 | 775 | 192.4 |
| D | 10 | 70 | 44763 | 228.61 | 798 | 775 | 192.4 |
| D | 2 | 33 | 43615 | 222.65 | 798 | 775 | 192.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

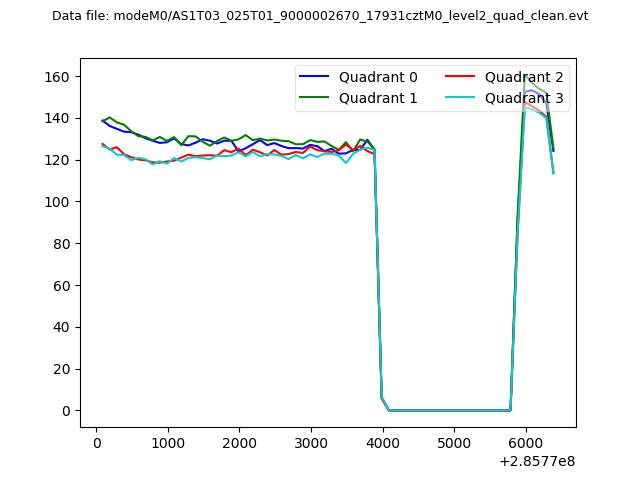

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

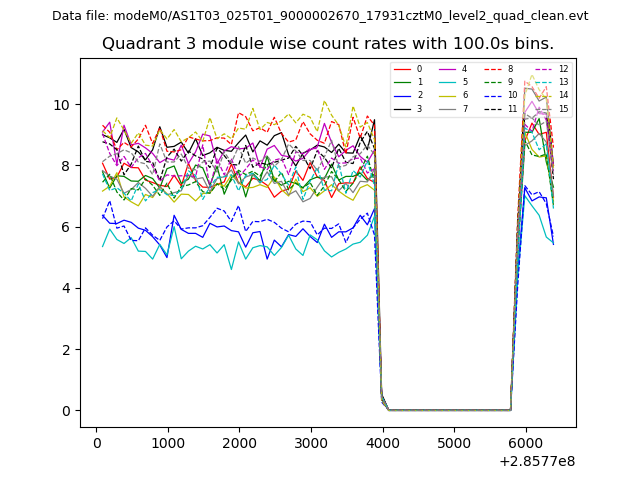

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

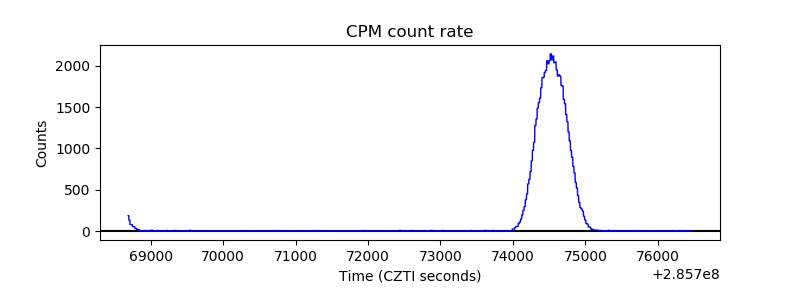

| _CPM_Rate |  |

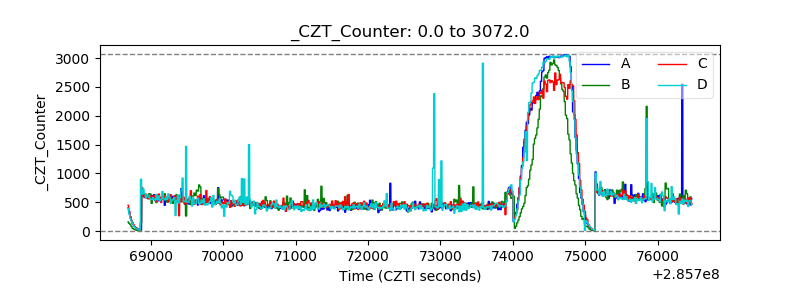

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

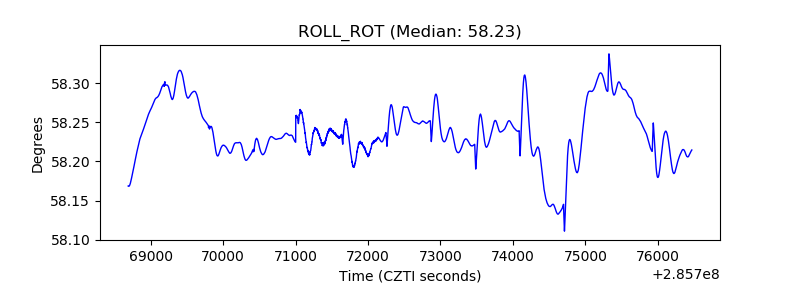

| _ROLL_ROT |  |

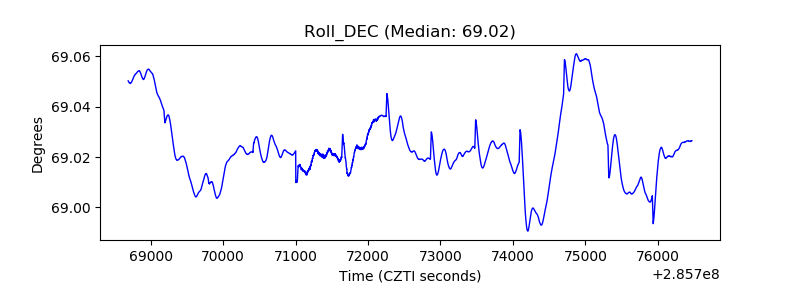

| _Roll_DEC |  |
| _Roll_RA |  |

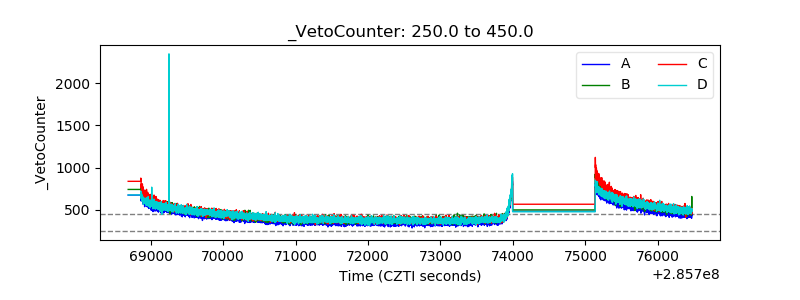

| Veto Counter |  |
