| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17933cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17933cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,500,800 | 125,444,160 |
| Size | 425.8 MB | 119.6 MB |
| Events in quadrant A | 3,073,095 | 852,995 |
| Events in quadrant B | 3,326,880 | 873,876 |
| Events in quadrant C | 3,290,186 | 834,299 |
| Events in quadrant D | 3,423,774 | 818,595 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13160 | 1 |
| B | 0 | 13943 | 1 |
| C | 0 | 13729 | 1 |
| D | 0 | 14293 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6013 | 66 | 1.097622% |
| B | 6013 | 100 | 1.663063% |
| C | 6013 | 136 | 2.261766% |
| D | 6013 | 109 | 1.812739% |

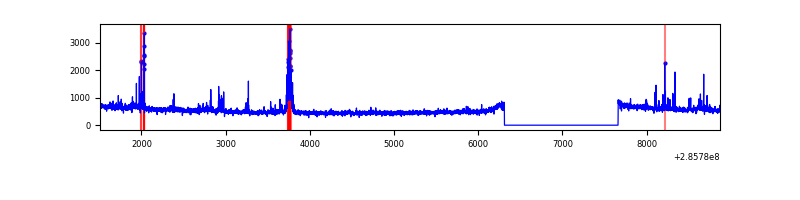

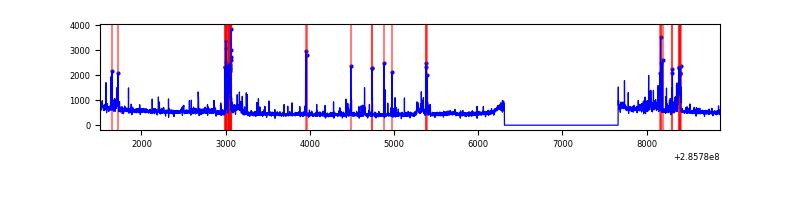

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7363 | 6013 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7363 | 6014 | 25 | 25 | 0.34% | 0.42% |  |
| C | 7363 | 6014 | 24 | 24 | 0.33% | 0.40% |  |
| D | 7363 | 6014 | 48 | 48 | 0.65% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 42028 | 262.76 | 788 | 773 | 157.0 |
| A | 0 | 226 | 6983 | 39.55 | 788 | 773 | 157.0 |
| A | 12 | 194 | 5804 | 32.04 | 788 | 773 | 157.0 |
| B | 4 | 48 | 112493 | 770.1 | 793 | 776 | 145.1 |
| B | 7 | 220 | 35746 | 241.06 | 793 | 776 | 145.1 |
| B | 0 | 197 | 29778 | 199.92 | 793 | 776 | 145.1 |
| C | 14 | 238 | 120356 | 676.58 | 770 | 775 | 176.7 |
| C | 9 | 160 | 50860 | 283.38 | 770 | 775 | 176.7 |
| C | 3 | 233 | 43721 | 242.98 | 770 | 775 | 176.7 |
| D | 7 | 238 | 131980 | 708.08 | 779 | 759 | 185.3 |
| D | 2 | 165 | 73369 | 391.81 | 779 | 759 | 185.3 |
| D | 12 | 110 | 67632 | 360.85 | 779 | 759 | 185.3 |

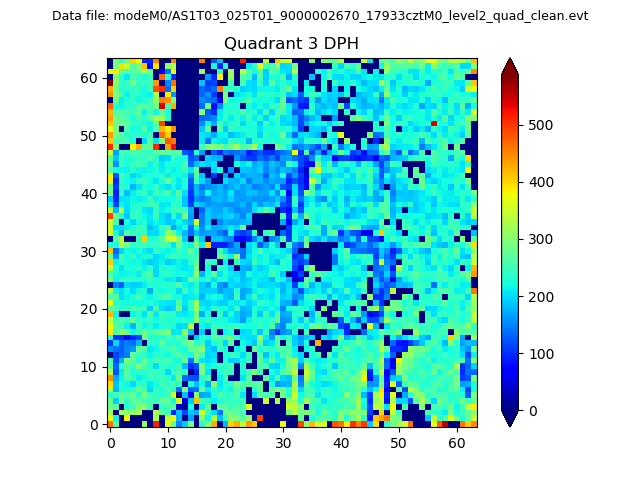

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

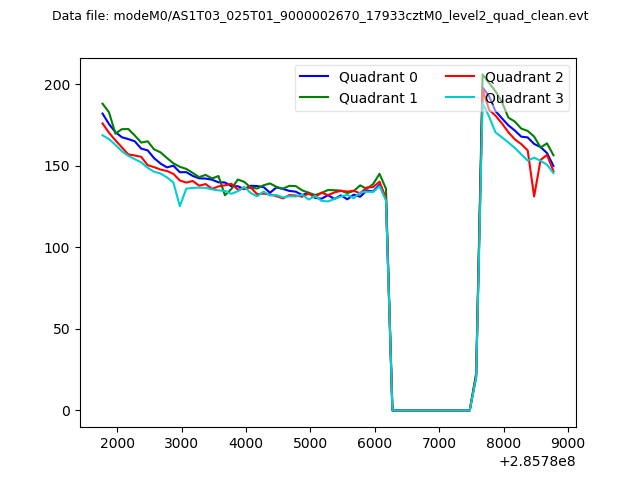

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

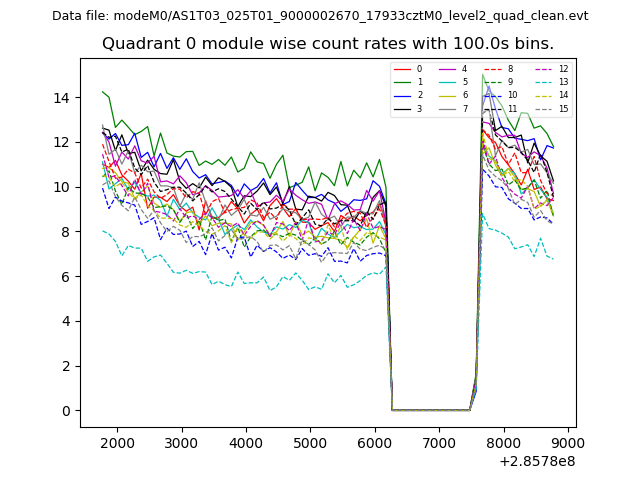

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

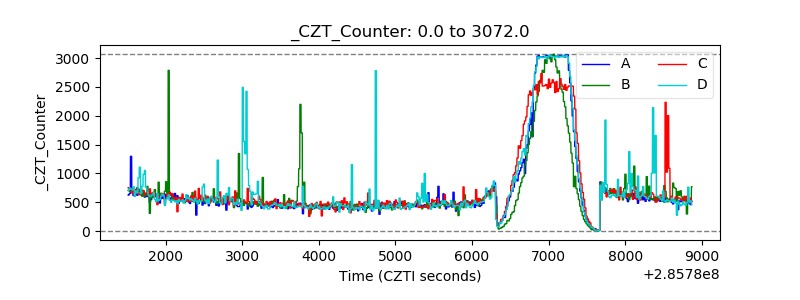

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

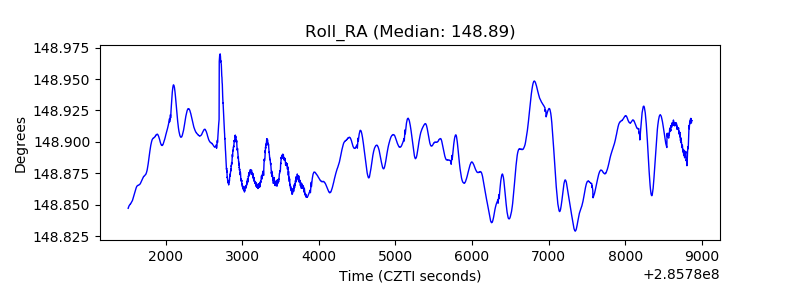

| _Roll_RA |  |
| Veto Counter |  |
