| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17946cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17946cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,991,040 | 96,240,960 |
| Size | 451.1 MB | 91.8 MB |
| Events in quadrant A | 3,305,460 | 633,750 |
| Events in quadrant B | 3,351,253 | 640,987 |
| Events in quadrant C | 3,202,189 | 608,260 |
| Events in quadrant D | 4,043,939 | 598,078 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13908 | 1 |
| B | 0 | 14130 | 1 |
| C | 0 | 13407 | 1 |
| D | 0 | 16245 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6213 | 89 | 1.432480% |
| B | 6214 | 114 | 1.834567% |
| C | 6214 | 110 | 1.770196% |
| D | 6214 | 189 | 3.041519% |

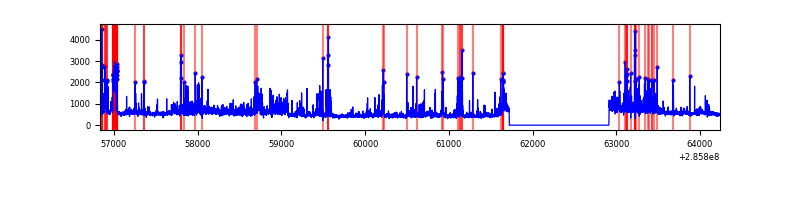

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7403 | 6213 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7404 | 6214 | 21 | 21 | 0.28% | 0.34% |  |
| C | 7404 | 6214 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7404 | 6214 | 104 | 104 | 1.40% | 1.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 229333 | 1435.84 | 798 | 782 | 159.2 |
| A | 4 | 2 | 8699 | 49.74 | 798 | 782 | 159.2 |
| A | 0 | 226 | 7092 | 39.64 | 798 | 782 | 159.2 |
| B | 7 | 220 | 153178 | 1022.02 | 796 | 776 | 149.1 |
| B | 0 | 197 | 52765 | 348.64 | 796 | 776 | 149.1 |
| B | 12 | 111 | 16989 | 108.72 | 796 | 776 | 149.1 |
| C | 14 | 238 | 118788 | 666.04 | 765 | 768 | 177.2 |
| C | 5 | 218 | 56143 | 312.51 | 765 | 768 | 177.2 |
| C | 9 | 54 | 27102 | 148.61 | 765 | 768 | 177.2 |
| D | 5 | 222 | 942059 | 4980.88 | 777 | 754 | 189.0 |
| D | 9 | 64 | 55025 | 287.17 | 777 | 754 | 189.0 |
| D | 7 | 238 | 35226 | 182.41 | 777 | 754 | 189.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

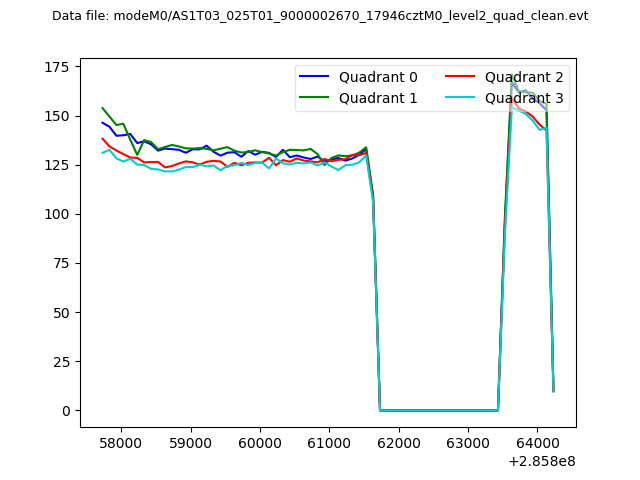

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

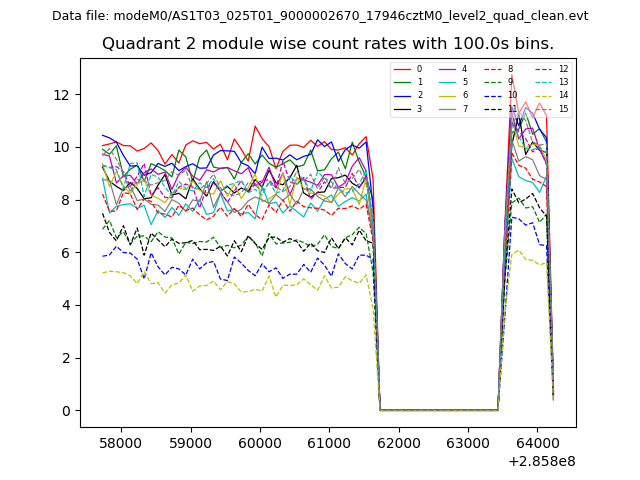

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

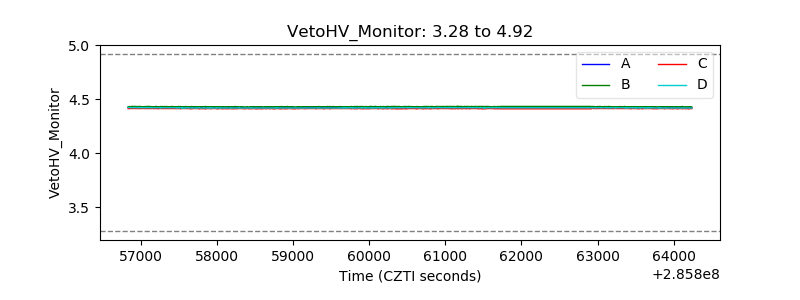

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

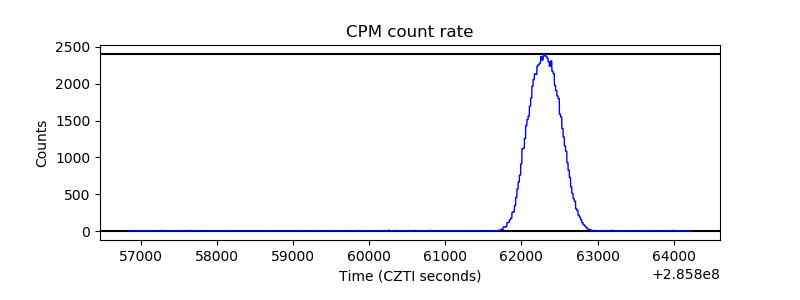

| _CPM_Rate |  |

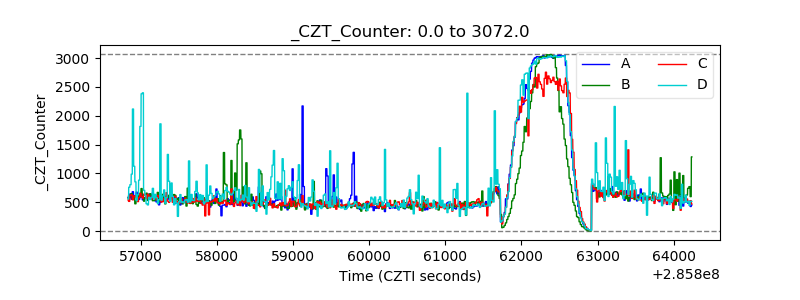

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

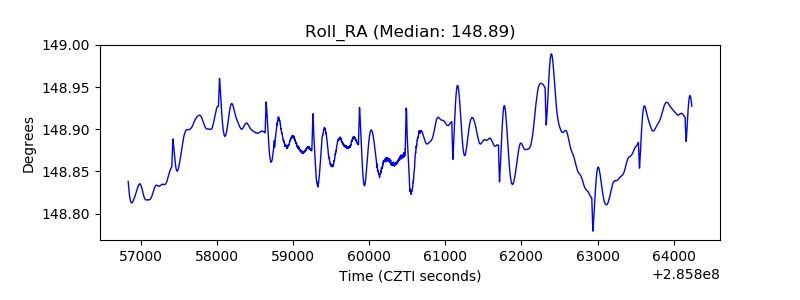

| _Roll_RA |  |

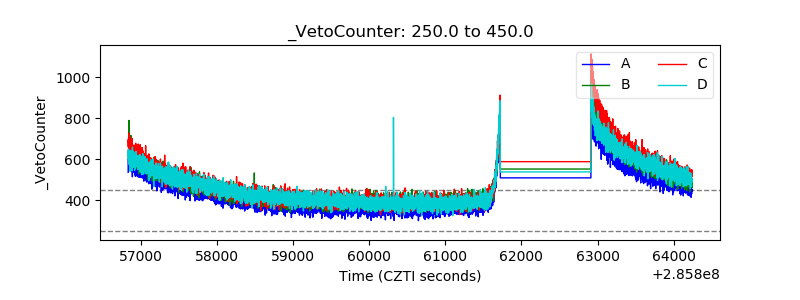

| Veto Counter |  |
