| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17949cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17949cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,321,600 | 118,463,040 |
| Size | 435.2 MB | 113.0 MB |
| Events in quadrant A | 3,865,901 | 775,597 |
| Events in quadrant B | 3,120,653 | 826,388 |
| Events in quadrant C | 3,129,255 | 791,824 |
| Events in quadrant D | 3,290,576 | 769,475 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15450 | 2 |
| B | 0 | 13289 | 2 |
| C | 0 | 13183 | 2 |
| D | 0 | 13832 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6078 | 391 | 6.433037% |
| B | 6079 | 99 | 1.628557% |
| C | 6079 | 127 | 2.089159% |
| D | 6079 | 131 | 2.154960% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7383 | 6079 | 272 | 272 | 3.68% | 4.47% |  |
| B | 7384 | 6080 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7384 | 6080 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7384 | 6080 | 70 | 70 | 0.95% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 953493 | 6301.37 | 756 | 742 | 151.2 |
| A | 0 | 226 | 6592 | 38.69 | 756 | 742 | 151.2 |
| A | 10 | 234 | 5993 | 34.73 | 756 | 742 | 151.2 |
| B | 0 | 197 | 40810 | 275.99 | 780 | 761 | 145.1 |
| B | 12 | 111 | 16163 | 106.14 | 780 | 761 | 145.1 |
| B | 11 | 111 | 13697 | 89.15 | 780 | 761 | 145.1 |
| C | 14 | 238 | 119330 | 675.24 | 761 | 768 | 175.6 |
| C | 3 | 233 | 22179 | 121.94 | 761 | 768 | 175.6 |
| C | 5 | 218 | 14453 | 77.94 | 761 | 768 | 175.6 |
| D | 13 | 168 | 172329 | 933.99 | 762 | 742 | 183.7 |
| D | 5 | 222 | 67919 | 365.66 | 762 | 742 | 183.7 |
| D | 12 | 110 | 43542 | 232.97 | 762 | 742 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

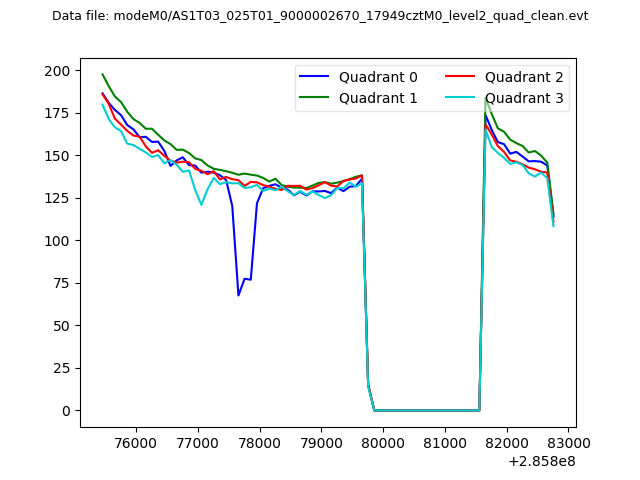

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

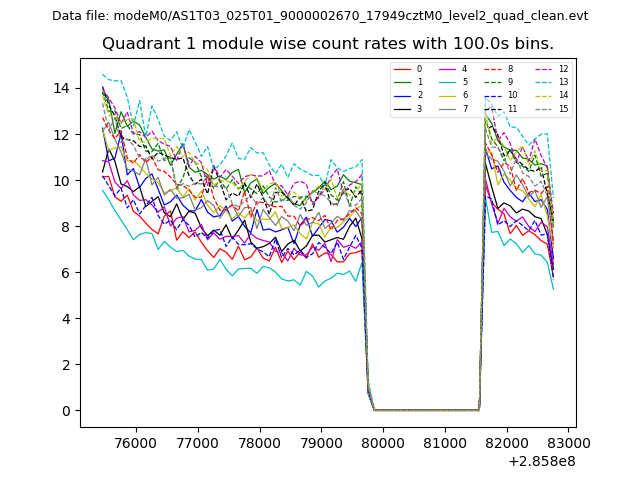

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

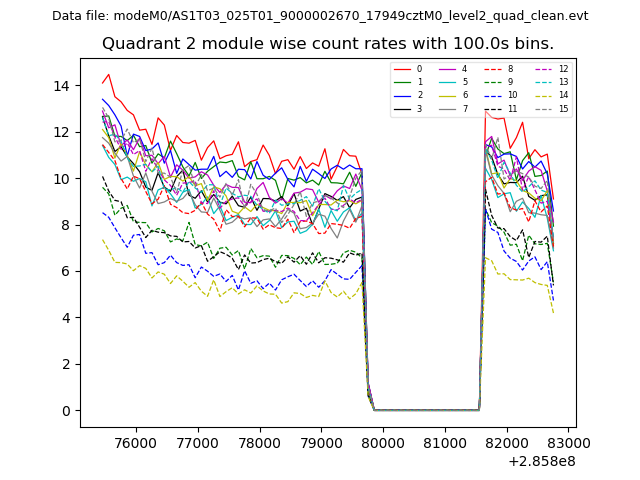

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

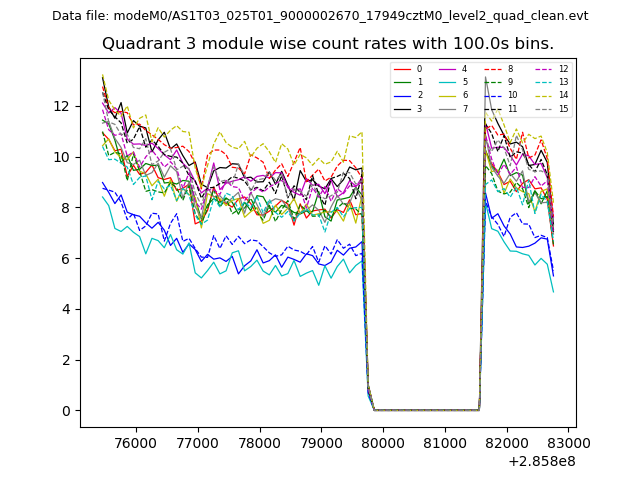

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

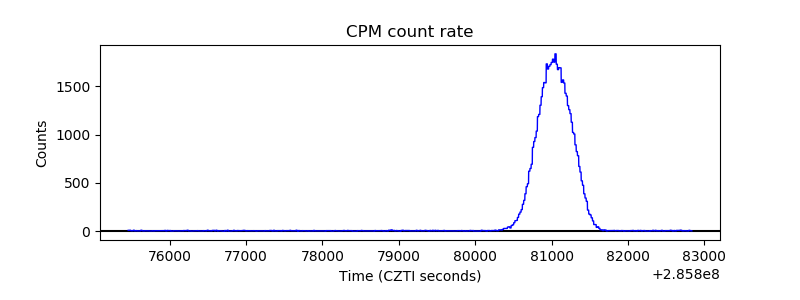

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

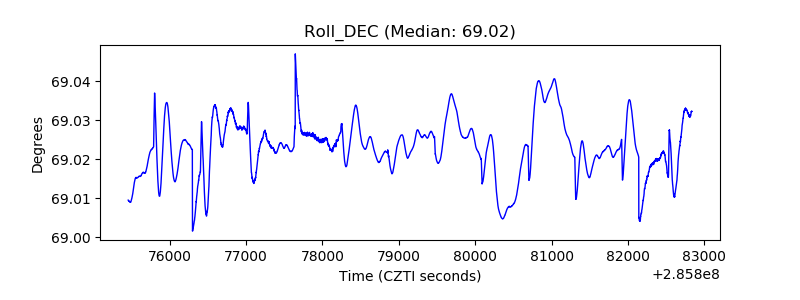

| _Roll_DEC |  |
| _Roll_RA |  |

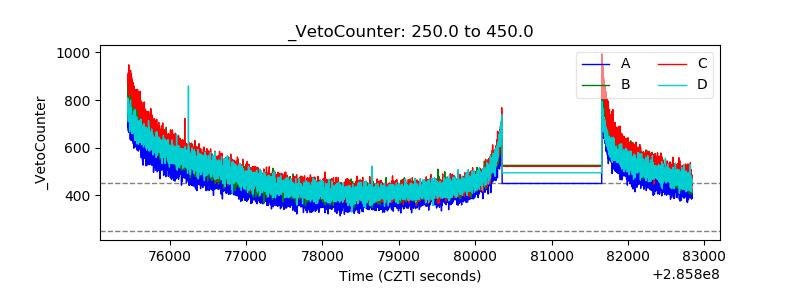

| Veto Counter |  |
