| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17950cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17950cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,670,400 | 110,367,360 |
| Size | 456.5 MB | 105.3 MB |
| Events in quadrant A | 3,370,206 | 715,592 |
| Events in quadrant B | 3,458,533 | 742,643 |
| Events in quadrant C | 3,418,859 | 712,415 |
| Events in quadrant D | 3,784,120 | 695,306 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14544 | 2 |
| B | 0 | 14817 | 2 |
| C | 0 | 14554 | 2 |
| D | 0 | 15902 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6843 | 88 | 1.285986% |
| B | 6843 | 137 | 2.002046% |
| C | 6843 | 176 | 2.571971% |
| D | 6843 | 226 | 3.302645% |

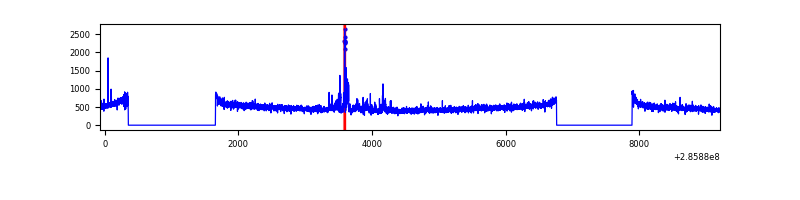

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9278 | 6845 | 8 | 8 | 0.09% | 0.12% |  |
| B | 9278 | 6845 | 4 | 4 | 0.04% | 0.06% |  |
| C | 9278 | 6845 | 4 | 4 | 0.04% | 0.06% |  |
| D | 9278 | 6845 | 87 | 87 | 0.94% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 122023 | 718.64 | 843 | 825 | 168.6 |
| A | 0 | 226 | 7397 | 38.97 | 843 | 825 | 168.6 |
| A | 3 | 137 | 6311 | 32.53 | 843 | 825 | 168.6 |
| B | 0 | 197 | 62050 | 382.78 | 855 | 832 | 159.9 |
| B | 12 | 111 | 18788 | 112.28 | 855 | 832 | 159.9 |
| B | 11 | 111 | 15913 | 94.3 | 855 | 832 | 159.9 |
| C | 14 | 238 | 128649 | 665.54 | 828 | 834 | 192.0 |
| C | 3 | 233 | 21234 | 106.22 | 828 | 834 | 192.0 |
| C | 9 | 54 | 12772 | 62.16 | 828 | 834 | 192.0 |
| D | 5 | 222 | 480579 | 2389.36 | 828 | 804 | 200.8 |
| D | 2 | 234 | 28425 | 137.56 | 828 | 804 | 200.8 |
| D | 7 | 96 | 22798 | 109.53 | 828 | 804 | 200.8 |

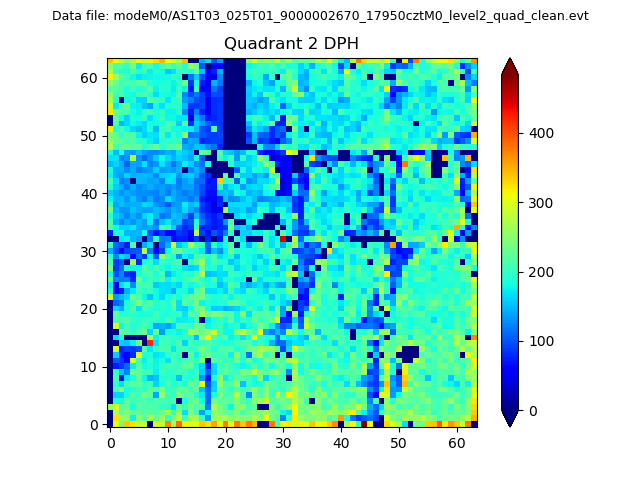

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

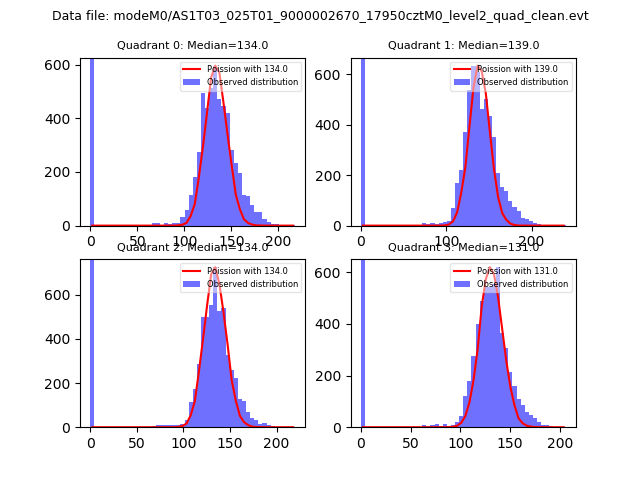

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

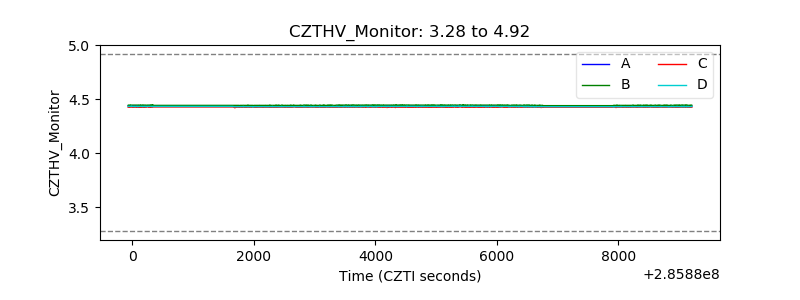

| CZT HV Monitor |  |
| D_VDD |  |

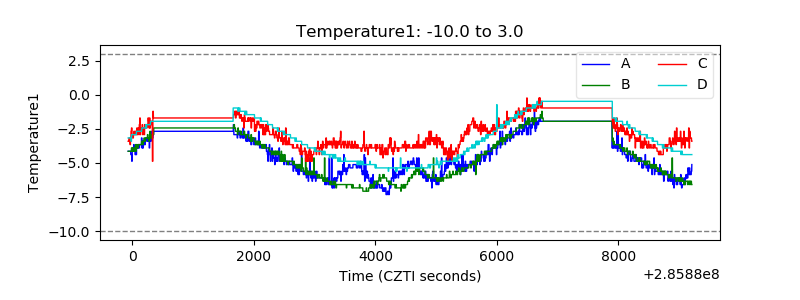

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

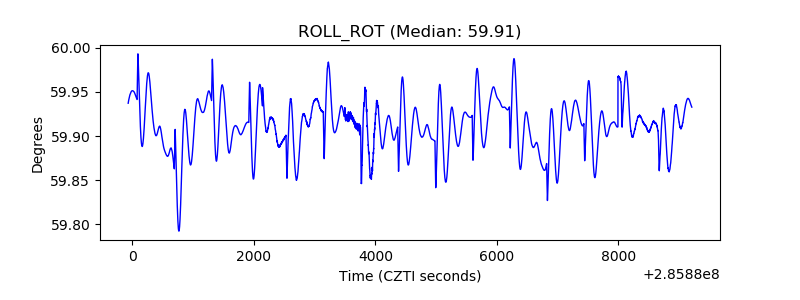

| _ROLL_ROT |  |
| _Roll_DEC |  |

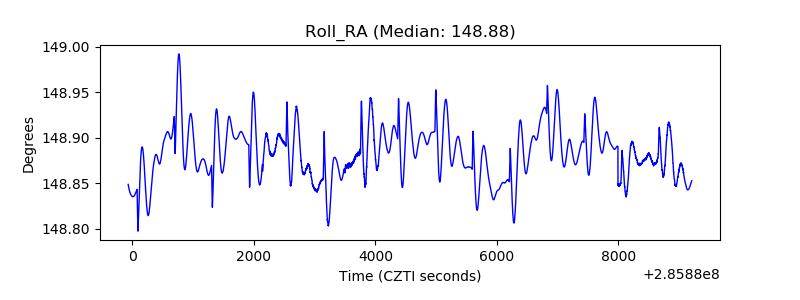

| _Roll_RA |  |

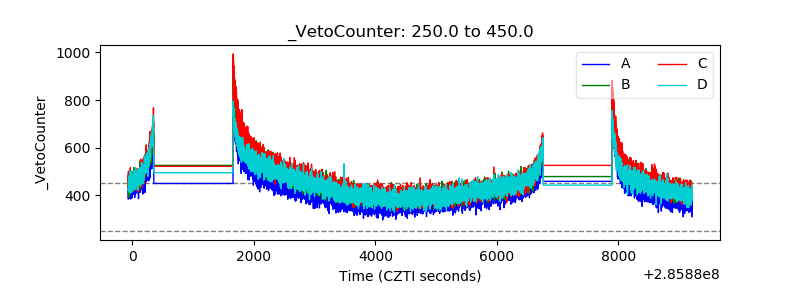

| Veto Counter |  |
