| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_025T01_9000002670_17952cztM0_level2.evt | modeM0/AS1T03_025T01_9000002670_17952cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,923,840 | 111,997,440 |
| Size | 559.7 MB | 106.8 MB |
| Events in quadrant A | 3,267,010 | 749,459 |
| Events in quadrant B | 3,431,762 | 768,158 |
| Events in quadrant C | 4,111,429 | 721,448 |
| Events in quadrant D | 6,470,791 | 645,600 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14945 | 3 |
| B | 0 | 15249 | 2 |
| C | 0 | 17254 | 2 |
| D | 0 | 24262 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7278 | 16 | 0.219841% |
| B | 7278 | 42 | 0.577082% |
| C | 7278 | 358 | 4.918934% |
| D | 7278 | 1020 | 14.014839% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7723 | 7279 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7723 | 7279 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7723 | 7279 | 168 | 168 | 2.18% | 2.31% |  |
| D | 7723 | 7279 | 835 | 835 | 10.81% | 11.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 14144 | 78.08 | 846 | 827 | 170.6 |
| A | 0 | 226 | 7031 | 36.37 | 846 | 827 | 170.6 |
| A | 3 | 137 | 6415 | 32.76 | 846 | 827 | 170.6 |
| B | 0 | 197 | 26966 | 161.05 | 855 | 833 | 162.3 |
| B | 0 | 190 | 24283 | 144.51 | 855 | 833 | 162.3 |
| B | 4 | 48 | 19842 | 117.14 | 855 | 833 | 162.3 |
| C | 9 | 160 | 488824 | 2539.01 | 816 | 820 | 192.2 |
| C | 9 | 176 | 286112 | 1484.33 | 816 | 820 | 192.2 |
| C | 14 | 238 | 126275 | 652.72 | 816 | 820 | 192.2 |
| D | 5 | 222 | 3199677 | 17264.57 | 762 | 739 | 185.3 |
| D | 13 | 168 | 85554 | 457.74 | 762 | 739 | 185.3 |
| D | 9 | 64 | 72074 | 384.99 | 762 | 739 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

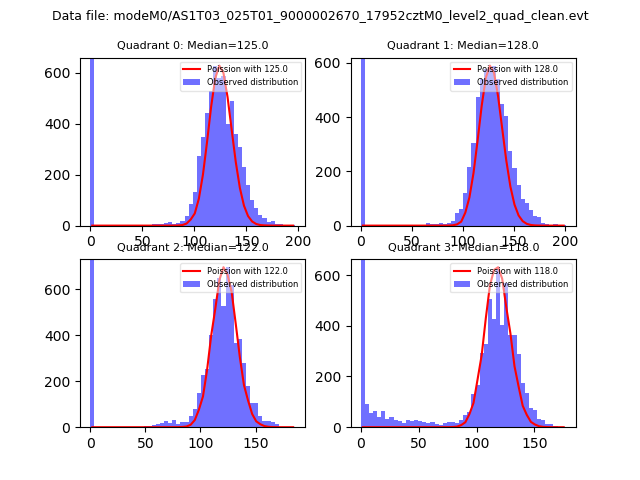

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
