| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002672_17960cztM0_level2.evt | modeM0/AS1A05_019T01_9000002672_17960cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,904,000 | 105,641,280 |
| Size | 452.0 MB | 100.7 MB |
| Events in quadrant A | 3,259,314 | 707,506 |
| Events in quadrant B | 3,486,665 | 705,690 |
| Events in quadrant C | 3,280,148 | 667,488 |
| Events in quadrant D | 3,882,692 | 663,772 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14031 | 2 |
| B | 0 | 14559 | 2 |
| C | 0 | 13852 | 2 |
| D | 0 | 15740 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 118 | 1.808429% |
| B | 6525 | 129 | 1.977011% |
| C | 6525 | 124 | 1.900383% |
| D | 6526 | 158 | 2.421085% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

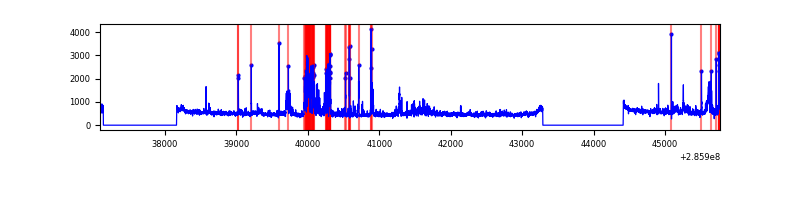

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8675 | 6527 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8675 | 6527 | 8 | 8 | 0.09% | 0.12% |  |
| C | 8675 | 6527 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8676 | 6527 | 74 | 74 | 0.85% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 17169 | 96.15 | 843 | 824 | 170.0 |
| A | 0 | 226 | 7507 | 39.31 | 843 | 824 | 170.0 |
| A | 12 | 194 | 6314 | 32.3 | 843 | 824 | 170.0 |
| B | 7 | 220 | 118253 | 747.3 | 831 | 812 | 157.2 |
| B | 4 | 48 | 48121 | 301.03 | 831 | 812 | 157.2 |
| B | 12 | 111 | 18155 | 110.35 | 831 | 812 | 157.2 |
| C | 14 | 238 | 123128 | 660.32 | 793 | 798 | 185.3 |
| C | 3 | 233 | 40291 | 213.18 | 793 | 798 | 185.3 |
| C | 9 | 160 | 17918 | 92.41 | 793 | 798 | 185.3 |
| D | 5 | 222 | 476143 | 2420.77 | 816 | 794 | 196.4 |
| D | 7 | 38 | 118532 | 599.59 | 816 | 794 | 196.4 |
| D | 7 | 238 | 49756 | 249.34 | 816 | 794 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

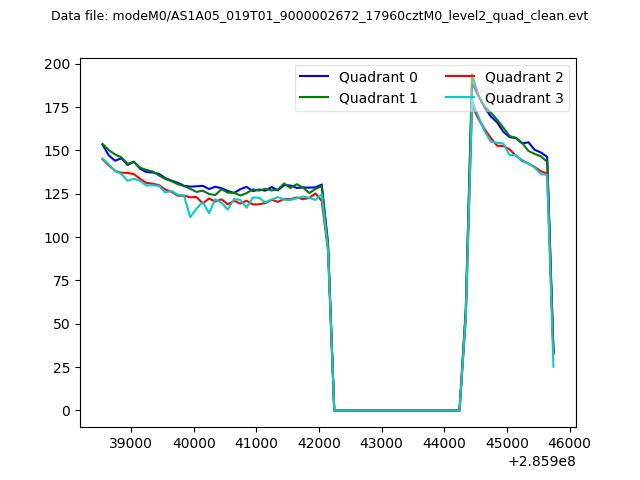

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

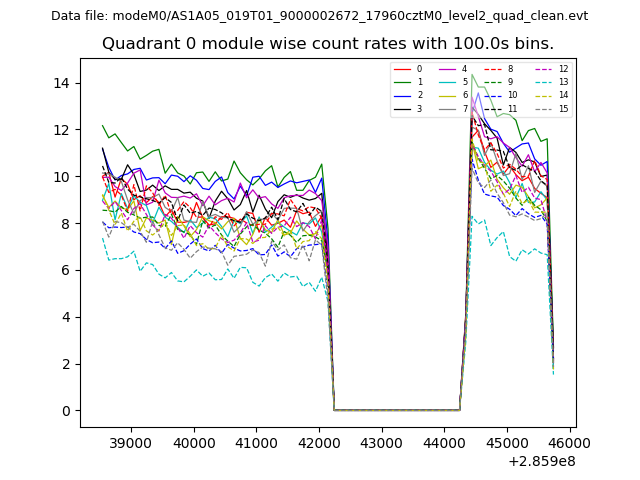

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

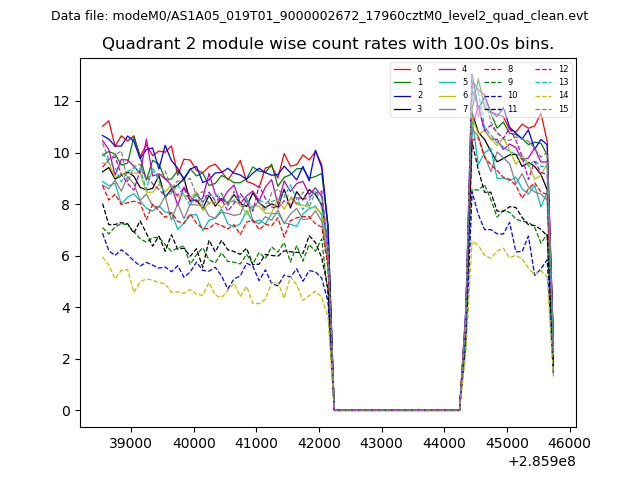

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

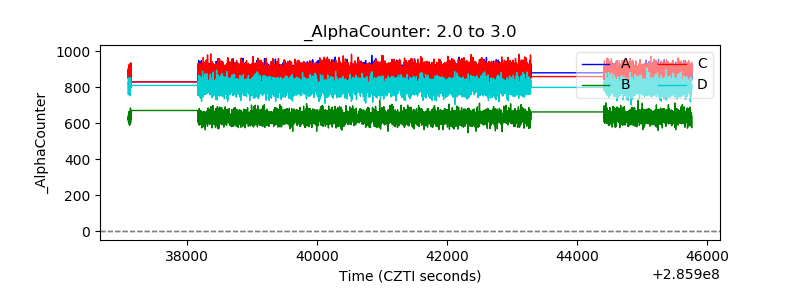

| Alpha Counter |  |
| _CPM_Rate |  |

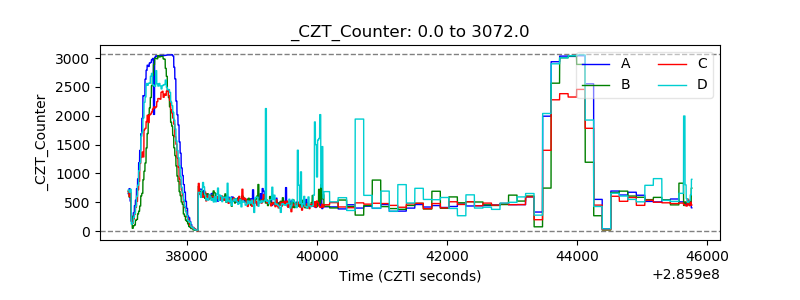

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

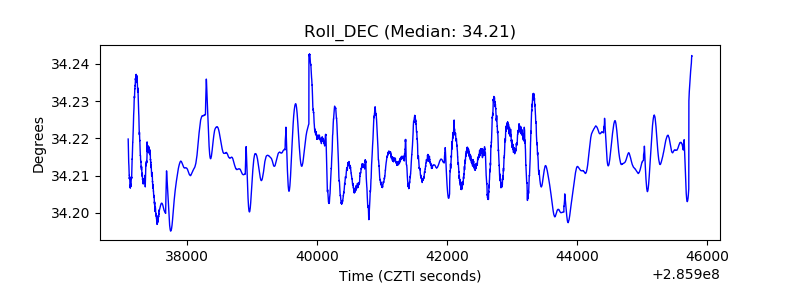

| _Roll_DEC |  |
| _Roll_RA |  |

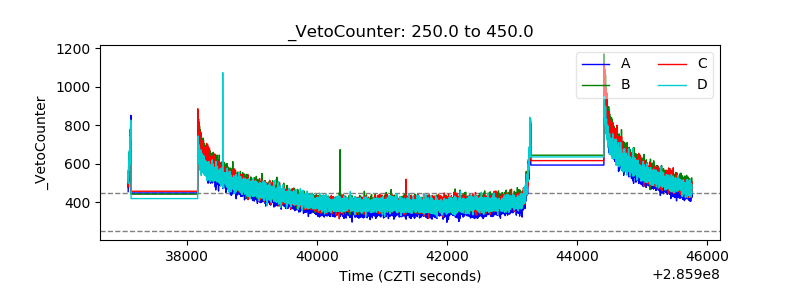

| Veto Counter |  |
