| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002672_17965cztM0_level2.evt | modeM0/AS1A05_019T01_9000002672_17965cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,888,640 | 92,165,760 |
| Size | 423.3 MB | 87.9 MB |
| Events in quadrant A | 3,226,325 | 591,139 |
| Events in quadrant B | 3,267,556 | 601,862 |
| Events in quadrant C | 3,172,549 | 574,672 |
| Events in quadrant D | 3,328,785 | 564,024 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13991 | 2 |
| B | 0 | 13920 | 2 |
| C | 0 | 13526 | 2 |
| D | 0 | 14380 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6589 | 45 | 0.682956% |
| B | 6588 | 53 | 0.804493% |
| C | 6588 | 60 | 0.910747% |
| D | 6588 | 47 | 0.713418% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

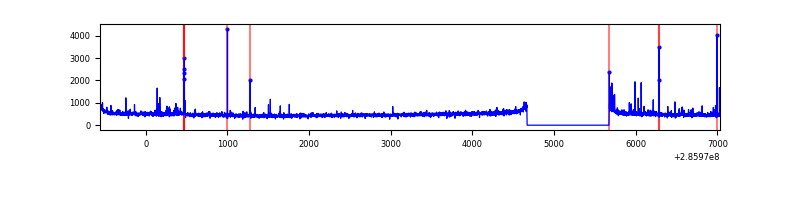

| A | 7594 | 6590 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7593 | 6589 | 10 | 10 | 0.13% | 0.15% |  |

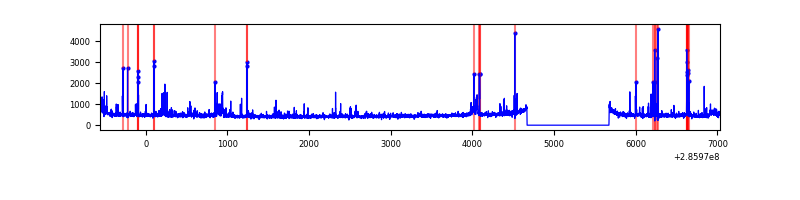

| C | 7593 | 6589 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7593 | 6589 | 28 | 28 | 0.37% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 127031 | 789.42 | 792 | 775 | 159.9 |
| A | 15 | 174 | 54795 | 337.76 | 792 | 775 | 159.9 |
| A | 0 | 226 | 6833 | 37.88 | 792 | 775 | 159.9 |
| B | 7 | 220 | 33301 | 212.51 | 797 | 776 | 153.0 |
| B | 5 | 172 | 26574 | 168.56 | 797 | 776 | 153.0 |
| B | 0 | 197 | 22376 | 141.13 | 797 | 776 | 153.0 |
| C | 14 | 238 | 118021 | 650.83 | 769 | 775 | 180.1 |
| C | 3 | 233 | 54747 | 299.6 | 769 | 775 | 180.1 |
| C | 13 | 61 | 5440 | 25.9 | 769 | 775 | 180.1 |
| D | 13 | 249 | 61798 | 323.53 | 775 | 753 | 188.7 |
| D | 2 | 165 | 60468 | 316.48 | 775 | 753 | 188.7 |
| D | 5 | 222 | 51811 | 270.6 | 775 | 753 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

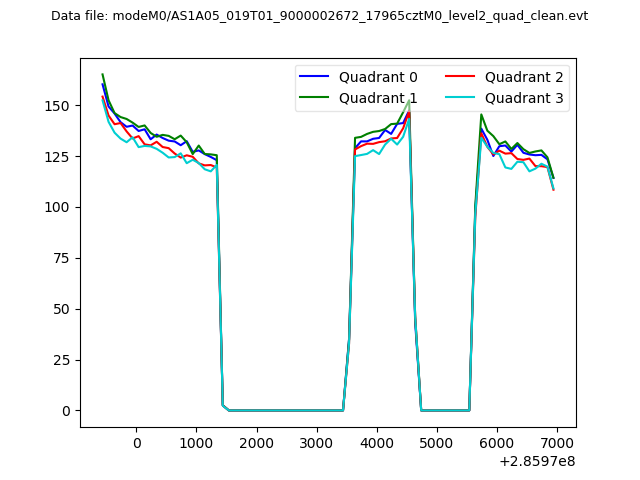

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

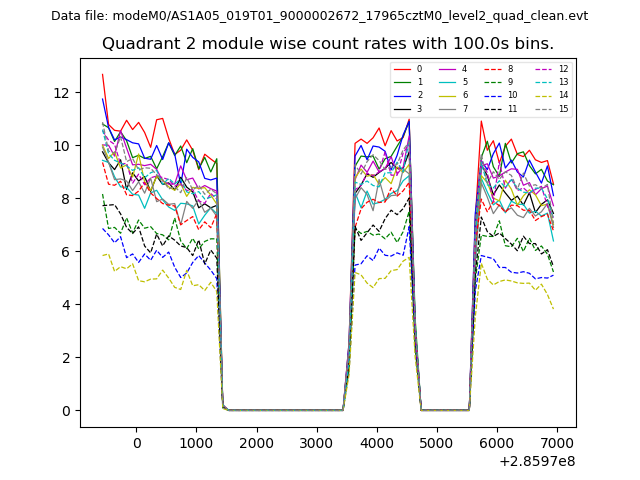

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

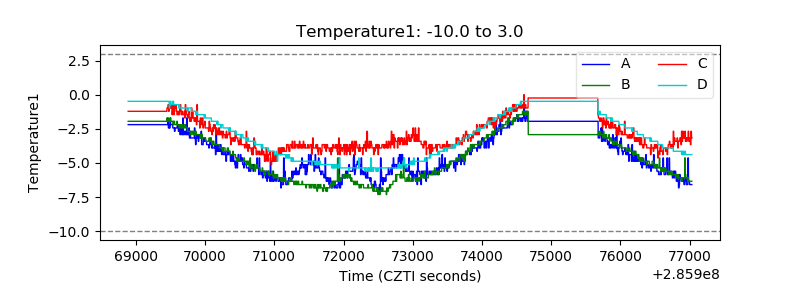

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

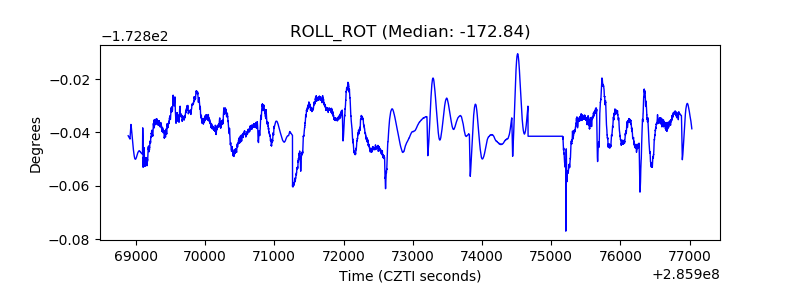

| _ROLL_ROT |  |

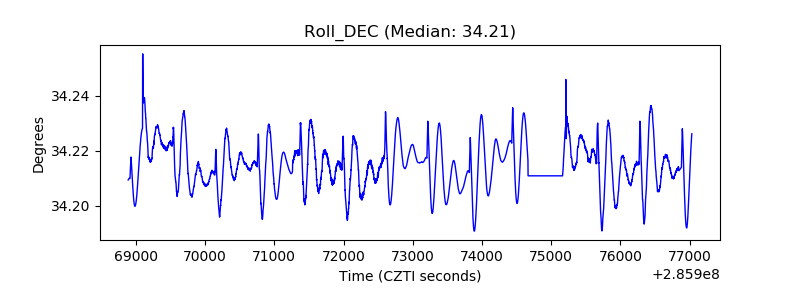

| _Roll_DEC |  |
| _Roll_RA |  |

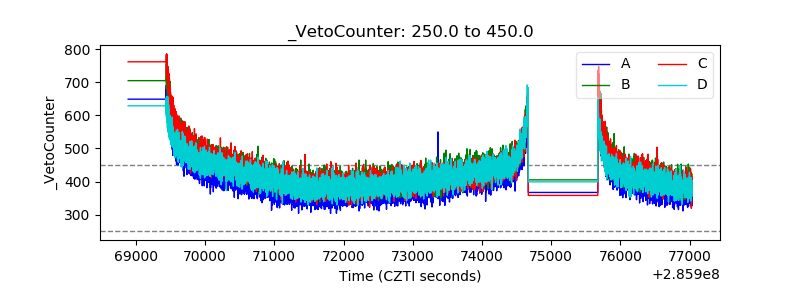

| Veto Counter |  |
