| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002672_17966cztM0_level2.evt | modeM0/AS1A05_019T01_9000002672_17966cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,038,720 | 94,841,280 |
| Size | 453.0 MB | 90.4 MB |
| Events in quadrant A | 3,397,026 | 603,825 |
| Events in quadrant B | 3,498,087 | 611,363 |
| Events in quadrant C | 3,358,187 | 588,242 |
| Events in quadrant D | 3,657,914 | 581,477 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14808 | 2 |
| B | 0 | 14965 | 2 |
| C | 0 | 14574 | 2 |
| D | 0 | 15671 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6995 | 82 | 1.172266% |
| B | 6995 | 92 | 1.315225% |
| C | 6995 | 65 | 0.929235% |
| D | 6994 | 111 | 1.587075% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

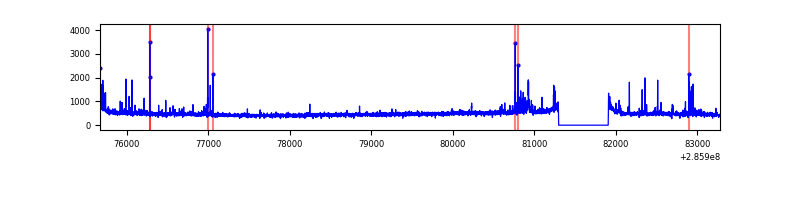

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7605 | 6996 | 25 | 25 | 0.33% | 0.36% |  |
| B | 7605 | 6996 | 8 | 8 | 0.11% | 0.11% |  |
| C | 7605 | 6996 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7604 | 6995 | 90 | 90 | 1.18% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 108865 | 640.45 | 832 | 813 | 168.7 |
| A | 14 | 237 | 89862 | 527.81 | 832 | 813 | 168.7 |
| A | 0 | 226 | 7095 | 37.23 | 832 | 813 | 168.7 |
| B | 7 | 220 | 60722 | 372.56 | 835 | 812 | 160.8 |
| B | 4 | 80 | 36984 | 224.94 | 835 | 812 | 160.8 |
| B | 5 | 172 | 35735 | 217.17 | 835 | 812 | 160.8 |
| C | 14 | 238 | 122660 | 637.41 | 806 | 811 | 191.2 |
| C | 3 | 233 | 90778 | 470.63 | 806 | 811 | 191.2 |
| C | 13 | 61 | 5806 | 26.13 | 806 | 811 | 191.2 |
| D | 13 | 170 | 226235 | 1137.49 | 811 | 785 | 198.2 |
| D | 5 | 222 | 154011 | 773.09 | 811 | 785 | 198.2 |
| D | 7 | 38 | 30200 | 148.41 | 811 | 785 | 198.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

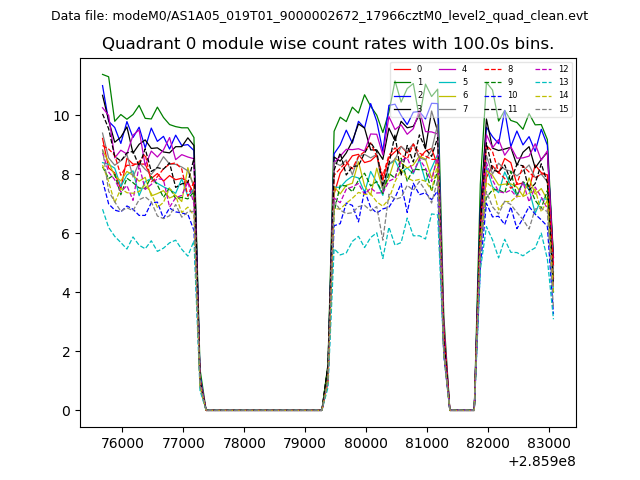

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

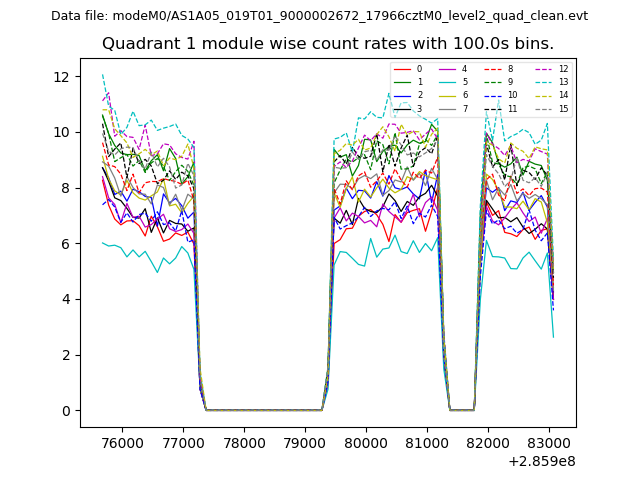

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

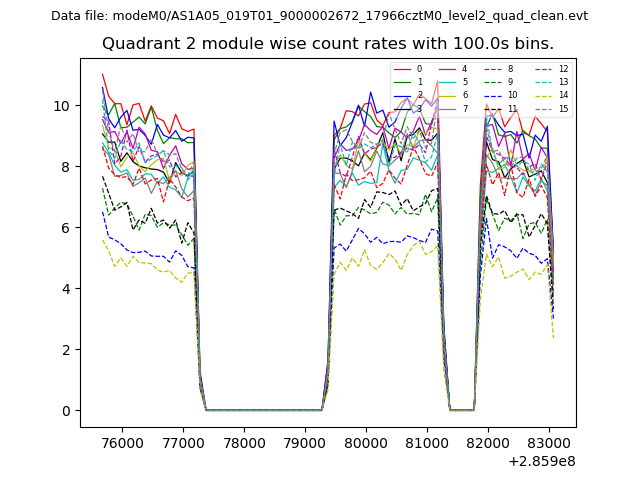

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

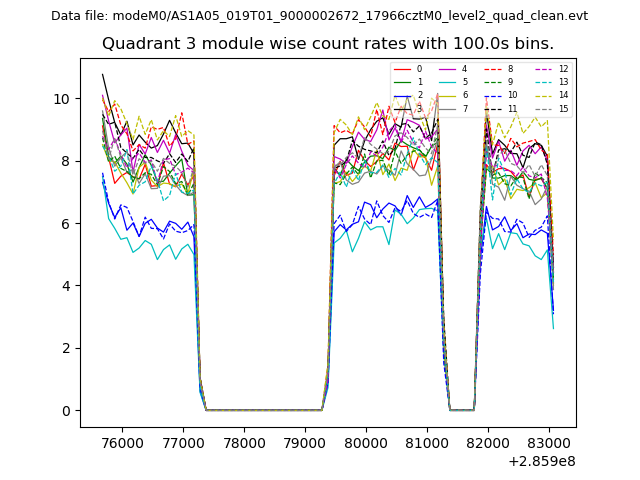

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

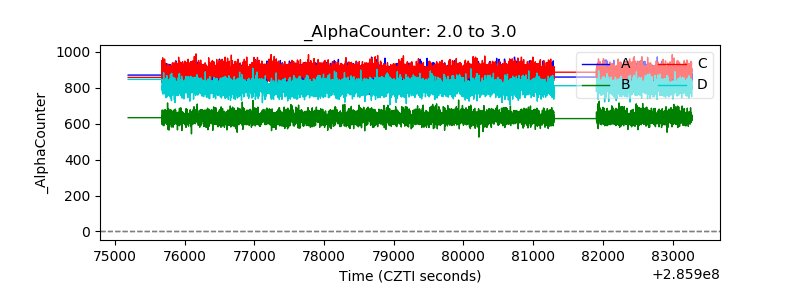

| Alpha Counter |  |
| _CPM_Rate |  |

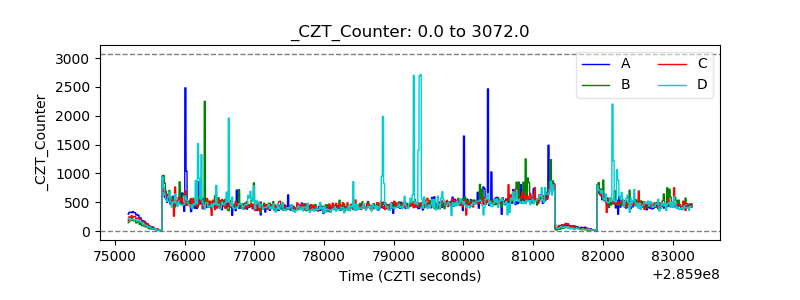

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

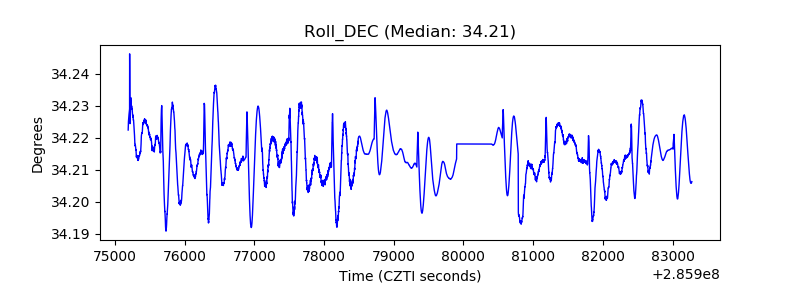

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
