| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002672_17972cztM0_level2.evt | modeM0/AS1A05_019T01_9000002672_17972cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,346,560 | 84,208,320 |
| Size | 535.3 MB | 80.3 MB |
| Events in quadrant A | 3,446,933 | 541,872 |
| Events in quadrant B | 3,417,411 | 548,720 |
| Events in quadrant C | 3,452,436 | 523,261 |
| Events in quadrant D | 6,225,489 | 464,952 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14528 | 2 |
| B | 0 | 14372 | 2 |
| C | 0 | 14267 | 2 |
| D | 0 | 22999 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6754 | 72 | 1.066035% |
| B | 6754 | 88 | 1.302932% |
| C | 6754 | 100 | 1.480604% |
| D | 6753 | 845 | 12.512957% |

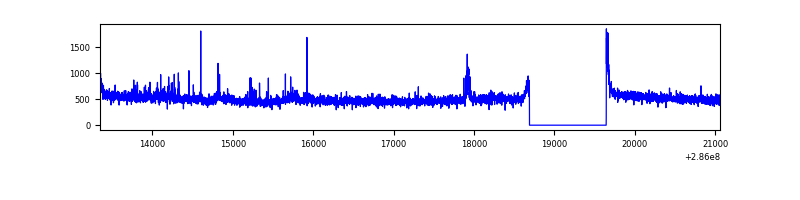

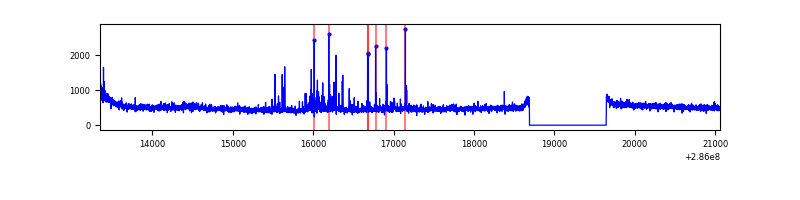

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7709 | 6755 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7709 | 6755 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7709 | 6755 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7708 | 6754 | 709 | 709 | 9.20% | 10.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 122051 | 715.83 | 834 | 815 | 169.4 |
| A | 15 | 174 | 119152 | 698.71 | 834 | 815 | 169.4 |
| A | 0 | 226 | 7218 | 37.8 | 834 | 815 | 169.4 |
| B | 0 | 85 | 56004 | 347.23 | 830 | 809 | 159.0 |
| B | 0 | 197 | 48948 | 302.85 | 830 | 809 | 159.0 |
| B | 7 | 220 | 40807 | 251.63 | 830 | 809 | 159.0 |
| C | 3 | 233 | 191040 | 1030.42 | 791 | 796 | 184.6 |
| C | 14 | 238 | 122673 | 660.12 | 791 | 796 | 184.6 |
| C | 9 | 160 | 29789 | 157.03 | 791 | 796 | 184.6 |
| D | 7 | 238 | 1749781 | 9505.16 | 760 | 737 | 184.0 |
| D | 5 | 222 | 1117928 | 6071.36 | 760 | 737 | 184.0 |
| D | 11 | 176 | 395590 | 2145.82 | 760 | 737 | 184.0 |

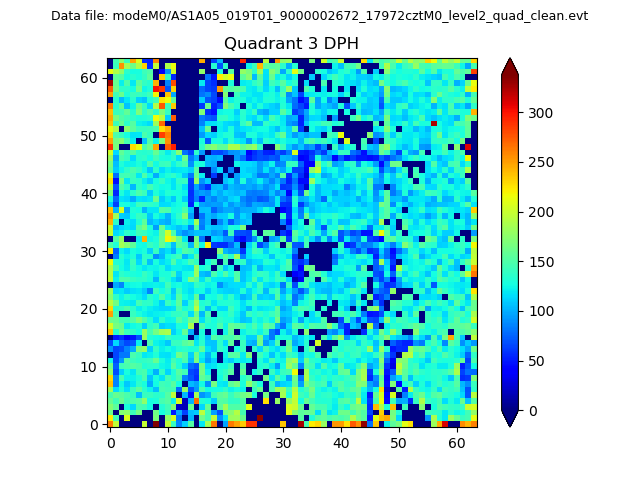

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

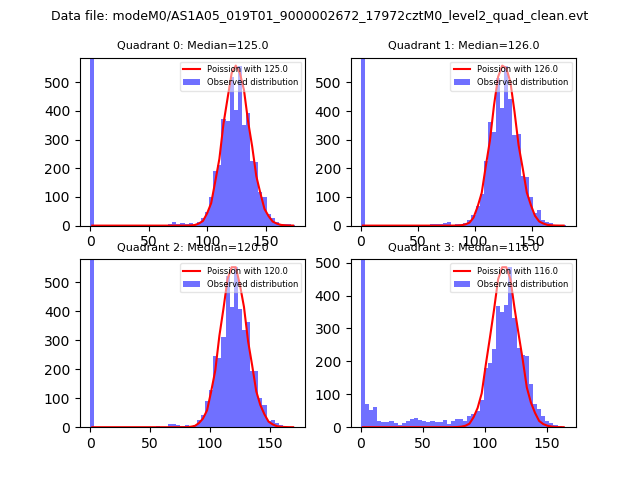

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

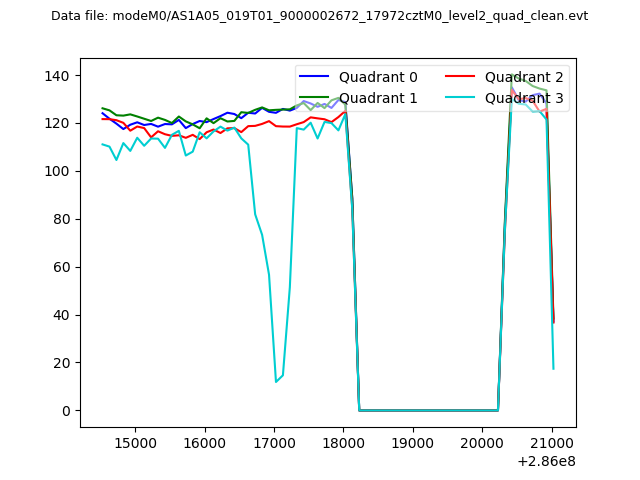

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

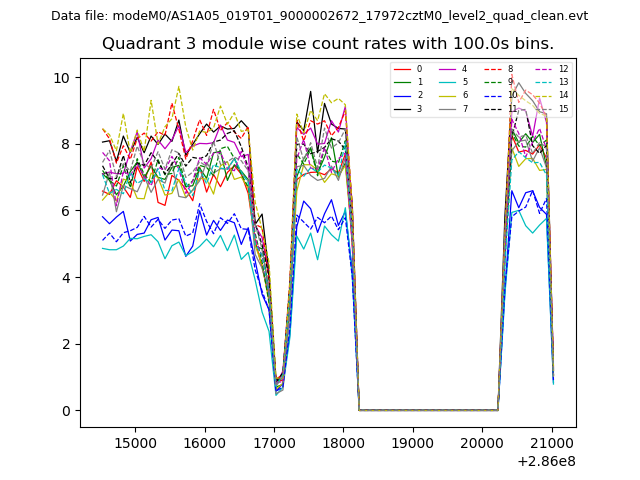

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

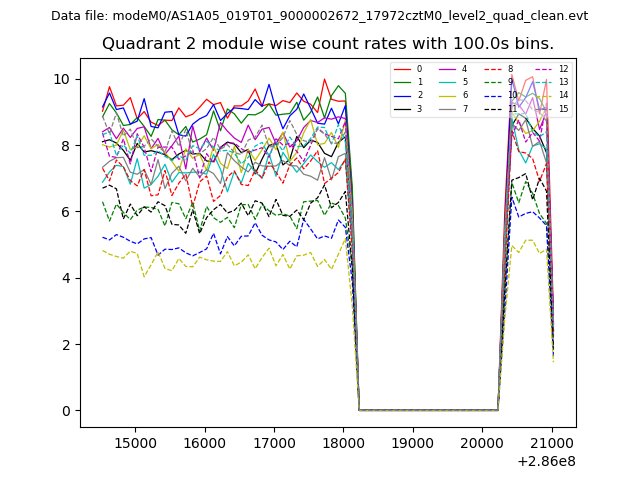

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

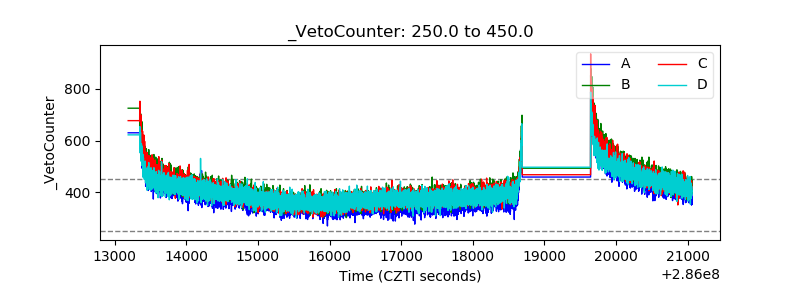

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
