| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002672_17974cztM0_level2.evt | modeM0/AS1A05_019T01_9000002672_17974cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,201,280 | 94,965,120 |
| Size | 468.4 MB | 90.6 MB |
| Events in quadrant A | 3,385,320 | 621,238 |
| Events in quadrant B | 3,452,700 | 624,346 |
| Events in quadrant C | 3,262,429 | 594,725 |
| Events in quadrant D | 4,333,113 | 581,072 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14314 | 2 |
| B | 0 | 14337 | 2 |
| C | 0 | 13738 | 2 |
| D | 0 | 17181 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 93 | 1.426818% |
| B | 6518 | 114 | 1.749003% |
| C | 6518 | 110 | 1.687634% |
| D | 6518 | 340 | 5.216324% |

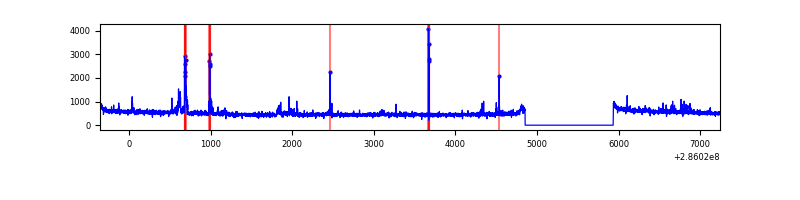

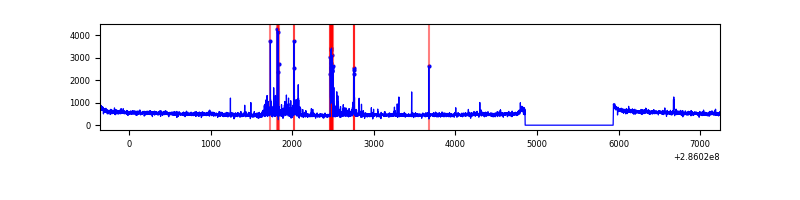

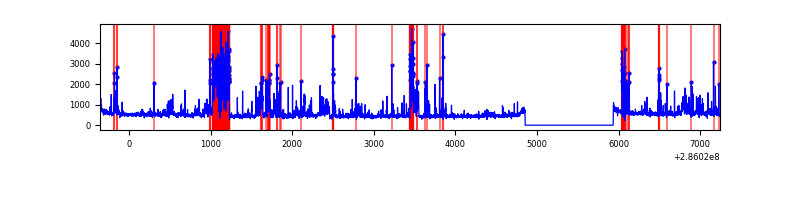

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

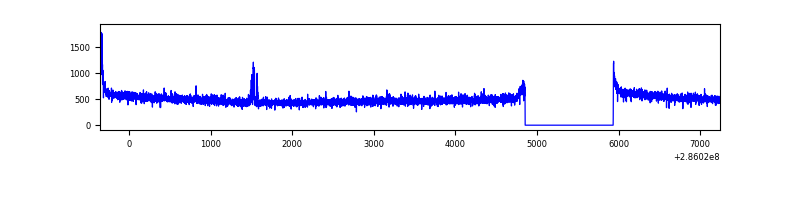

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7598 | 6519 | 15 | 15 | 0.20% | 0.23% |  |
| B | 7598 | 6518 | 26 | 26 | 0.34% | 0.40% |  |
| C | 7598 | 6518 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7598 | 6518 | 237 | 237 | 3.12% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 127312 | 756.08 | 829 | 813 | 167.3 |
| A | 14 | 237 | 67551 | 398.89 | 829 | 813 | 167.3 |
| A | 0 | 226 | 7239 | 38.41 | 829 | 813 | 167.3 |
| B | 7 | 220 | 161224 | 1012.8 | 821 | 800 | 158.4 |
| B | 0 | 197 | 22591 | 137.57 | 821 | 800 | 158.4 |
| B | 12 | 111 | 18246 | 110.14 | 821 | 800 | 158.4 |
| C | 14 | 238 | 123541 | 676.83 | 780 | 785 | 181.4 |
| C | 3 | 233 | 65998 | 359.56 | 780 | 785 | 181.4 |
| C | 8 | 208 | 21686 | 115.24 | 780 | 785 | 181.4 |
| D | 7 | 238 | 758646 | 3714.24 | 784 | 764 | 204.0 |
| D | 11 | 176 | 261893 | 1279.75 | 784 | 764 | 204.0 |
| D | 7 | 38 | 143926 | 701.61 | 784 | 764 | 204.0 |

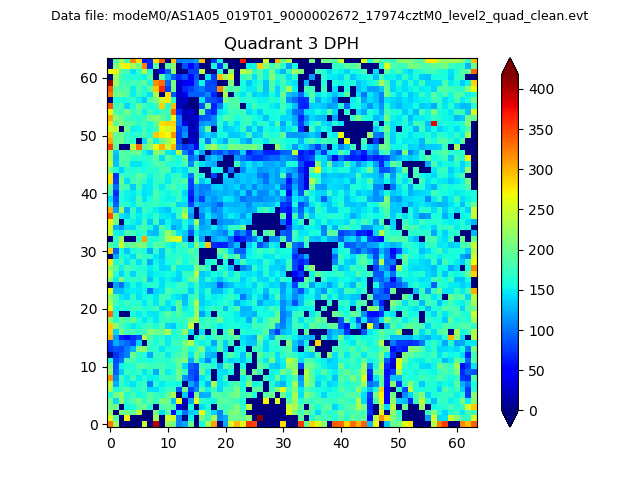

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

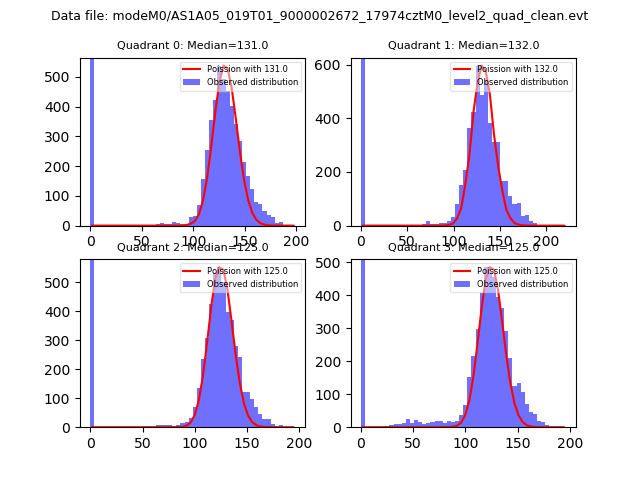

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

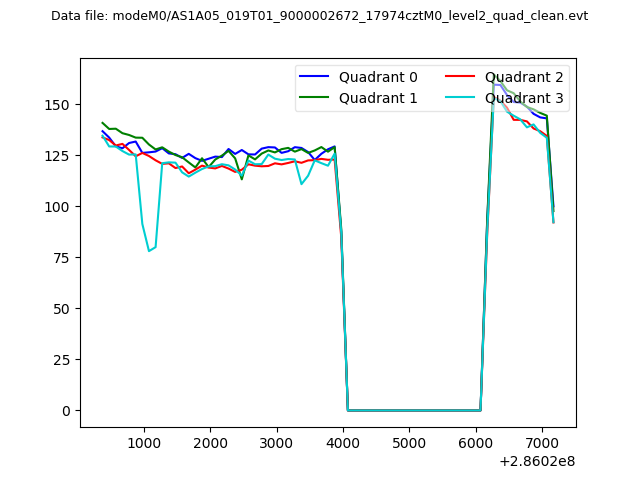

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

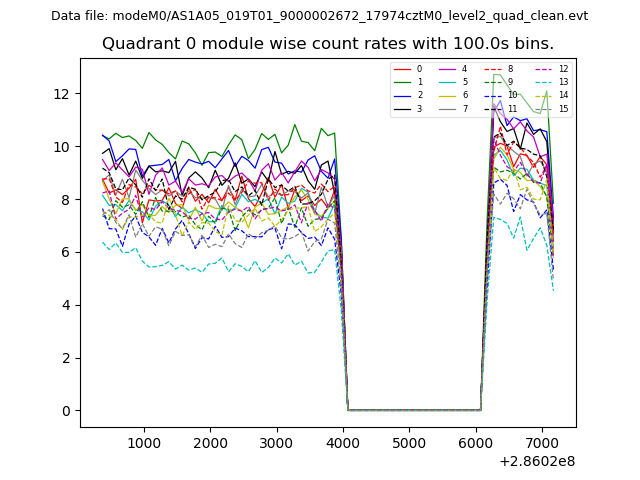

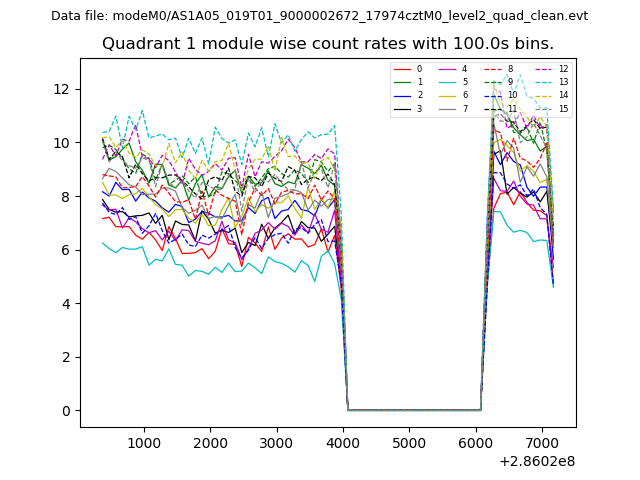

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

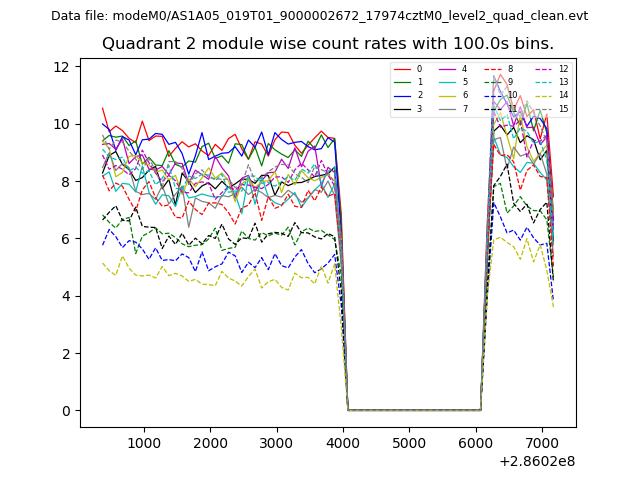

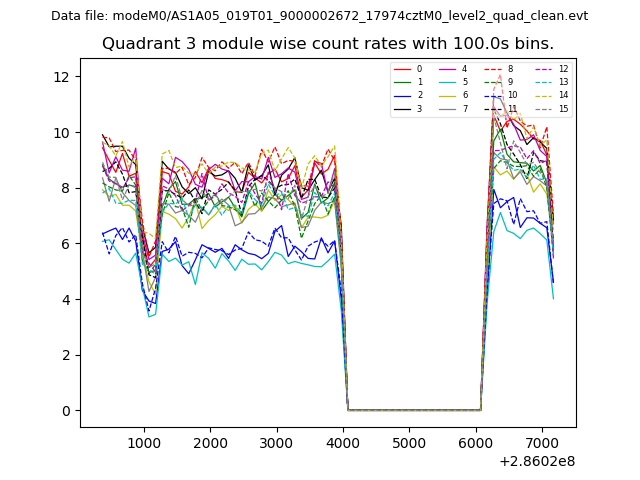

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

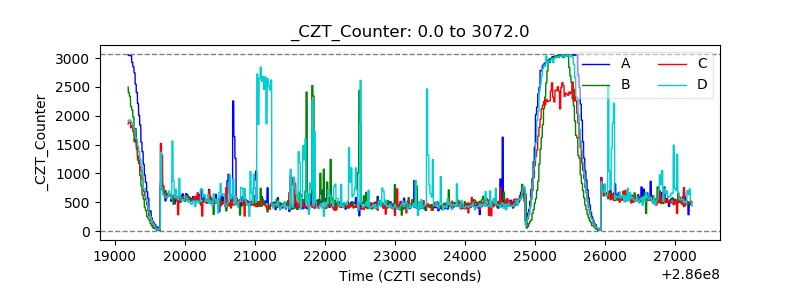

| CZT HV Monitor |  |
| D_VDD |  |

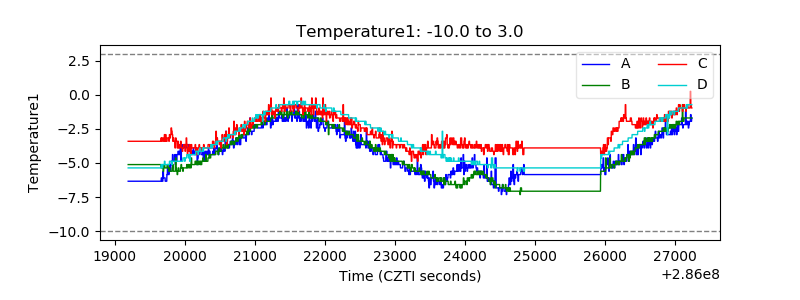

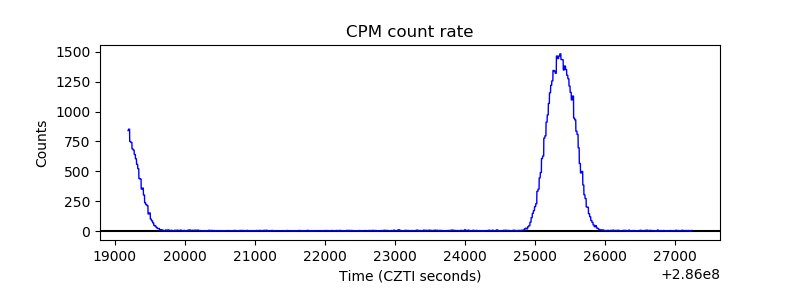

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

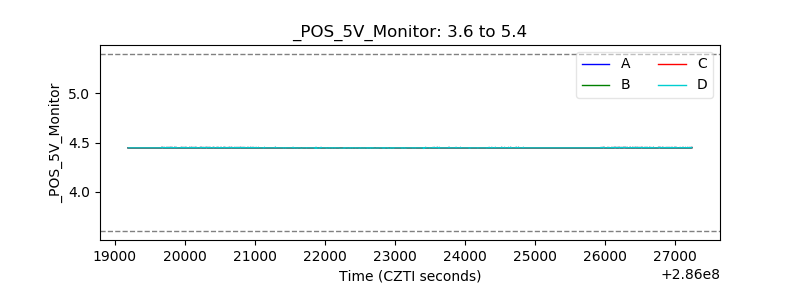

| +5 Volts monitor |  |

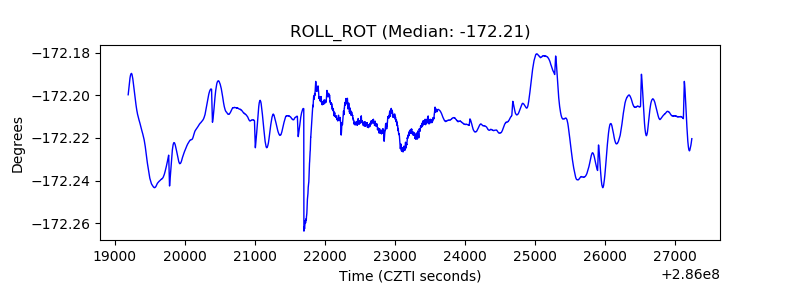

| _ROLL_ROT |  |
| _Roll_DEC |  |

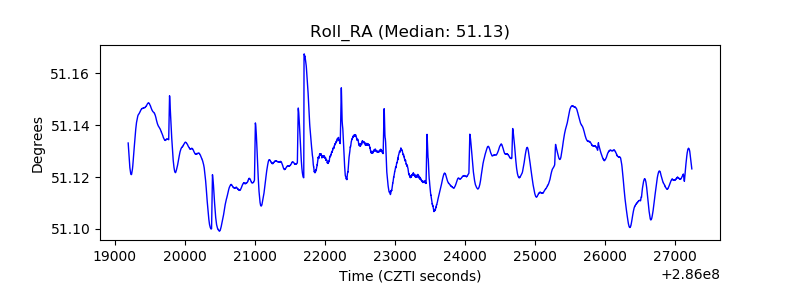

| _Roll_RA |  |

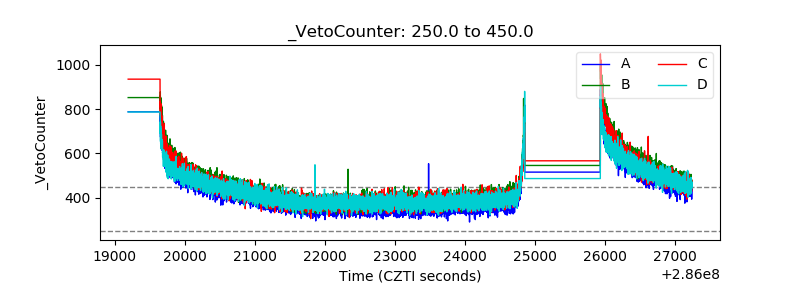

| Veto Counter |  |
