| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002672_17976cztM0_level2.evt | modeM0/AS1A05_019T01_9000002672_17976cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,884,480 | 112,527,360 |
| Size | 502.5 MB | 107.3 MB |
| Events in quadrant A | 3,388,915 | 771,029 |
| Events in quadrant B | 3,579,438 | 771,007 |
| Events in quadrant C | 3,426,677 | 717,970 |
| Events in quadrant D | 5,123,492 | 697,292 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14236 | 2 |
| B | 0 | 14786 | 2 |
| C | 0 | 14147 | 2 |
| D | 0 | 19517 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6465 | 73 | 1.129157% |
| B | 6466 | 85 | 1.314569% |
| C | 6466 | 99 | 1.531086% |
| D | 6466 | 516 | 7.980204% |

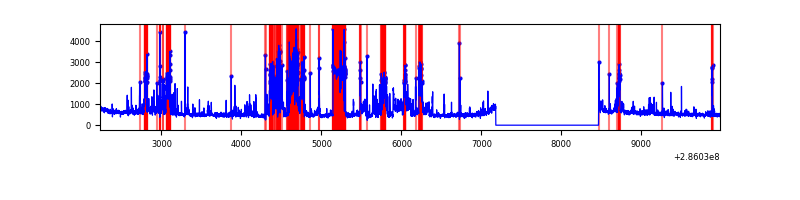

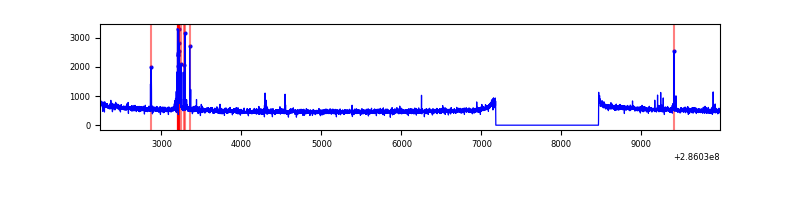

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7750 | 6466 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7751 | 6467 | 18 | 18 | 0.23% | 0.28% |  |
| C | 7751 | 6467 | 15 | 15 | 0.19% | 0.23% |  |
| D | 7751 | 6467 | 439 | 439 | 5.66% | 6.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 85703 | 496.03 | 858 | 844 | 171.1 |
| A | 0 | 226 | 7709 | 40.13 | 858 | 844 | 171.1 |
| A | 0 | 31 | 6471 | 32.89 | 858 | 844 | 171.1 |
| B | 7 | 220 | 123064 | 775.86 | 845 | 825 | 157.6 |
| B | 0 | 182 | 58328 | 364.98 | 845 | 825 | 157.6 |
| B | 0 | 197 | 25946 | 159.44 | 845 | 825 | 157.6 |
| C | 14 | 238 | 124854 | 666.41 | 802 | 807 | 186.1 |
| C | 0 | 207 | 91089 | 485.02 | 802 | 807 | 186.1 |
| C | 3 | 233 | 71902 | 381.94 | 802 | 807 | 186.1 |
| D | 7 | 238 | 1434823 | 7108.52 | 804 | 782 | 201.7 |
| D | 11 | 176 | 421995 | 2087.95 | 804 | 782 | 201.7 |
| D | 5 | 222 | 45636 | 222.34 | 804 | 782 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

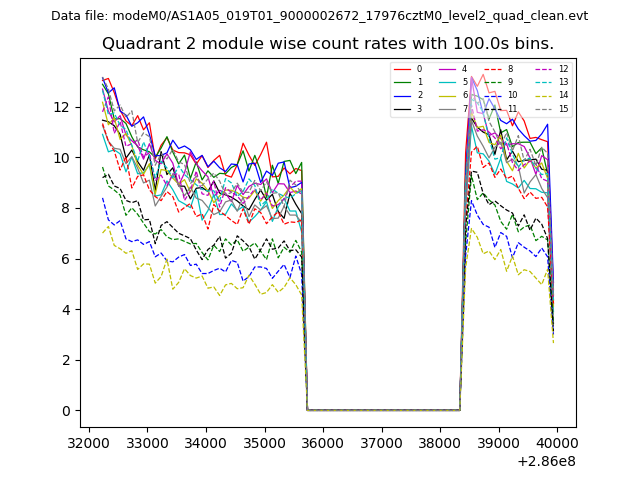

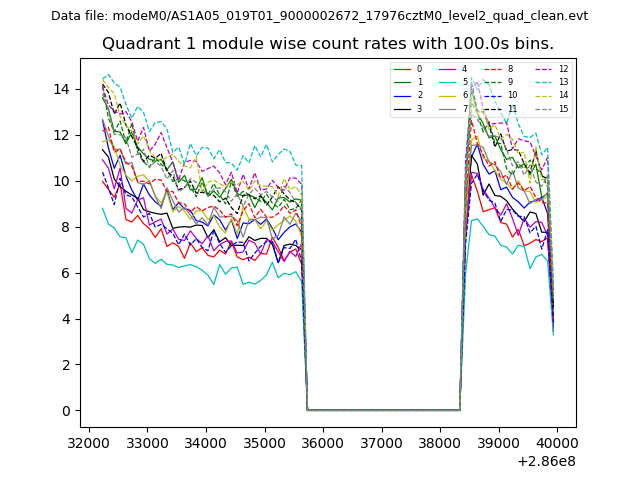

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

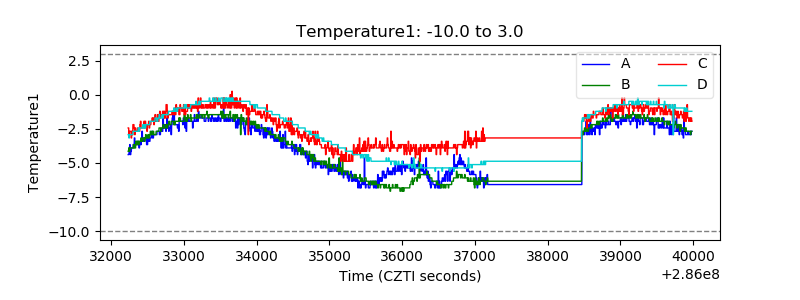

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

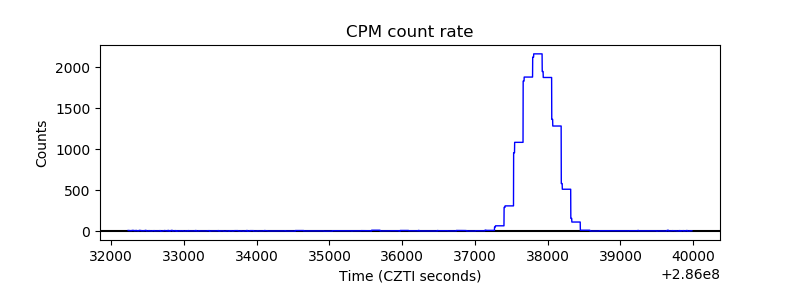

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

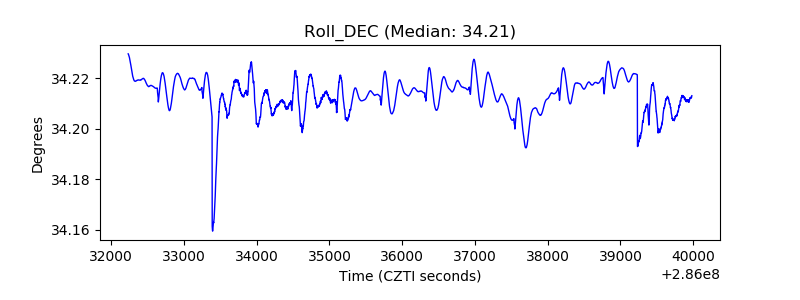

| _Roll_DEC |  |
| _Roll_RA |  |

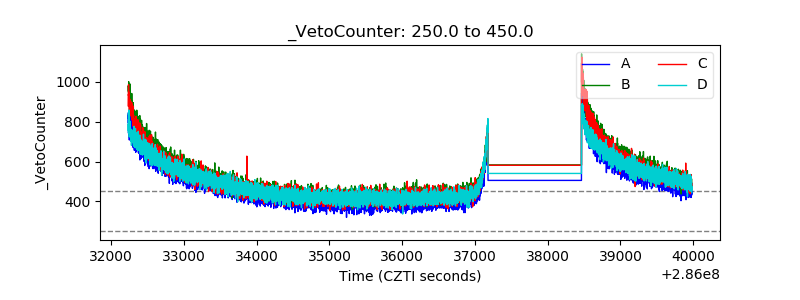

| Veto Counter |  |
