| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T02_9000002676_17992cztM0_level2.evt | modeM0/AS1A05_108T02_9000002676_17992cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,440,000 | 75,199,680 |
| Size | 473.4 MB | 71.7 MB |
| Events in quadrant A | 3,440,447 | 472,141 |
| Events in quadrant B | 3,528,934 | 474,082 |
| Events in quadrant C | 3,375,293 | 450,450 |
| Events in quadrant D | 4,265,842 | 443,853 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14234 | 2 |
| B | 0 | 14456 | 2 |
| C | 0 | 13923 | 2 |
| D | 0 | 16989 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 94 | 1.501837% |
| B | 6259 | 141 | 2.252756% |
| C | 6259 | 108 | 1.725515% |
| D | 6259 | 139 | 2.220802% |

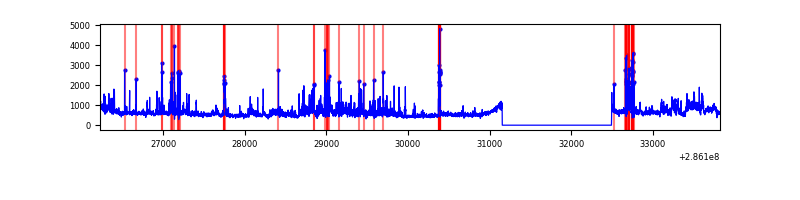

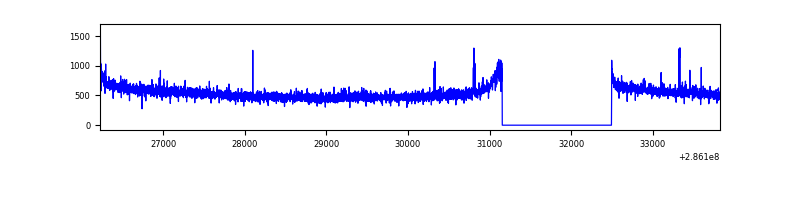

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6260 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7599 | 6260 | 24 | 24 | 0.32% | 0.38% |  |
| C | 7599 | 6260 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7599 | 6260 | 70 | 70 | 0.92% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 76676 | 443.27 | 859 | 843 | 171.1 |
| A | 14 | 237 | 33398 | 190.3 | 859 | 843 | 171.1 |
| A | 4 | 2 | 27327 | 154.81 | 859 | 843 | 171.1 |
| B | 5 | 172 | 67204 | 414.3 | 854 | 837 | 160.2 |
| B | 7 | 220 | 50108 | 307.58 | 854 | 837 | 160.2 |
| B | 0 | 197 | 22829 | 137.29 | 854 | 837 | 160.2 |
| C | 14 | 238 | 127332 | 677.39 | 808 | 814 | 186.8 |
| C | 3 | 233 | 60669 | 320.47 | 808 | 814 | 186.8 |
| C | 0 | 207 | 32019 | 167.07 | 808 | 814 | 186.8 |
| D | 5 | 222 | 869447 | 4372.68 | 814 | 796 | 198.7 |
| D | 11 | 176 | 179313 | 898.63 | 814 | 796 | 198.7 |
| D | 13 | 104 | 40581 | 200.27 | 814 | 796 | 198.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

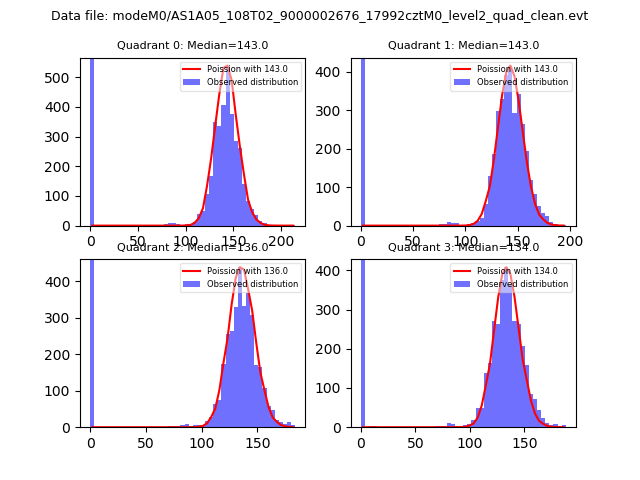

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

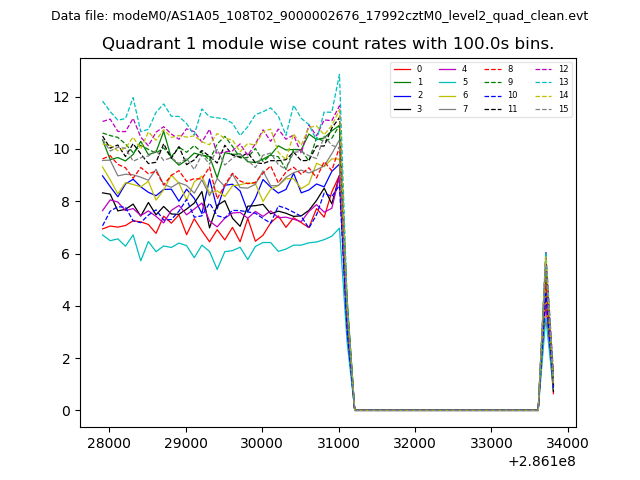

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

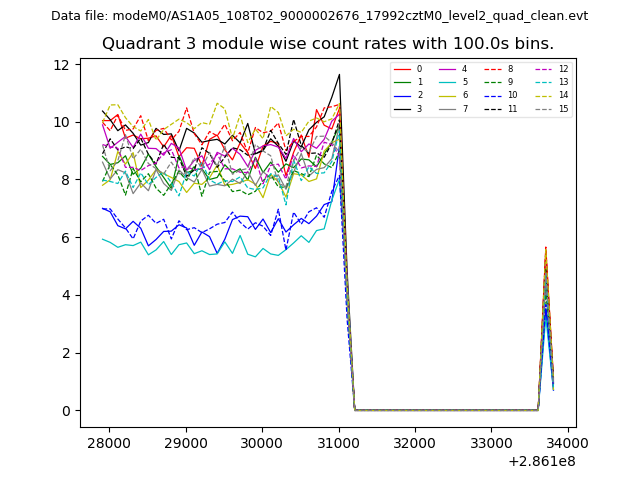

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

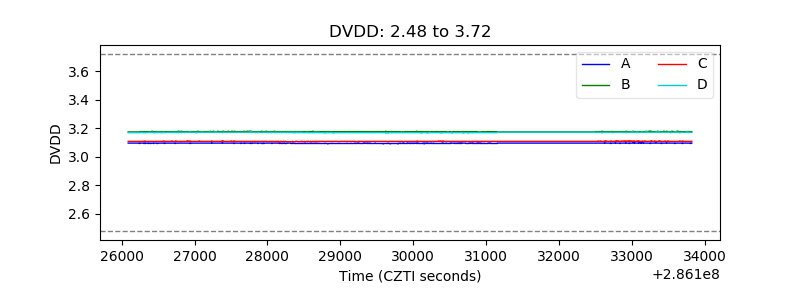

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

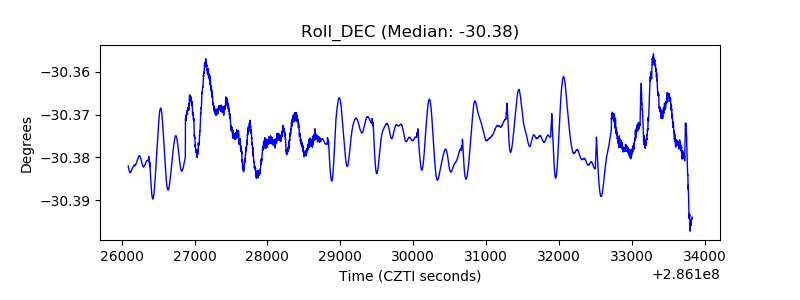

| _Roll_DEC |  |
| _Roll_RA |  |

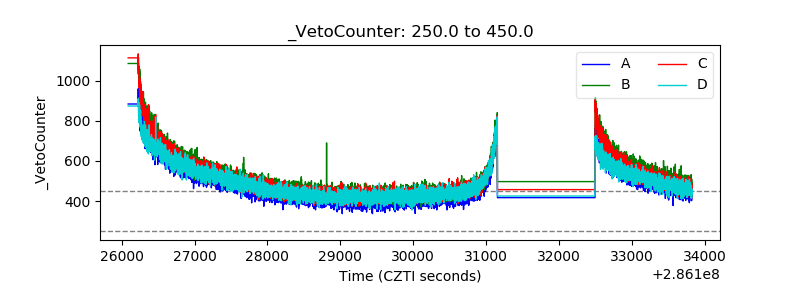

| Veto Counter |  |
