| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T02_9000002676_17993cztM0_level2.evt | modeM0/AS1A05_108T02_9000002676_17993cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,536,320 | 87,105,600 |
| Size | 531.7 MB | 83.1 MB |
| Events in quadrant A | 3,383,217 | 575,782 |
| Events in quadrant B | 3,517,331 | 583,270 |
| Events in quadrant C | 3,361,207 | 550,788 |
| Events in quadrant D | 6,190,099 | 481,990 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14124 | 2 |
| B | 0 | 14483 | 2 |
| C | 0 | 13950 | 2 |
| D | 0 | 22811 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6390 | 176 | 2.754304% |
| B | 6390 | 240 | 3.755869% |
| C | 6391 | 176 | 2.753873% |
| D | 6391 | 1025 | 16.038179% |

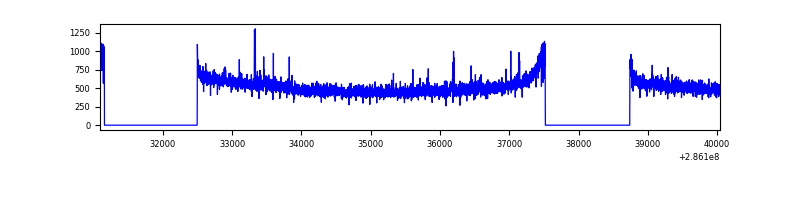

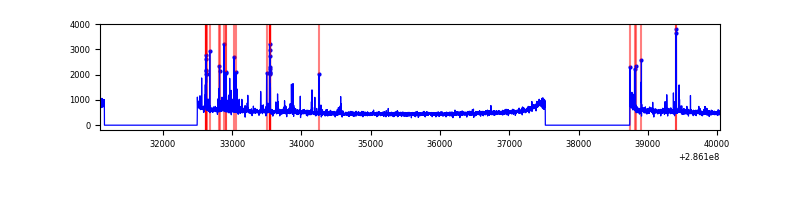

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

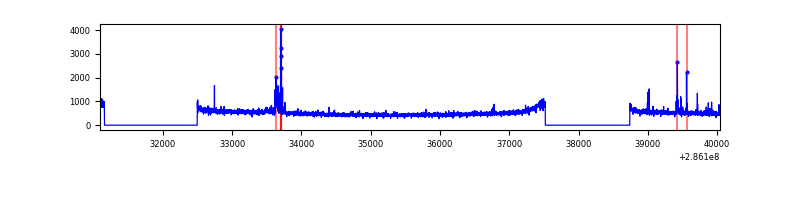

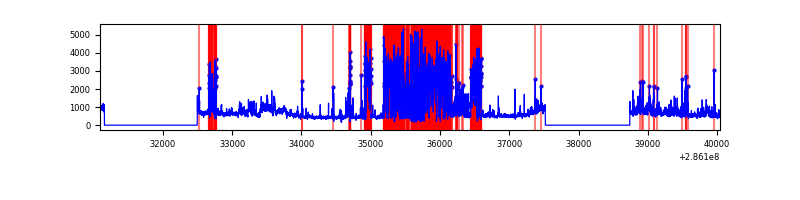

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8950 | 6392 | 7 | 7 | 0.08% | 0.11% |  |
| B | 8950 | 6392 | 30 | 30 | 0.34% | 0.47% |  |
| C | 8951 | 6393 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8951 | 6393 | 823 | 823 | 9.19% | 12.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 74513 | 435.82 | 845 | 830 | 169.1 |
| A | 14 | 237 | 29411 | 169.05 | 845 | 830 | 169.1 |
| A | 4 | 2 | 26825 | 153.76 | 845 | 830 | 169.1 |
| B | 5 | 172 | 92594 | 578.27 | 843 | 822 | 158.7 |
| B | 7 | 220 | 79315 | 494.6 | 843 | 822 | 158.7 |
| B | 12 | 111 | 18246 | 109.79 | 843 | 822 | 158.7 |
| C | 14 | 238 | 124821 | 662.23 | 803 | 810 | 187.3 |
| C | 3 | 233 | 75850 | 400.72 | 803 | 810 | 187.3 |
| C | 0 | 207 | 18072 | 92.18 | 803 | 810 | 187.3 |
| D | 5 | 222 | 2915558 | 15610.83 | 761 | 742 | 186.7 |
| D | 7 | 238 | 170609 | 909.75 | 761 | 742 | 186.7 |
| D | 11 | 176 | 160600 | 856.15 | 761 | 742 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

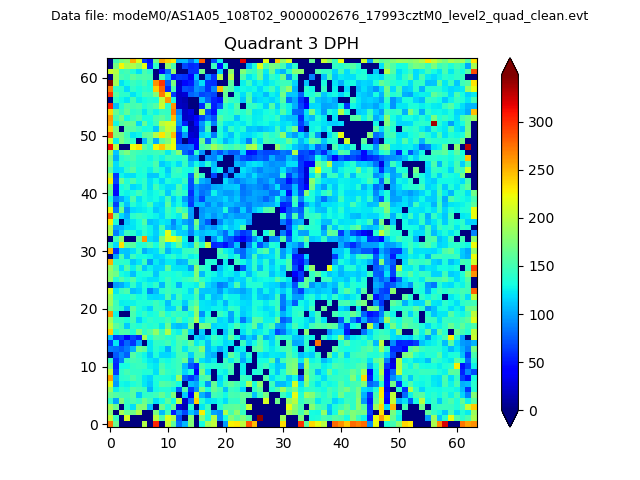

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

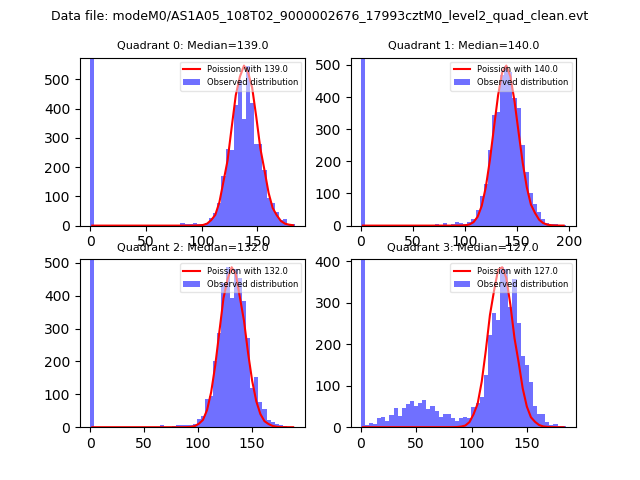

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

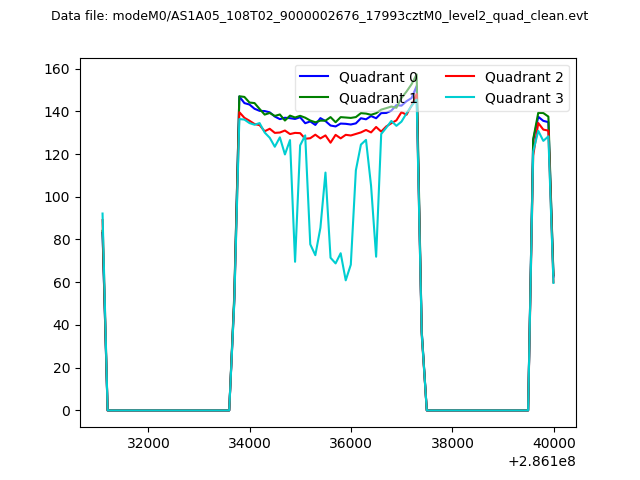

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

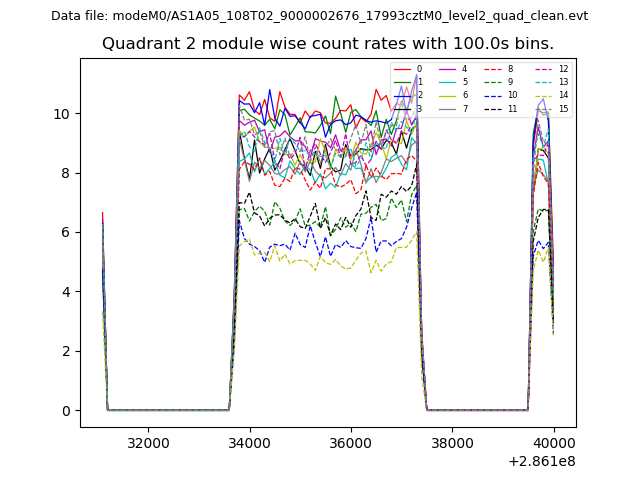

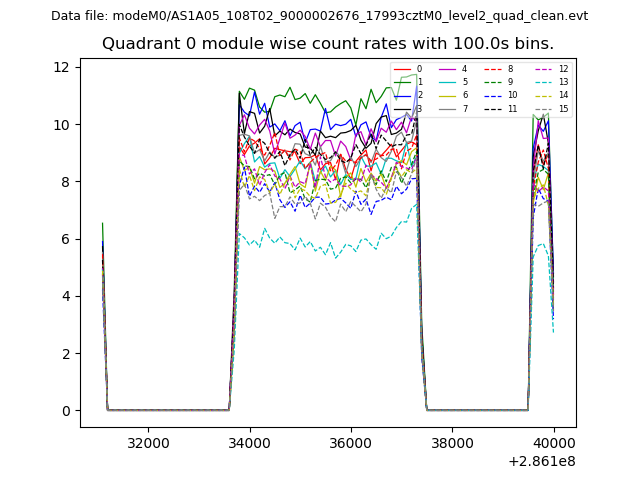

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

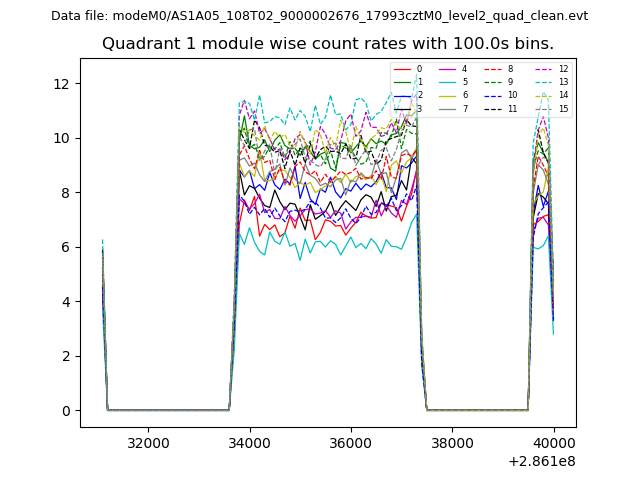

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

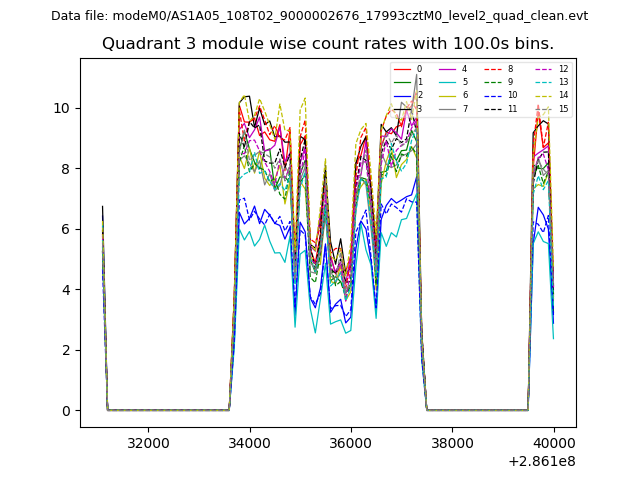

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

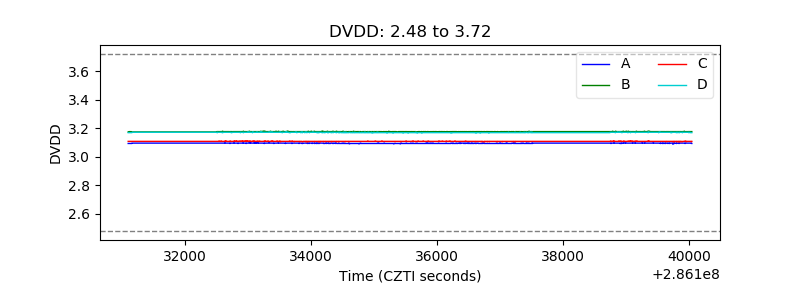

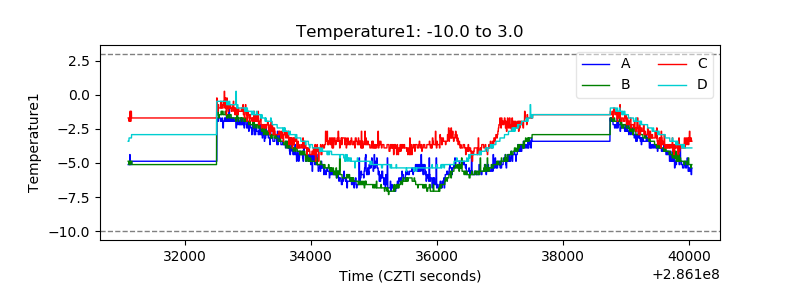

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

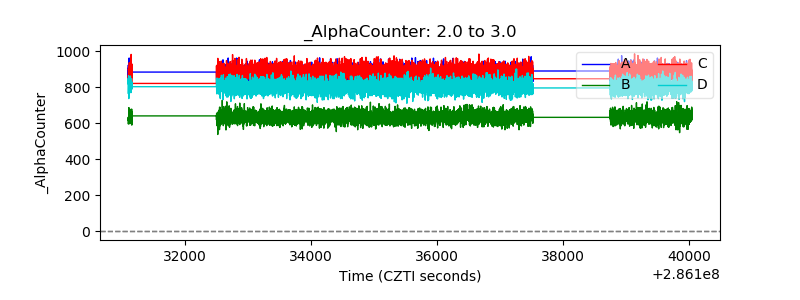

| Alpha Counter |  |

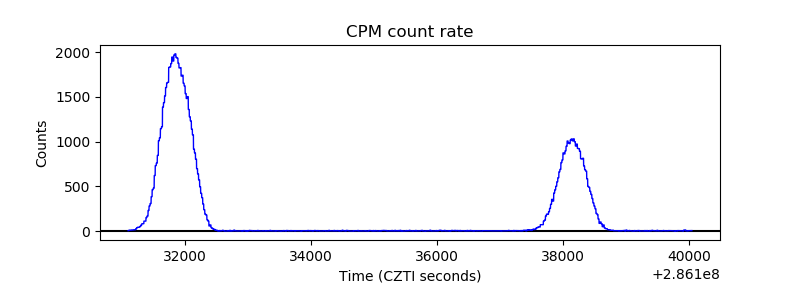

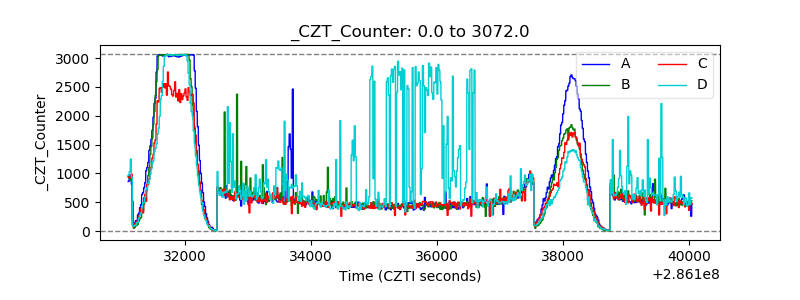

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

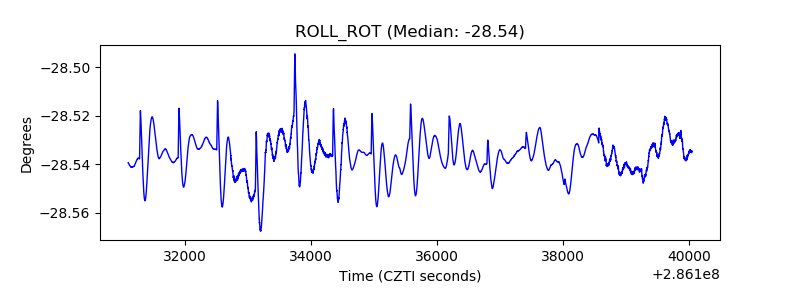

| _ROLL_ROT |  |

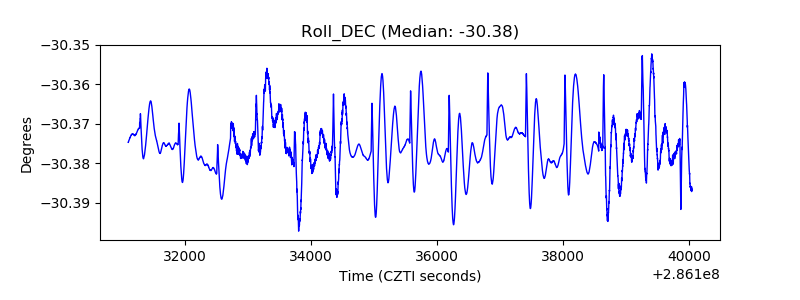

| _Roll_DEC |  |

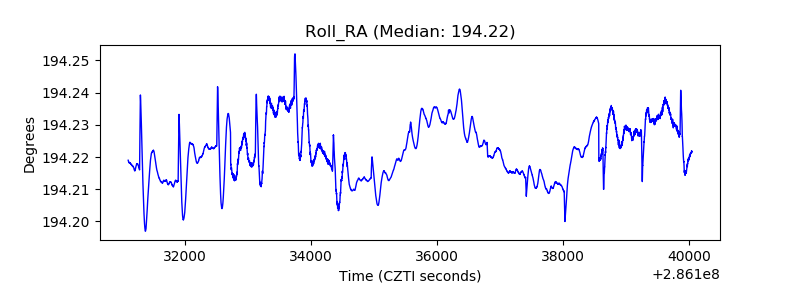

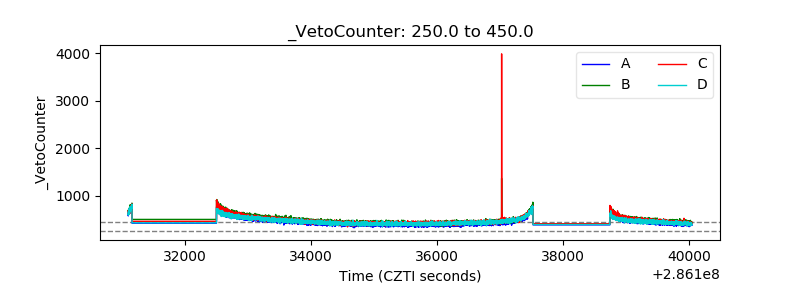

| _Roll_RA |  |
| Veto Counter |  |
