| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_159T01_9000002678_18004cztM0_level2.evt | modeM0/AS1A05_159T01_9000002678_18004cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,375,360 | 100,203,840 |
| Size | 509.6 MB | 95.6 MB |
| Events in quadrant A | 3,510,828 | 668,464 |
| Events in quadrant B | 3,432,111 | 677,217 |
| Events in quadrant C | 3,416,731 | 639,475 |
| Events in quadrant D | 5,401,957 | 615,016 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14352 | 1 |
| B | 0 | 13992 | 1 |
| C | 0 | 14034 | 1 |
| D | 0 | 20100 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6225 | 101 | 1.622490% |
| B | 6225 | 84 | 1.349398% |
| C | 6226 | 91 | 1.461613% |
| D | 6226 | 688 | 11.050434% |

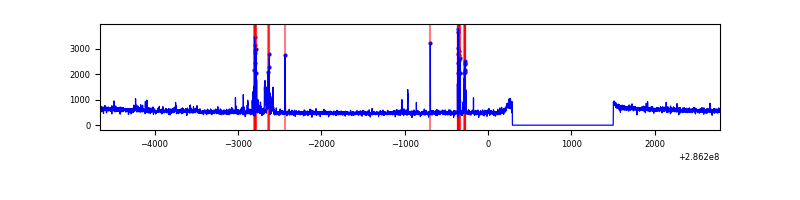

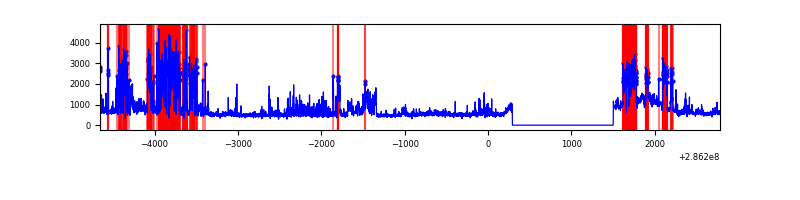

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7435 | 6226 | 30 | 30 | 0.40% | 0.48% |  |
| B | 7435 | 6225 | 19 | 19 | 0.26% | 0.31% |  |
| C | 7436 | 6227 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7436 | 6227 | 546 | 546 | 7.34% | 8.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 127798 | 739.49 | 855 | 841 | 171.7 |
| A | 4 | 2 | 96714 | 558.43 | 855 | 841 | 171.7 |
| A | 0 | 226 | 7377 | 38.07 | 855 | 841 | 171.7 |
| B | 7 | 220 | 75555 | 465.56 | 846 | 828 | 160.5 |
| B | 0 | 197 | 21360 | 127.92 | 846 | 828 | 160.5 |
| B | 12 | 111 | 18311 | 108.92 | 846 | 828 | 160.5 |
| C | 14 | 238 | 129257 | 686.33 | 803 | 812 | 187.1 |
| C | 3 | 233 | 88142 | 466.63 | 803 | 812 | 187.1 |
| C | 0 | 207 | 53075 | 279.26 | 803 | 812 | 187.1 |
| D | 11 | 176 | 1690090 | 8045.58 | 776 | 761 | 210.0 |
| D | 5 | 222 | 551612 | 2623.48 | 776 | 761 | 210.0 |
| D | 12 | 110 | 117229 | 554.69 | 776 | 761 | 210.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

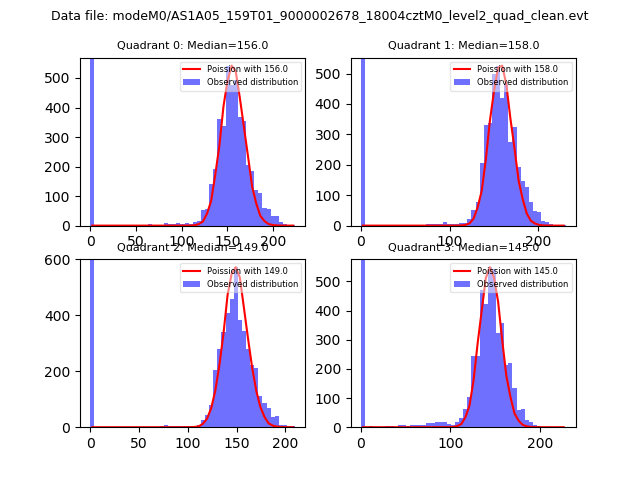

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

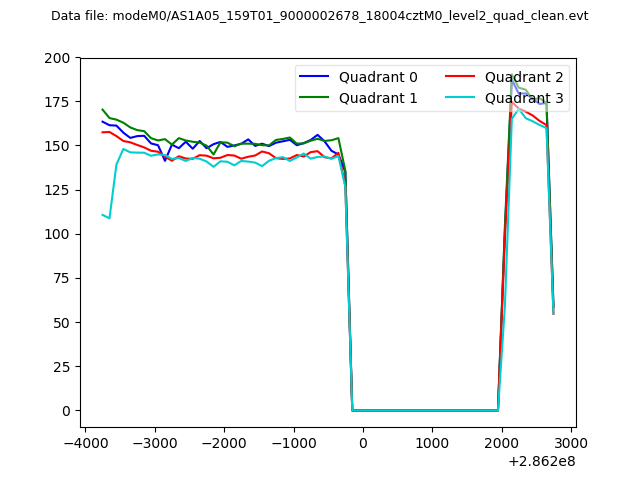

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

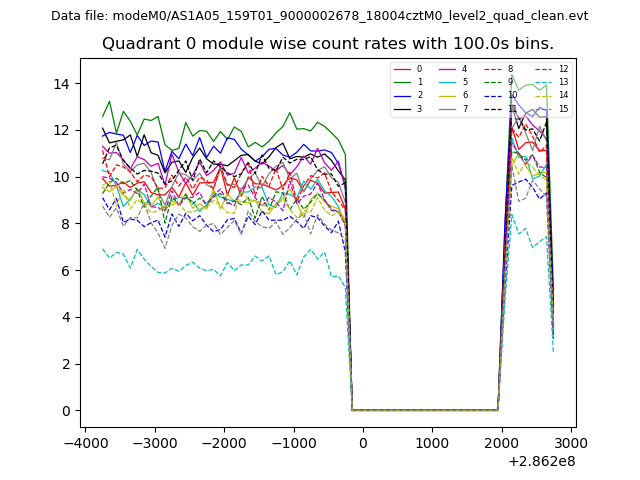

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

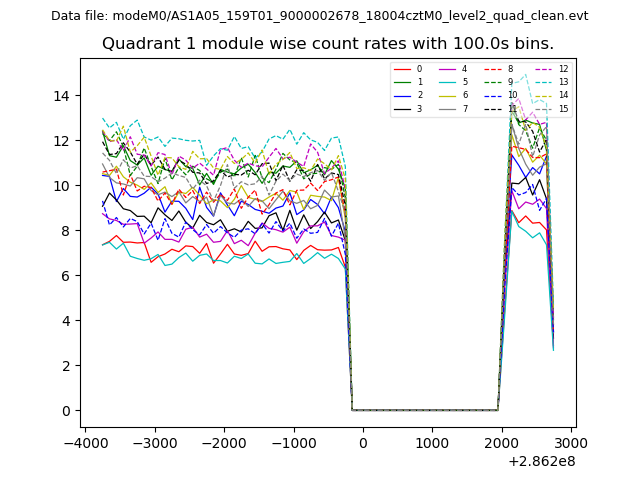

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

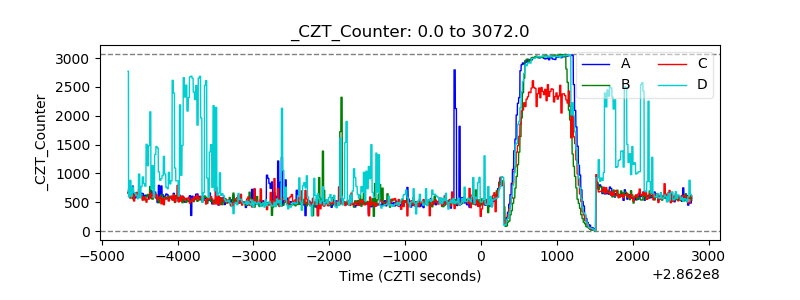

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

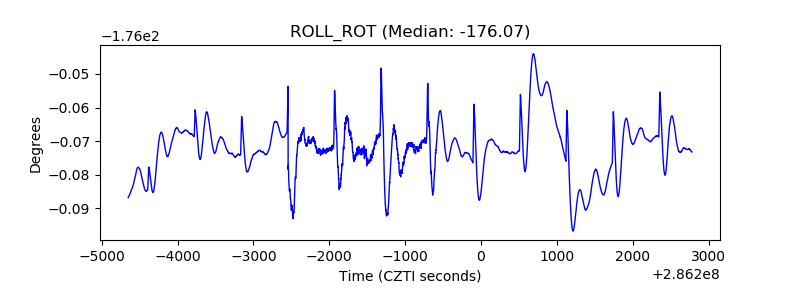

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
