| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_159T01_9000002678_18006cztM0_level2.evt | modeM0/AS1A05_159T01_9000002678_18006cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,718,400 | 119,822,400 |
| Size | 453.7 MB | 114.3 MB |
| Events in quadrant A | 3,272,903 | 830,239 |
| Events in quadrant B | 3,410,630 | 826,583 |
| Events in quadrant C | 3,325,378 | 777,157 |
| Events in quadrant D | 3,985,684 | 770,835 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13453 | 1 |
| B | 0 | 13846 | 1 |
| C | 0 | 13460 | 1 |
| D | 0 | 15746 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6076 | 94 | 1.547070% |
| B | 6076 | 142 | 2.337064% |
| C | 6076 | 119 | 1.958525% |
| D | 6076 | 176 | 2.896643% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7356 | 6077 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7356 | 6077 | 28 | 28 | 0.38% | 0.46% |  |
| C | 7356 | 6077 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7356 | 6077 | 61 | 61 | 0.83% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 38384 | 222.0 | 841 | 829 | 169.2 |
| A | 0 | 226 | 7498 | 39.42 | 841 | 829 | 169.2 |
| A | 12 | 194 | 6132 | 31.35 | 841 | 829 | 169.2 |
| B | 5 | 172 | 70434 | 444.99 | 824 | 809 | 156.5 |
| B | 7 | 220 | 43075 | 270.13 | 824 | 809 | 156.5 |
| B | 10 | 247 | 29686 | 184.56 | 824 | 809 | 156.5 |
| C | 14 | 238 | 123898 | 680.76 | 783 | 794 | 180.8 |
| C | 0 | 207 | 107817 | 591.83 | 783 | 794 | 180.8 |
| C | 3 | 233 | 14999 | 78.55 | 783 | 794 | 180.8 |
| D | 5 | 222 | 825729 | 3829.54 | 801 | 790 | 215.4 |
| D | 11 | 176 | 37765 | 171.65 | 801 | 790 | 215.4 |
| D | 2 | 234 | 30327 | 137.12 | 801 | 790 | 215.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

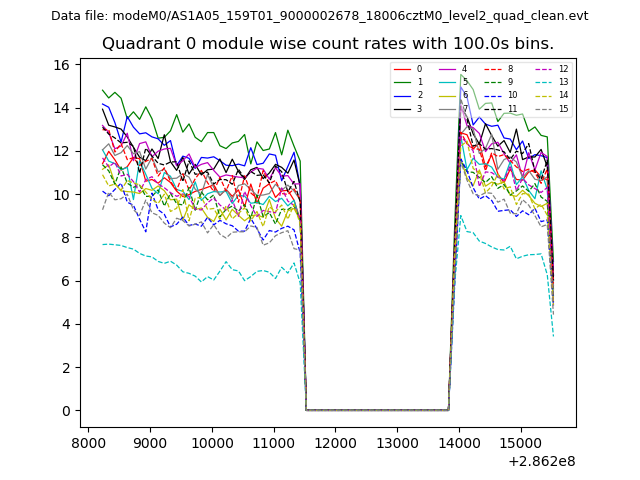

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

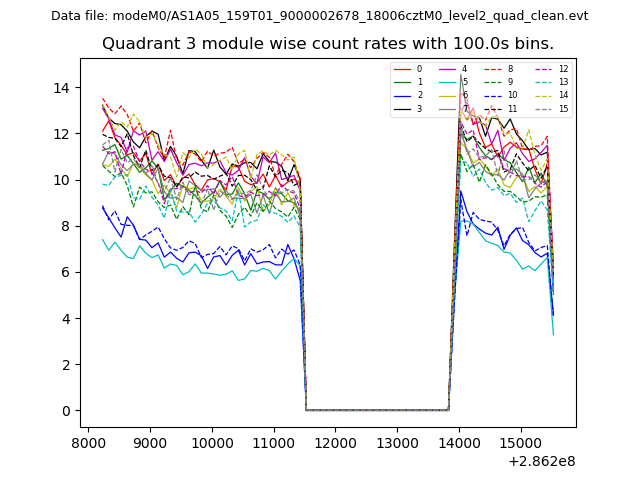

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

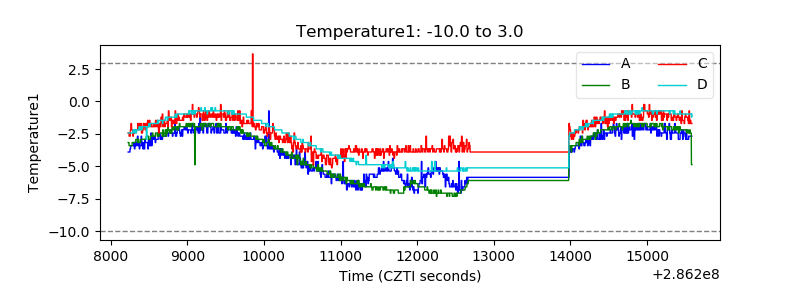

| Temperature 1 |  |

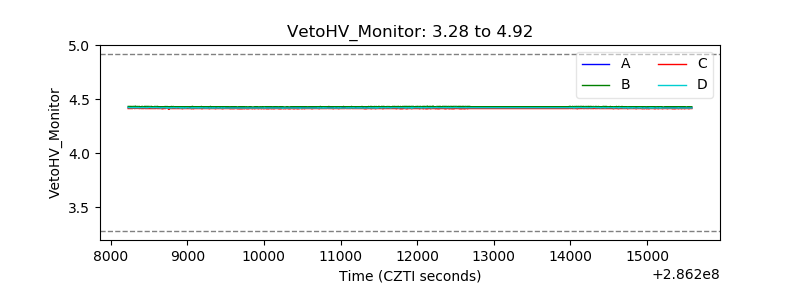

| Veto HV Monitor |  |

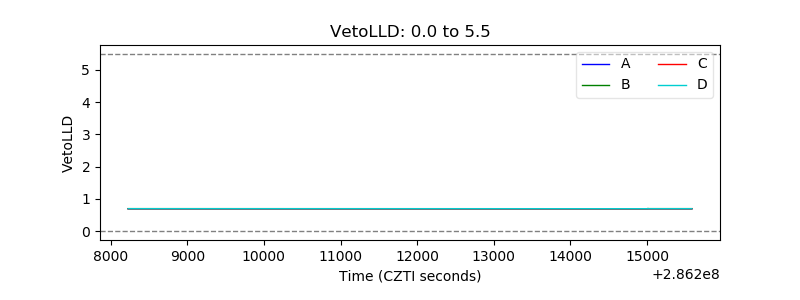

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

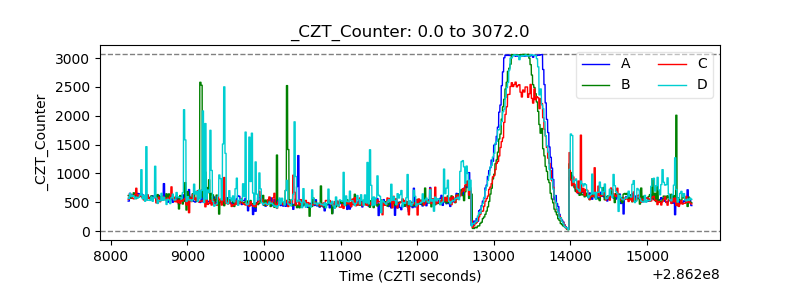

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
