| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_159T01_9000002678_18012cztM0_level2.evt | modeM0/AS1A05_159T01_9000002678_18012cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,820,480 | 103,492,800 |
| Size | 529.1 MB | 98.7 MB |
| Events in quadrant A | 3,718,284 | 668,582 |
| Events in quadrant B | 3,897,901 | 670,824 |
| Events in quadrant C | 4,260,227 | 643,421 |
| Events in quadrant D | 4,415,361 | 627,150 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15982 | 2 |
| B | 0 | 16442 | 2 |
| C | 0 | 17655 | 3 |
| D | 0 | 18240 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7529 | 84 | 1.115686% |
| B | 7530 | 102 | 1.354582% |
| C | 7529 | 161 | 2.138398% |
| D | 7529 | 165 | 2.191526% |

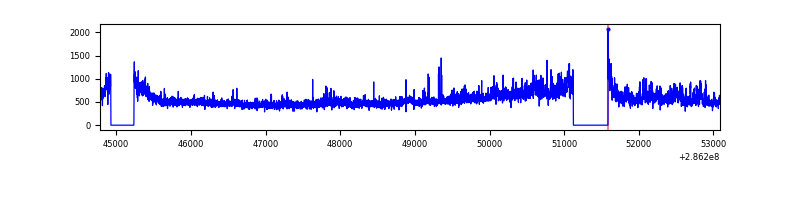

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8304 | 7531 | 16 | 16 | 0.19% | 0.21% |  |
| B | 8305 | 7532 | 10 | 10 | 0.12% | 0.13% |  |
| C | 8304 | 7531 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8304 | 7531 | 51 | 51 | 0.61% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 70798 | 367.71 | 927 | 908 | 190.1 |
| A | 15 | 174 | 68795 | 357.18 | 927 | 908 | 190.1 |
| A | 4 | 2 | 14243 | 70.16 | 927 | 908 | 190.1 |
| B | 7 | 220 | 114639 | 631.4 | 929 | 906 | 180.1 |
| B | 0 | 189 | 33151 | 179.01 | 929 | 906 | 180.1 |
| B | 0 | 197 | 30302 | 163.19 | 929 | 906 | 180.1 |
| C | 3 | 233 | 363523 | 1724.02 | 888 | 894 | 210.3 |
| C | 0 | 207 | 275178 | 1304.01 | 888 | 894 | 210.3 |
| C | 14 | 238 | 136249 | 643.51 | 888 | 894 | 210.3 |
| D | 5 | 222 | 703679 | 3199.73 | 897 | 873 | 219.6 |
| D | 12 | 233 | 84318 | 379.91 | 897 | 873 | 219.6 |
| D | 7 | 38 | 64962 | 291.78 | 897 | 873 | 219.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

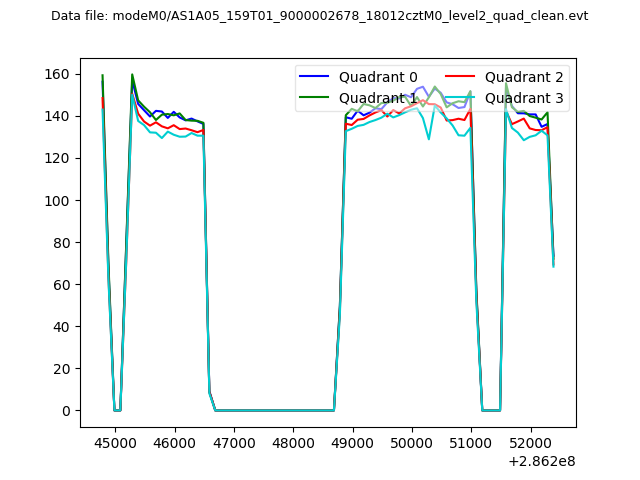

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

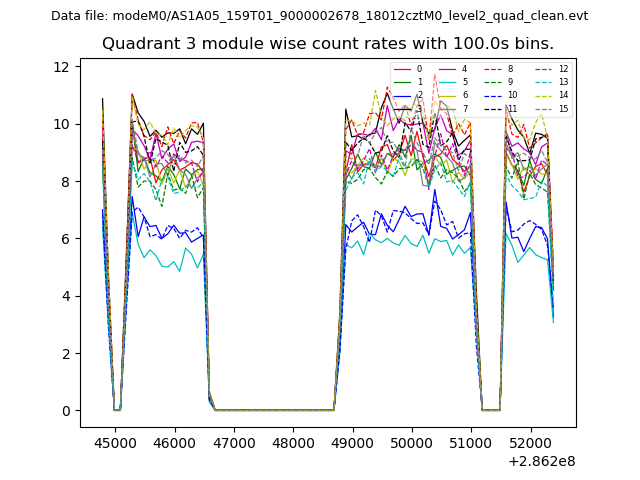

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

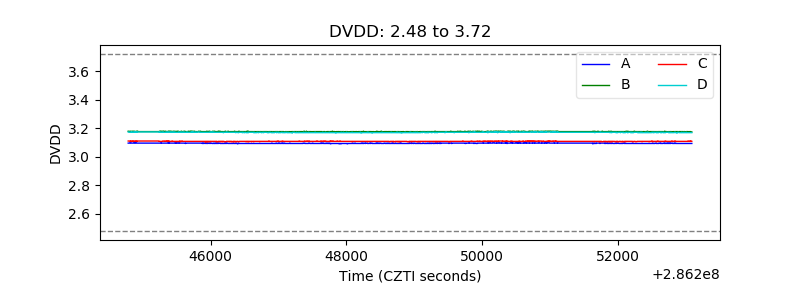

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

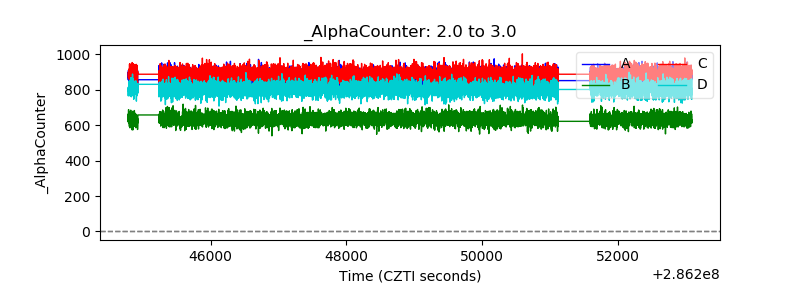

| Alpha Counter |  |
| _CPM_Rate |  |

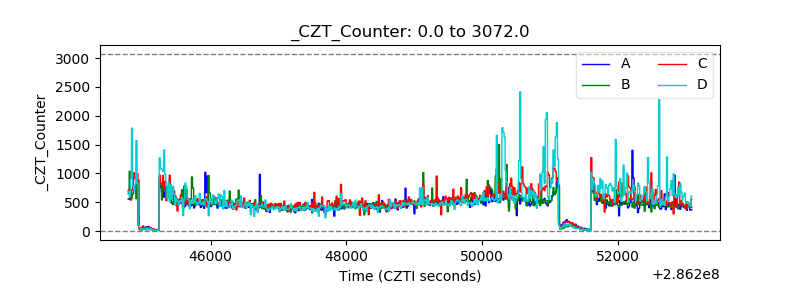

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

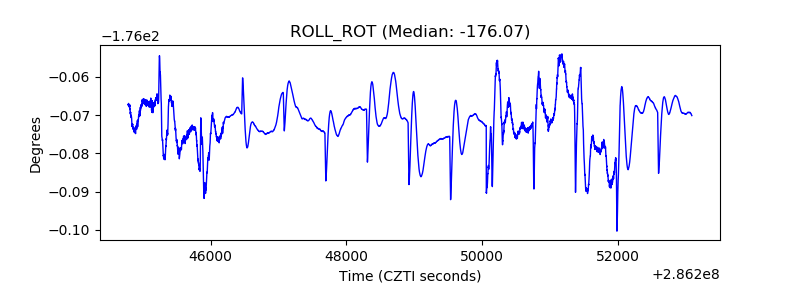

| _ROLL_ROT |  |
| _Roll_DEC |  |

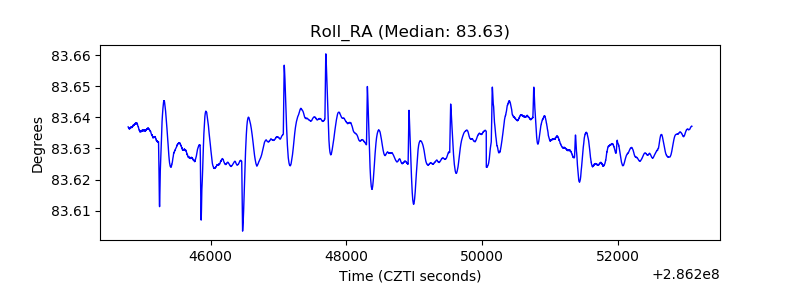

| _Roll_RA |  |
| Veto Counter |  |
