| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_159T01_9000002678_18025cztM0_level2.evt | modeM0/AS1A05_159T01_9000002678_18025cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,235,520 | 121,780,800 |
| Size | 576.2 MB | 116.1 MB |
| Events in quadrant A | 4,031,674 | 810,319 |
| Events in quadrant B | 4,043,487 | 814,038 |
| Events in quadrant C | 4,618,866 | 774,155 |
| Events in quadrant D | 5,077,488 | 748,174 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17055 | 2 |
| B | 0 | 16968 | 2 |
| C | 0 | 18797 | 2 |
| D | 0 | 20466 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7794 | 175 | 2.245317% |
| B | 7795 | 166 | 2.129570% |
| C | 7794 | 202 | 2.591737% |
| D | 7794 | 234 | 3.002309% |

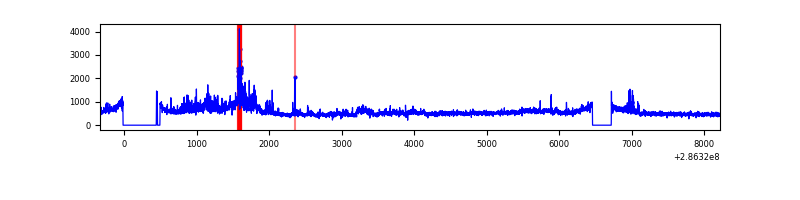

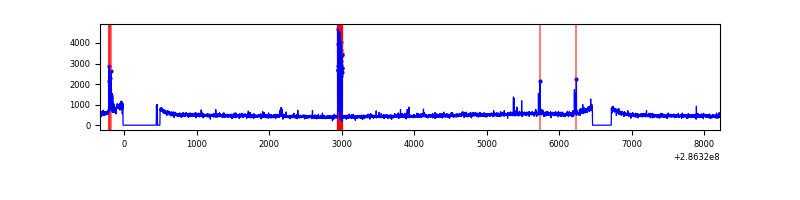

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8550 | 7798 | 49 | 49 | 0.57% | 0.63% |  |
| B | 8551 | 7799 | 7 | 7 | 0.08% | 0.09% |  |
| C | 8550 | 7798 | 18 | 18 | 0.21% | 0.23% |  |
| D | 8550 | 7798 | 166 | 166 | 1.94% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 177072 | 863.14 | 989 | 969 | 204.0 |
| A | 4 | 2 | 53211 | 256.06 | 989 | 969 | 204.0 |
| A | 0 | 226 | 8552 | 37.17 | 989 | 969 | 204.0 |
| B | 7 | 220 | 54586 | 279.01 | 990 | 967 | 192.2 |
| B | 0 | 197 | 29076 | 146.27 | 990 | 967 | 192.2 |
| B | 0 | 189 | 24481 | 122.36 | 990 | 967 | 192.2 |
| C | 3 | 233 | 458146 | 2072.97 | 943 | 953 | 220.6 |
| C | 14 | 238 | 143888 | 648.08 | 943 | 953 | 220.6 |
| C | 0 | 207 | 138711 | 624.61 | 943 | 953 | 220.6 |
| D | 11 | 176 | 732544 | 3135.47 | 950 | 923 | 233.3 |
| D | 5 | 222 | 482106 | 2062.18 | 950 | 923 | 233.3 |
| D | 7 | 38 | 119182 | 506.82 | 950 | 923 | 233.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

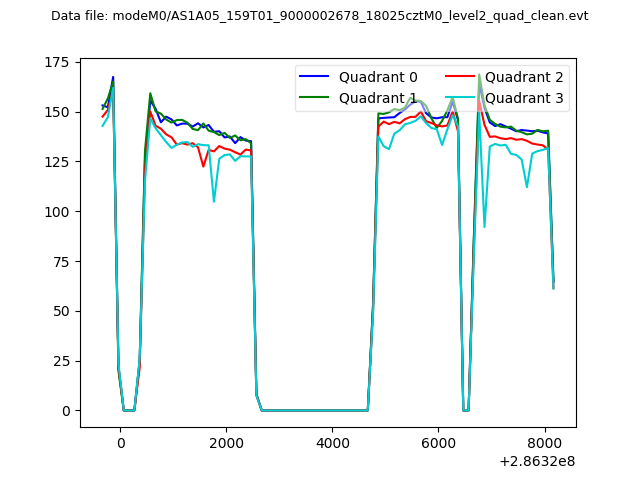

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

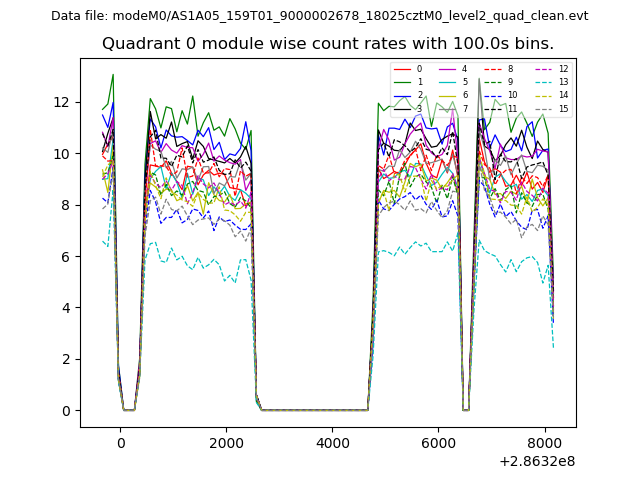

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

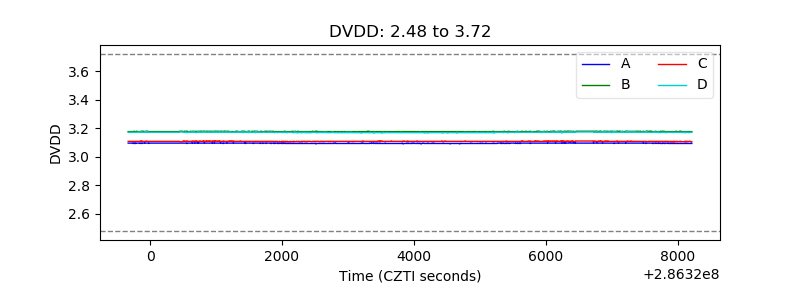

| D_VDD |  |

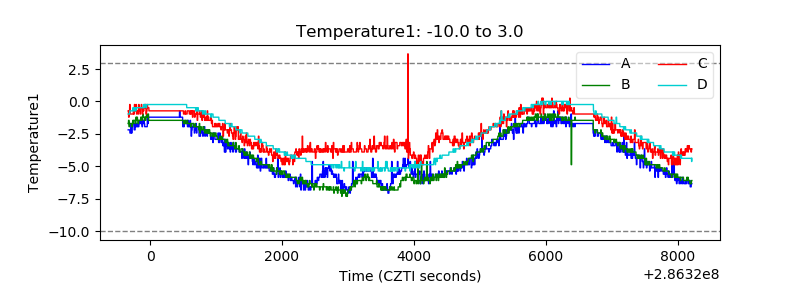

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

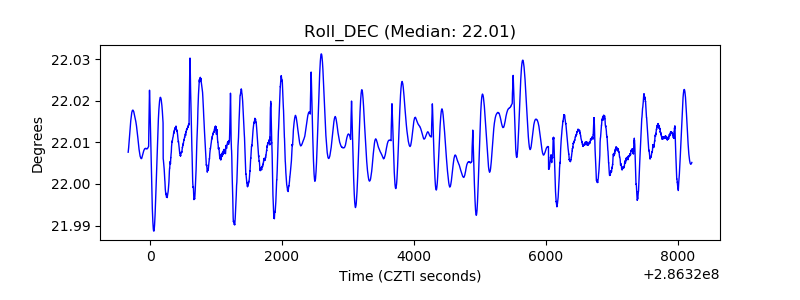

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
