| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_159T01_9000002678_18030cztM0_level2.evt | modeM0/AS1A05_159T01_9000002678_18030cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,179,520 | 74,260,800 |
| Size | 466.5 MB | 70.8 MB |
| Events in quadrant A | 4,094,993 | 443,676 |
| Events in quadrant B | 3,296,261 | 465,394 |
| Events in quadrant C | 3,428,483 | 445,105 |
| Events in quadrant D | 3,549,010 | 436,073 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16202 | 2 |
| B | 0 | 13687 | 2 |
| C | 0 | 14152 | 2 |
| D | 0 | 14662 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6569 | 308 | 4.688689% |
| B | 6569 | 81 | 1.233064% |
| C | 6569 | 95 | 1.446187% |
| D | 6568 | 90 | 1.370280% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6569 | 197 | 197 | 2.61% | 3.00% |  |
| B | 7544 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7544 | 6570 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7543 | 6569 | 41 | 41 | 0.54% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 902707 | 5358.96 | 826 | 810 | 168.3 |
| A | 6 | 16 | 16772 | 94.84 | 826 | 810 | 168.3 |
| A | 0 | 226 | 7237 | 38.19 | 826 | 810 | 168.3 |
| B | 12 | 111 | 19038 | 113.36 | 839 | 819 | 160.7 |
| B | 11 | 111 | 16624 | 98.34 | 839 | 819 | 160.7 |
| B | 14 | 111 | 14007 | 82.06 | 839 | 819 | 160.7 |
| C | 14 | 238 | 123853 | 654.44 | 800 | 806 | 188.0 |
| C | 8 | 208 | 97076 | 512.02 | 800 | 806 | 188.0 |
| C | 3 | 233 | 86376 | 455.11 | 800 | 806 | 188.0 |
| D | 11 | 176 | 262718 | 1331.05 | 806 | 785 | 196.8 |
| D | 7 | 238 | 106489 | 537.15 | 806 | 785 | 196.8 |
| D | 5 | 222 | 84267 | 424.23 | 806 | 785 | 196.8 |

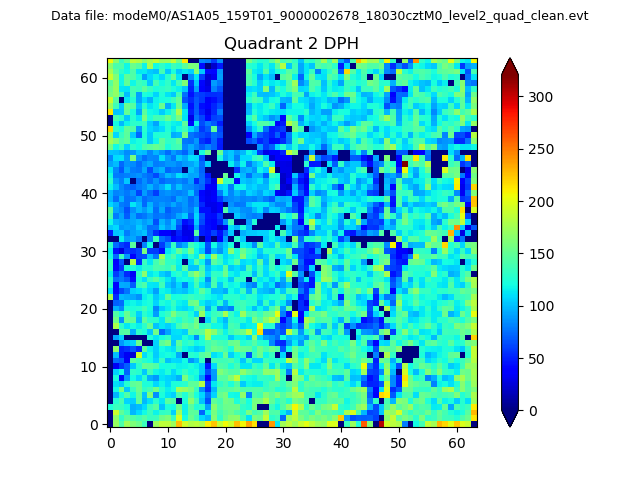

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

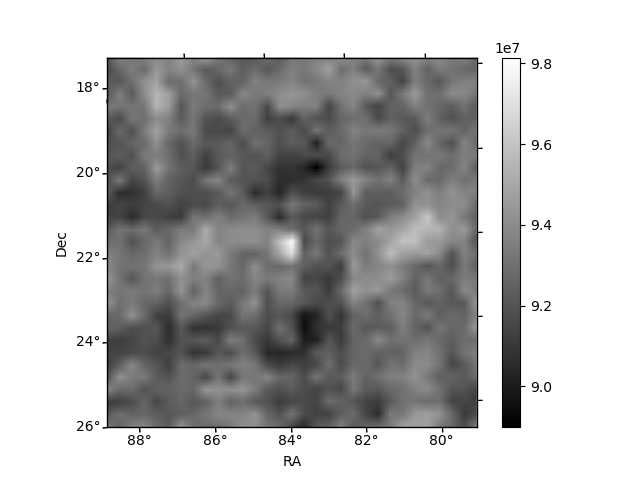

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

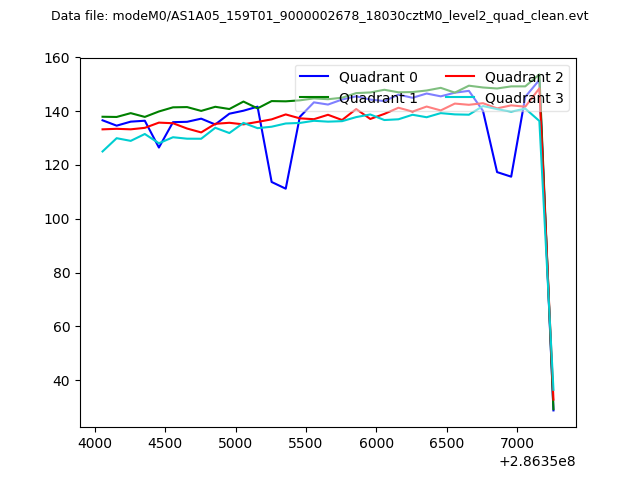

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

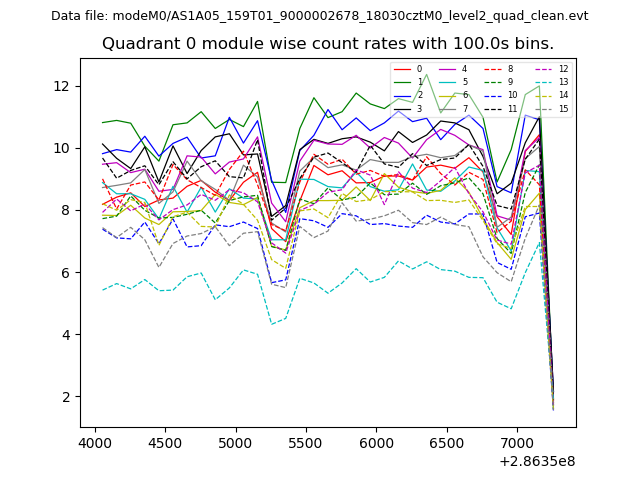

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

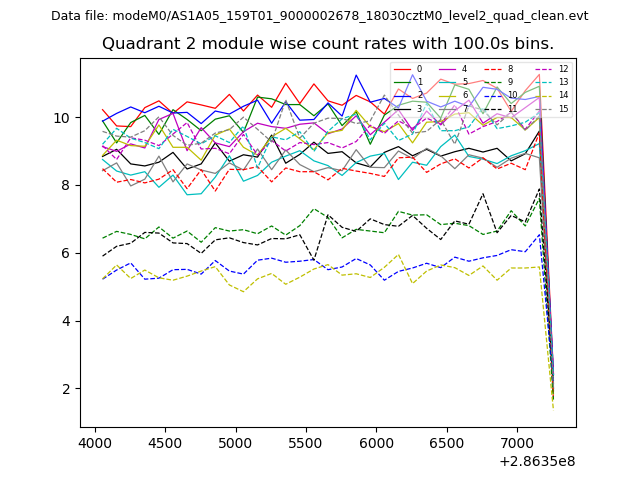

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

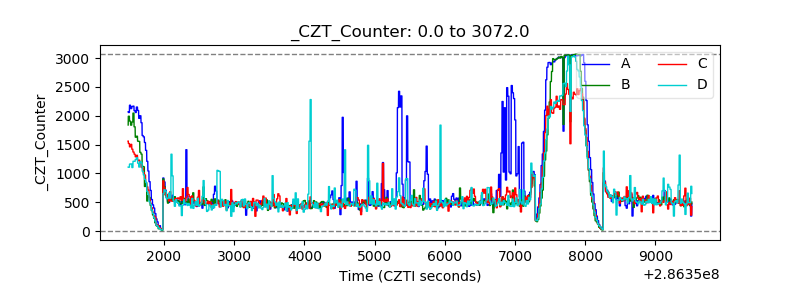

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

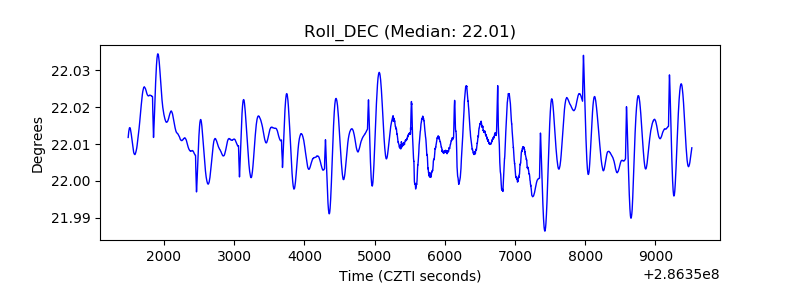

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
