| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_159T01_9000002678_18039cztM0_level2.evt | modeM0/AS1A05_159T01_9000002678_18039cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,479,680 | 112,775,040 |
| Size | 534.5 MB | 107.6 MB |
| Events in quadrant A | 3,741,853 | 748,090 |
| Events in quadrant B | 3,904,234 | 749,599 |
| Events in quadrant C | 3,838,659 | 714,435 |
| Events in quadrant D | 4,989,261 | 689,921 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15886 | 2 |
| B | 0 | 16262 | 2 |
| C | 0 | 15912 | 2 |
| D | 0 | 19887 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7372 | 145 | 1.966902% |
| B | 7373 | 149 | 2.020887% |
| C | 7373 | 109 | 1.478367% |
| D | 7373 | 207 | 2.807541% |

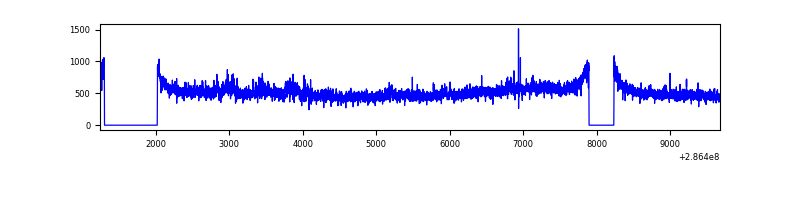

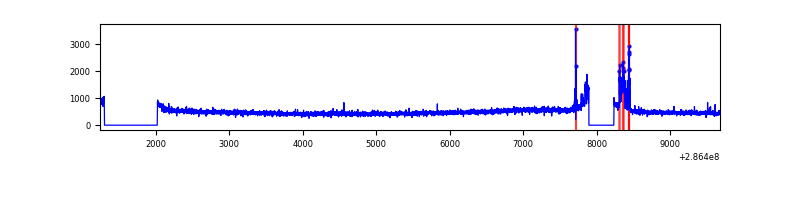

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8432 | 7374 | 12 | 12 | 0.14% | 0.16% |  |
| B | 8433 | 7375 | 20 | 20 | 0.24% | 0.27% |  |
| C | 8433 | 7375 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8433 | 7375 | 114 | 114 | 1.35% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 160398 | 830.12 | 931 | 913 | 192.1 |
| A | 0 | 226 | 8121 | 37.52 | 931 | 913 | 192.1 |
| A | 12 | 194 | 7018 | 31.78 | 931 | 913 | 192.1 |
| B | 7 | 220 | 148895 | 821.7 | 929 | 907 | 180.1 |
| B | 0 | 197 | 63850 | 349.49 | 929 | 907 | 180.1 |
| B | 12 | 111 | 20155 | 106.87 | 929 | 907 | 180.1 |
| C | 3 | 233 | 183663 | 869.33 | 889 | 898 | 210.2 |
| C | 14 | 238 | 136537 | 645.18 | 889 | 898 | 210.2 |
| C | 8 | 208 | 22311 | 101.85 | 889 | 898 | 210.2 |
| D | 7 | 238 | 921473 | 4190.25 | 894 | 871 | 219.7 |
| D | 5 | 222 | 245782 | 1114.75 | 894 | 871 | 219.7 |
| D | 11 | 176 | 245218 | 1112.18 | 894 | 871 | 219.7 |

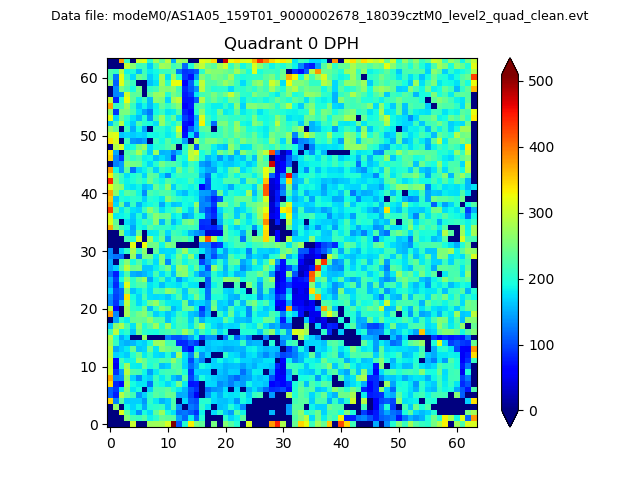

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

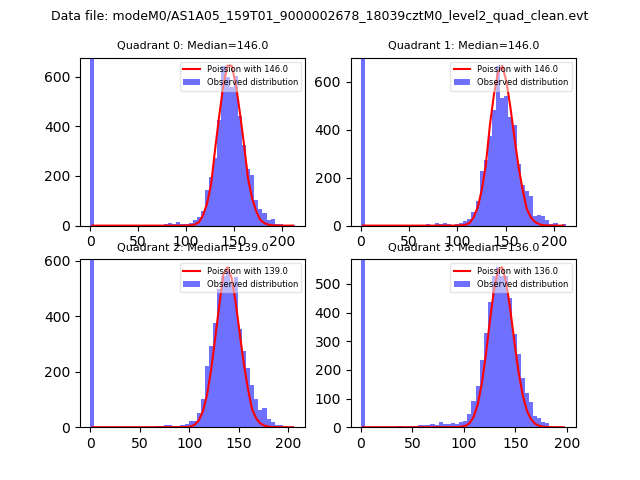

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

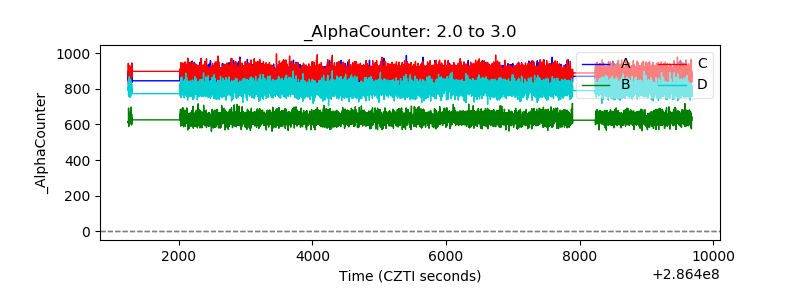

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

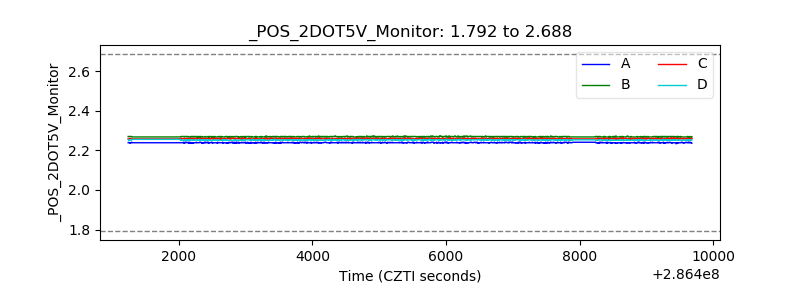

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

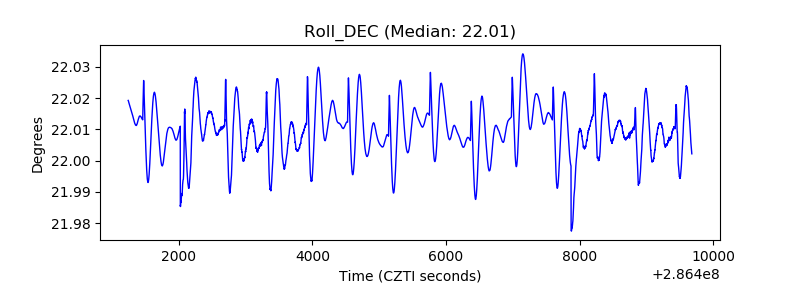

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
