| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000002682_18053cztM0_level2.evt | modeM0/AS1A06_003T04_9000002682_18053cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,912,000 | 98,876,160 |
| Size | 513.0 MB | 94.3 MB |
| Events in quadrant A | 3,373,185 | 645,272 |
| Events in quadrant B | 3,848,900 | 644,292 |
| Events in quadrant C | 3,380,306 | 615,929 |
| Events in quadrant D | 5,204,264 | 592,100 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14826 | 2 |
| B | 0 | 16040 | 2 |
| C | 0 | 14712 | 2 |
| D | 0 | 20203 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7126 | 47 | 0.659557% |
| B | 7127 | 144 | 2.020485% |
| C | 7127 | 93 | 1.304897% |
| D | 7126 | 579 | 8.125175% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8516 | 7129 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8517 | 7130 | 61 | 61 | 0.72% | 0.86% |  |
| C | 8517 | 7130 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8516 | 7129 | 291 | 291 | 3.42% | 4.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 42661 | 237.09 | 863 | 842 | 176.4 |
| A | 14 | 111 | 10560 | 55.09 | 863 | 842 | 176.4 |
| A | 0 | 226 | 7416 | 37.27 | 863 | 842 | 176.4 |
| B | 3 | 64 | 259622 | 1575.45 | 857 | 835 | 164.3 |
| B | 7 | 220 | 89467 | 539.58 | 857 | 835 | 164.3 |
| B | 0 | 197 | 68506 | 411.97 | 857 | 835 | 164.3 |
| C | 14 | 238 | 127824 | 652.66 | 827 | 832 | 194.6 |
| C | 3 | 233 | 10469 | 49.53 | 827 | 832 | 194.6 |
| C | 0 | 207 | 8862 | 41.27 | 827 | 832 | 194.6 |
| D | 1 | 52 | 944196 | 4683.19 | 822 | 797 | 201.4 |
| D | 11 | 176 | 767622 | 3806.65 | 822 | 797 | 201.4 |
| D | 7 | 238 | 217109 | 1073.81 | 822 | 797 | 201.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

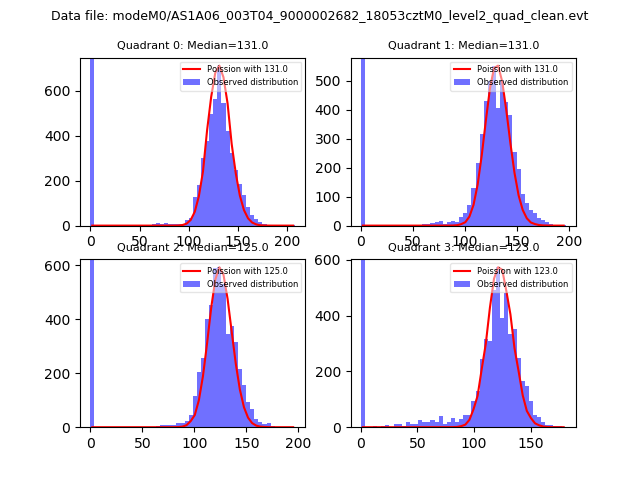

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

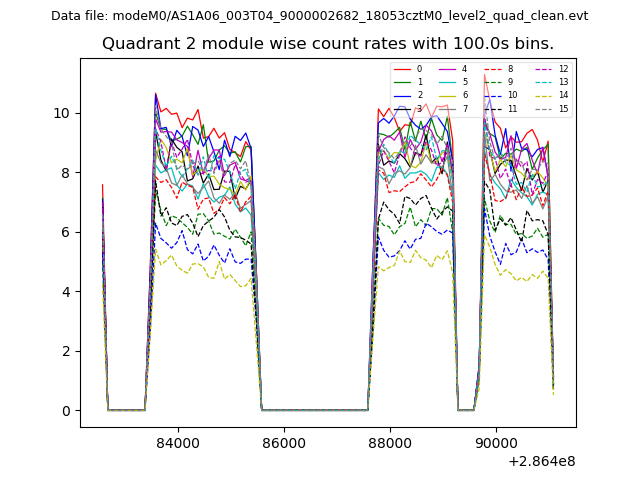

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
