| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000002682_18055cztM0_level2.evt | modeM0/AS1A06_003T04_9000002682_18055cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,554,240 | 110,203,200 |
| Size | 573.7 MB | 105.1 MB |
| Events in quadrant A | 4,075,469 | 701,453 |
| Events in quadrant B | 4,442,373 | 702,421 |
| Events in quadrant C | 4,110,136 | 672,931 |
| Events in quadrant D | 5,012,889 | 669,621 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17824 | 2 |
| B | 0 | 18774 | 2 |
| C | 0 | 17649 | 2 |
| D | 0 | 20655 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8511 | 89 | 1.045706% |
| B | 8512 | 190 | 2.232143% |
| C | 8512 | 118 | 1.386278% |
| D | 8512 | 84 | 0.986842% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

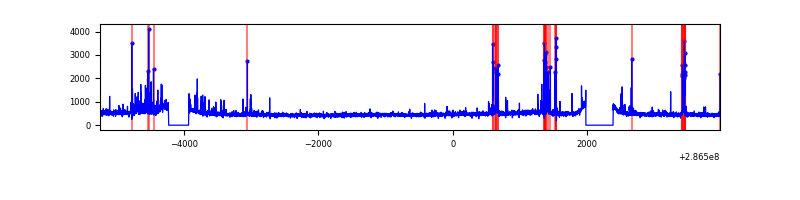

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9216 | 8513 | 6 | 6 | 0.07% | 0.07% |  |
| B | 9217 | 8514 | 39 | 39 | 0.42% | 0.46% |  |
| C | 9217 | 8514 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9217 | 8514 | 17 | 17 | 0.18% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 90941 | 428.88 | 1031 | 1007 | 209.7 |
| A | 8 | 144 | 17282 | 77.61 | 1031 | 1007 | 209.7 |
| A | 0 | 226 | 8734 | 36.85 | 1031 | 1007 | 209.7 |
| B | 3 | 64 | 254041 | 1279.01 | 1024 | 995 | 197.8 |
| B | 7 | 220 | 79565 | 397.13 | 1024 | 995 | 197.8 |
| B | 0 | 197 | 35193 | 172.85 | 1024 | 995 | 197.8 |
| C | 14 | 238 | 152079 | 644.0 | 991 | 998 | 234.6 |
| C | 0 | 207 | 63583 | 266.77 | 991 | 998 | 234.6 |
| C | 3 | 233 | 11667 | 45.48 | 991 | 998 | 234.6 |
| D | 5 | 222 | 507842 | 2054.64 | 1009 | 979 | 246.7 |
| D | 1 | 52 | 288923 | 1167.22 | 1009 | 979 | 246.7 |
| D | 7 | 238 | 137133 | 551.92 | 1009 | 979 | 246.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

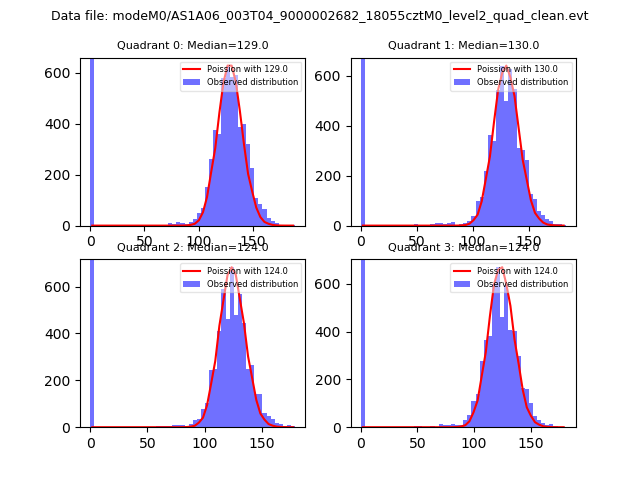

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

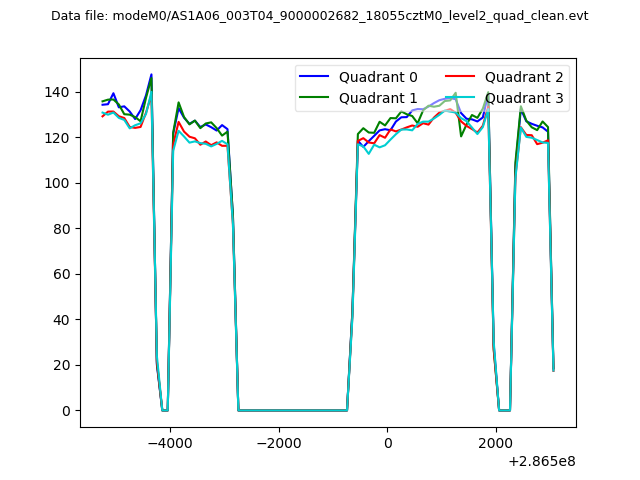

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

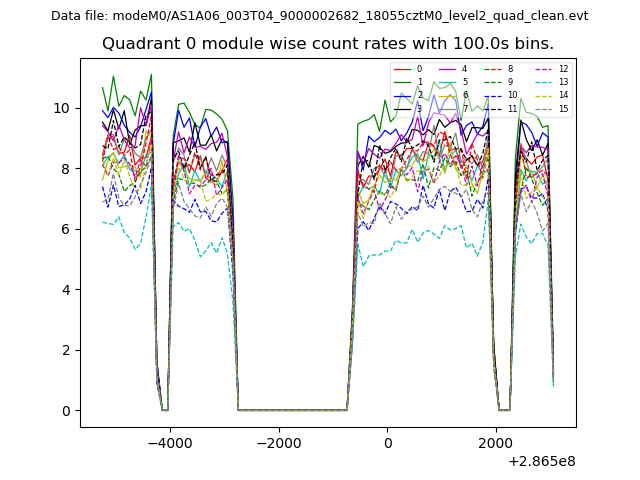

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

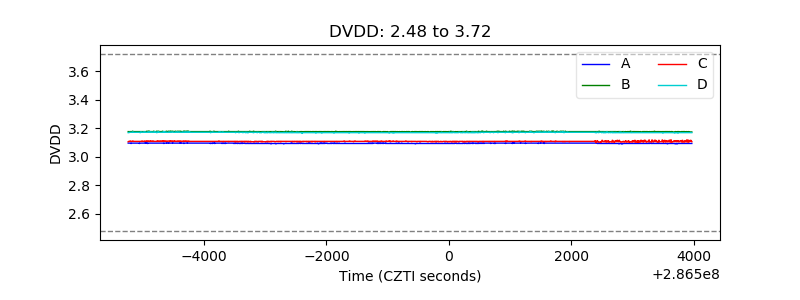

| D_VDD |  |

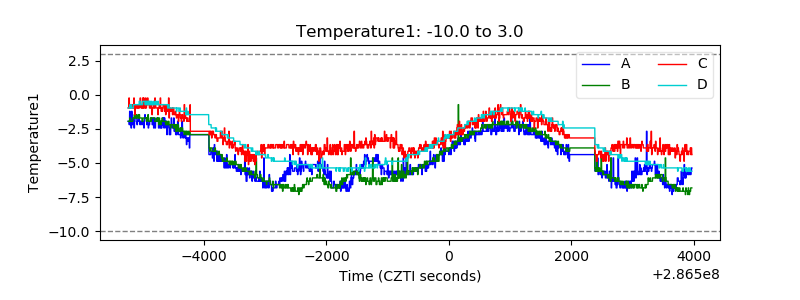

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

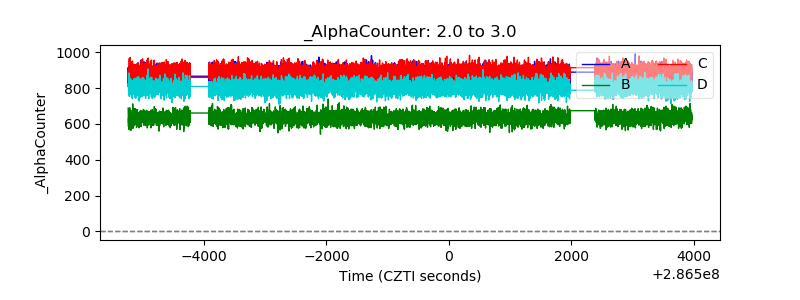

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

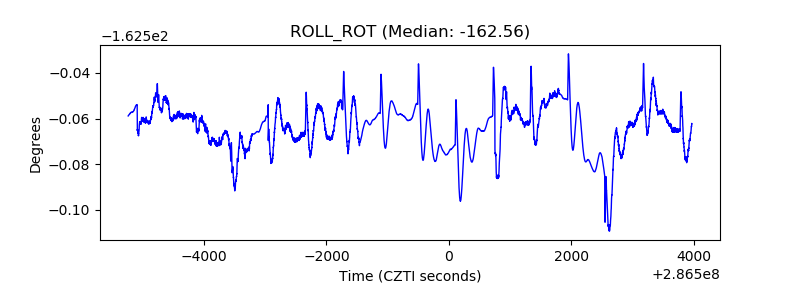

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
