| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000002682_18059cztM0_level2.evt | modeM0/AS1A06_003T04_9000002682_18059cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,335,360 | 79,632,000 |
| Size | 436.1 MB | 75.9 MB |
| Events in quadrant A | 3,334,808 | 496,094 |
| Events in quadrant B | 3,233,413 | 502,613 |
| Events in quadrant C | 3,189,137 | 477,629 |
| Events in quadrant D | 3,643,722 | 473,877 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14022 | 2 |
| B | 0 | 13720 | 2 |
| C | 0 | 13633 | 2 |
| D | 0 | 15108 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6614 | 61 | 0.922286% |
| B | 6614 | 64 | 0.967644% |
| C | 6614 | 77 | 1.164197% |
| D | 6613 | 48 | 0.725843% |

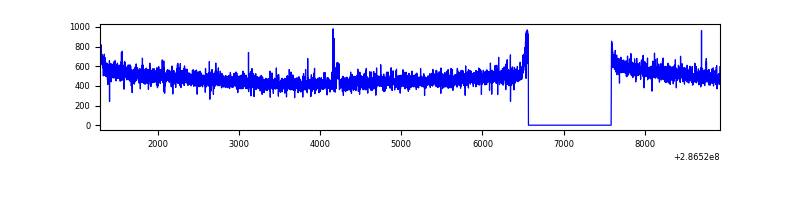

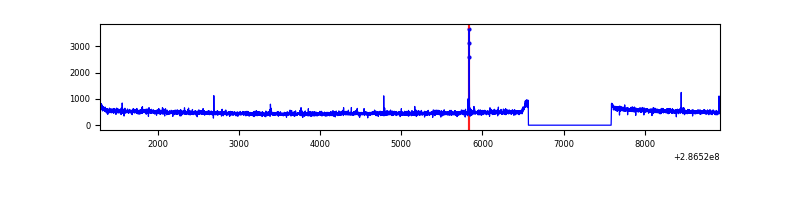

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7634 | 6615 | 14 | 14 | 0.18% | 0.21% |  |
| B | 7634 | 6615 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7634 | 6615 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7633 | 6614 | 23 | 23 | 0.30% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 129288 | 775.41 | 822 | 805 | 165.7 |
| A | 4 | 2 | 46903 | 278.21 | 822 | 805 | 165.7 |
| A | 0 | 226 | 7074 | 37.83 | 822 | 805 | 165.7 |
| B | 12 | 111 | 18674 | 112.96 | 821 | 798 | 158.3 |
| B | 11 | 111 | 16281 | 97.84 | 821 | 798 | 158.3 |
| B | 14 | 111 | 14131 | 84.25 | 821 | 798 | 158.3 |
| C | 14 | 238 | 122431 | 662.13 | 783 | 790 | 183.7 |
| C | 3 | 233 | 11279 | 57.1 | 783 | 790 | 183.7 |
| C | 13 | 61 | 5468 | 25.46 | 783 | 790 | 183.7 |
| D | 7 | 238 | 341731 | 1765.97 | 798 | 775 | 193.1 |
| D | 11 | 176 | 89002 | 456.97 | 798 | 775 | 193.1 |
| D | 5 | 222 | 77701 | 398.44 | 798 | 775 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

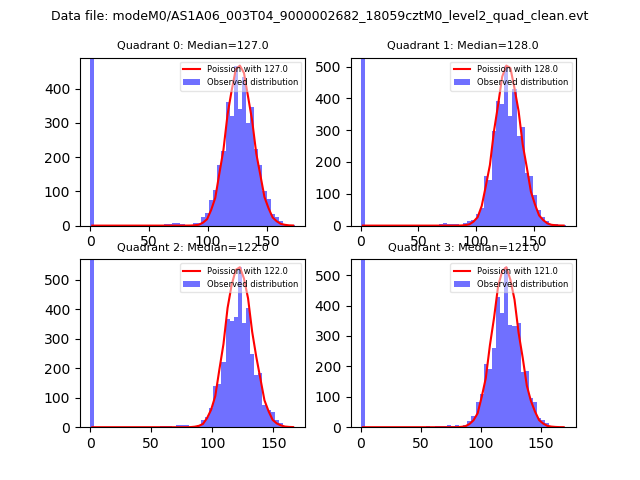

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

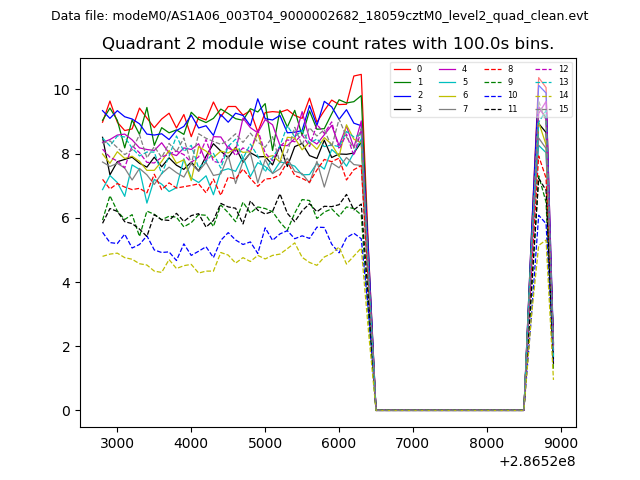

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

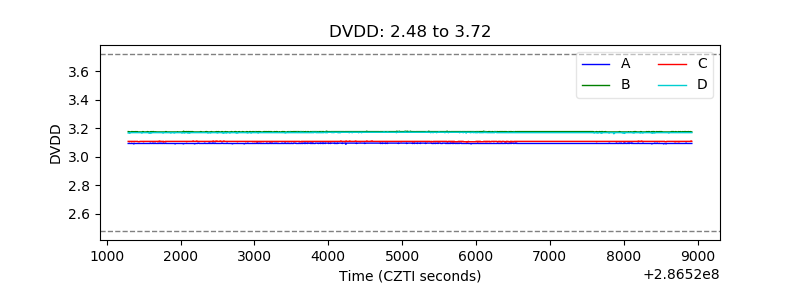

| D_VDD |  |

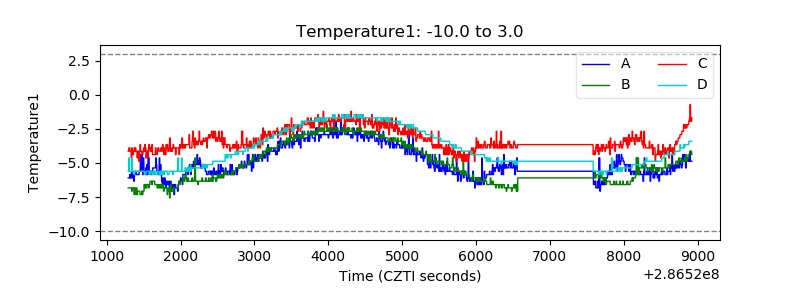

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

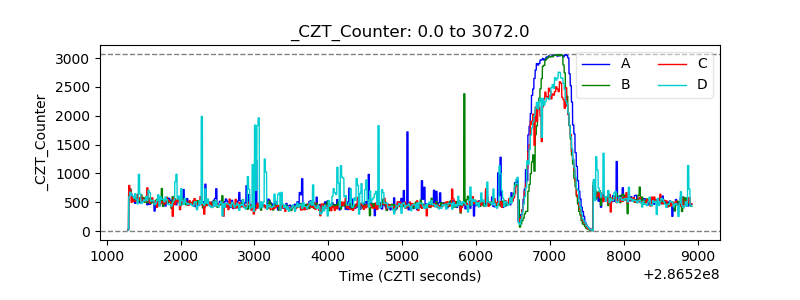

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

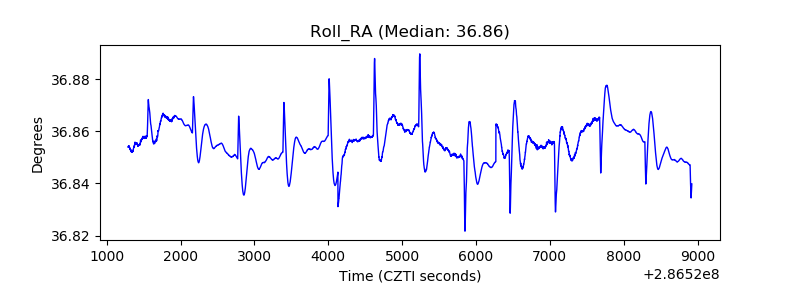

| _Roll_RA |  |
| Veto Counter |  |
