| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000002682_18065cztM0_level2.evt | modeM0/AS1A06_003T04_9000002682_18065cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,200,000 | 98,904,960 |
| Size | 504.7 MB | 94.3 MB |
| Events in quadrant A | 5,203,408 | 568,776 |
| Events in quadrant B | 3,401,535 | 687,696 |
| Events in quadrant C | 3,328,948 | 639,911 |
| Events in quadrant D | 3,647,900 | 642,500 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19988 | 2 |
| B | 0 | 14088 | 2 |
| C | 0 | 13843 | 3 |
| D | 0 | 15070 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6528 | 3042 | 46.599265% |
| B | 6528 | 103 | 1.577819% |
| C | 6527 | 128 | 1.961085% |
| D | 6527 | 136 | 2.083653% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7753 | 6529 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7753 | 6529 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7752 | 6528 | 5 | 5 | 0.06% | 0.08% |  |
| D | 7752 | 6528 | 45 | 45 | 0.58% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 2212188 | 14344.66 | 768 | 754 | 154.2 |
| A | 15 | 174 | 24625 | 154.84 | 768 | 754 | 154.2 |
| A | 4 | 2 | 16535 | 102.36 | 768 | 754 | 154.2 |
| B | 5 | 172 | 55333 | 344.75 | 841 | 824 | 158.1 |
| B | 0 | 189 | 24030 | 146.77 | 841 | 824 | 158.1 |
| B | 0 | 197 | 18715 | 113.16 | 841 | 824 | 158.1 |
| C | 14 | 238 | 126462 | 679.41 | 803 | 808 | 184.9 |
| C | 9 | 160 | 26877 | 140.96 | 803 | 808 | 184.9 |
| C | 3 | 233 | 20672 | 107.41 | 803 | 808 | 184.9 |
| D | 7 | 238 | 204895 | 1012.91 | 829 | 807 | 201.5 |
| D | 11 | 176 | 123662 | 609.74 | 829 | 807 | 201.5 |
| D | 10 | 70 | 84438 | 415.07 | 829 | 807 | 201.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

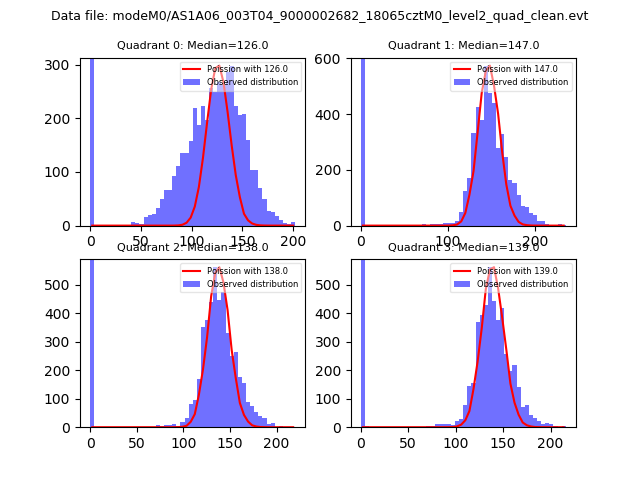

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

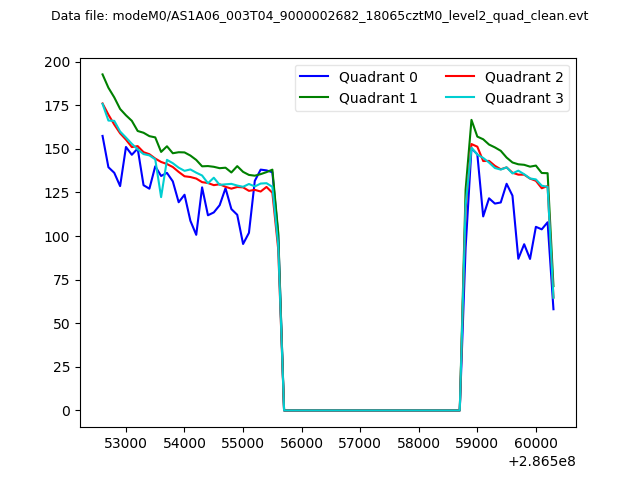

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

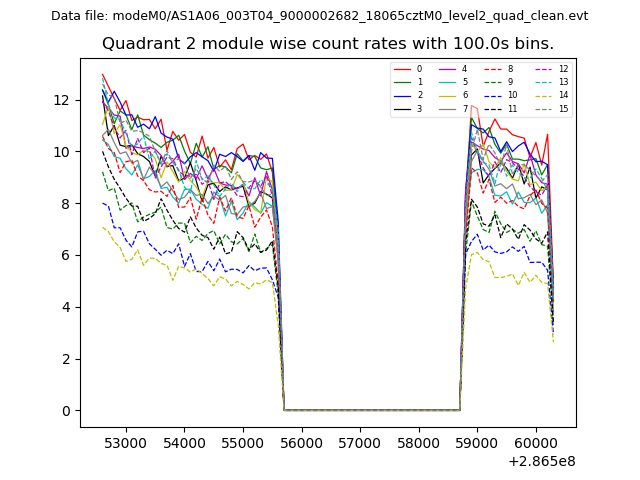

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

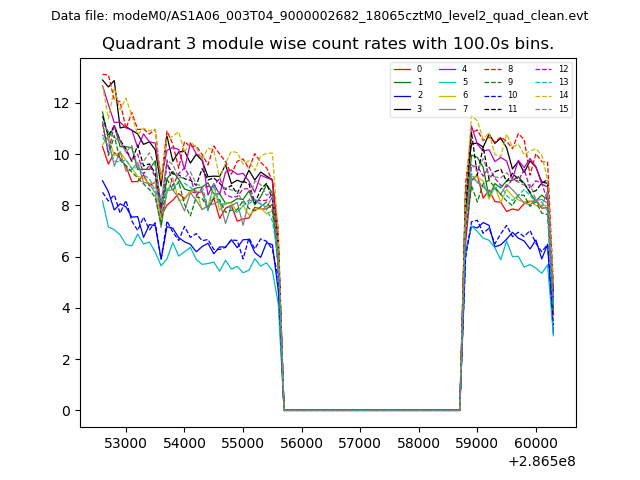

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

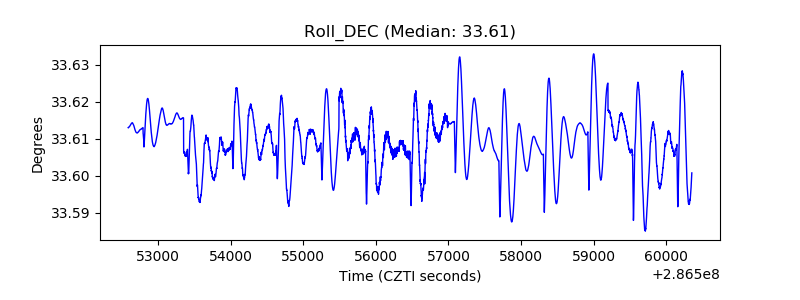

| _Roll_DEC |  |

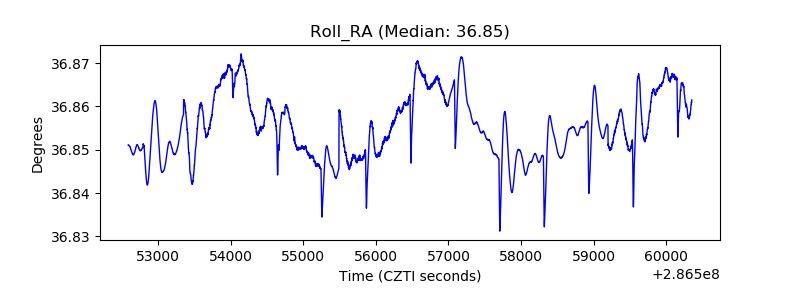

| _Roll_RA |  |

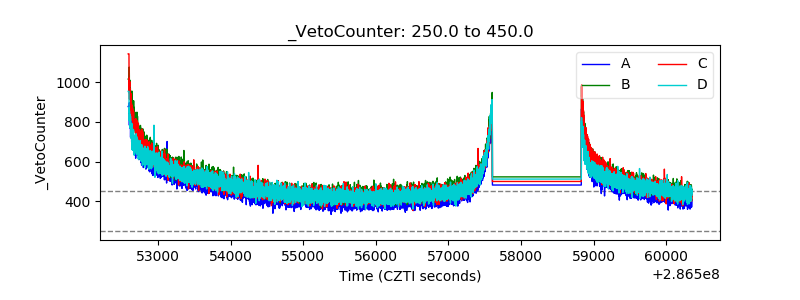

| Veto Counter |  |
