| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002684_18081cztM0_level2.evt | modeM0/AS1A06_006T01_9000002684_18081cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,823,040 | 90,048,960 |
| Size | 508.1 MB | 85.9 MB |
| Events in quadrant A | 3,179,397 | 585,675 |
| Events in quadrant B | 3,286,227 | 582,631 |
| Events in quadrant C | 3,125,488 | 559,163 |
| Events in quadrant D | 6,099,841 | 541,398 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13775 | 1 |
| B | 0 | 13954 | 1 |
| C | 0 | 13573 | 1 |
| D | 0 | 22741 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6565 | 42 | 0.639756% |
| B | 6566 | 64 | 0.974718% |
| C | 6566 | 38 | 0.578739% |
| D | 6566 | 824 | 12.549497% |

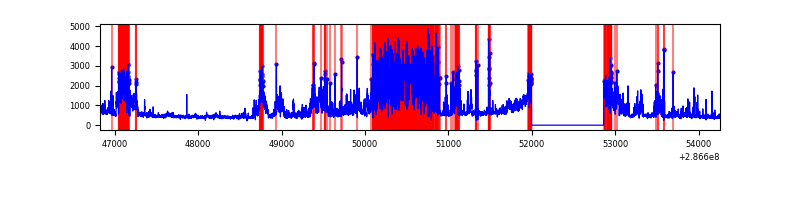

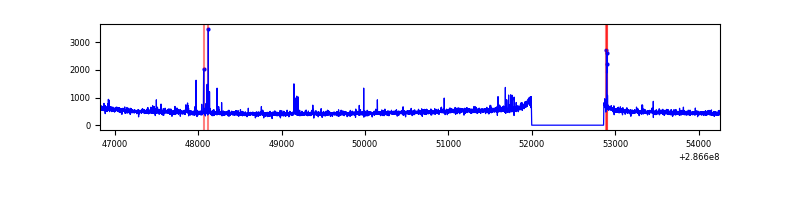

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 6566 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7431 | 6567 | 19 | 19 | 0.26% | 0.29% |  |
| C | 7431 | 6567 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7431 | 6567 | 618 | 618 | 8.32% | 9.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 69535 | 423.44 | 800 | 783 | 162.4 |
| A | 14 | 4 | 28997 | 173.77 | 800 | 783 | 162.4 |
| A | 15 | 174 | 7373 | 40.59 | 800 | 783 | 162.4 |
| B | 3 | 64 | 71775 | 463.07 | 795 | 773 | 153.3 |
| B | 7 | 220 | 43038 | 275.65 | 795 | 773 | 153.3 |
| B | 0 | 197 | 19310 | 120.9 | 795 | 773 | 153.3 |
| C | 14 | 238 | 117136 | 655.51 | 753 | 759 | 177.5 |
| C | 3 | 233 | 58368 | 324.49 | 753 | 759 | 177.5 |
| C | 9 | 160 | 6890 | 34.53 | 753 | 759 | 177.5 |
| D | 5 | 222 | 1874190 | 10466.46 | 730 | 709 | 179.0 |
| D | 11 | 176 | 773124 | 4315.2 | 730 | 709 | 179.0 |
| D | 7 | 38 | 494210 | 2757.01 | 730 | 709 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

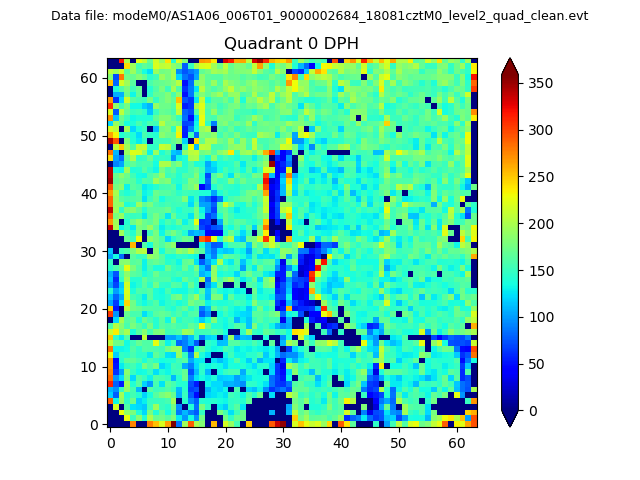

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

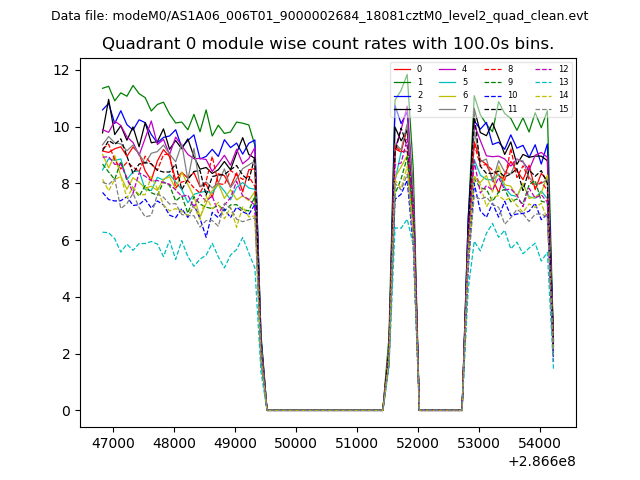

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

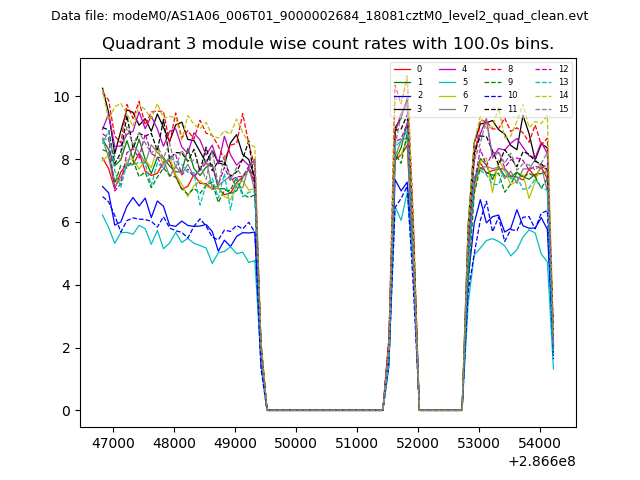

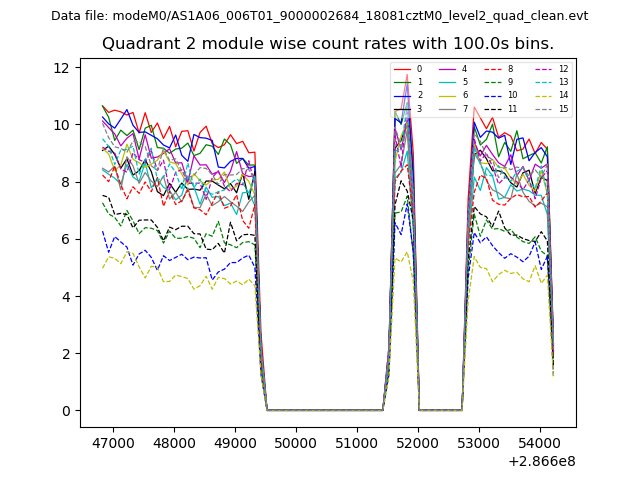

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

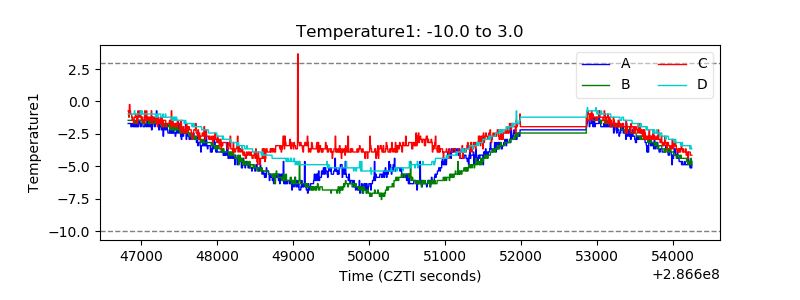

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

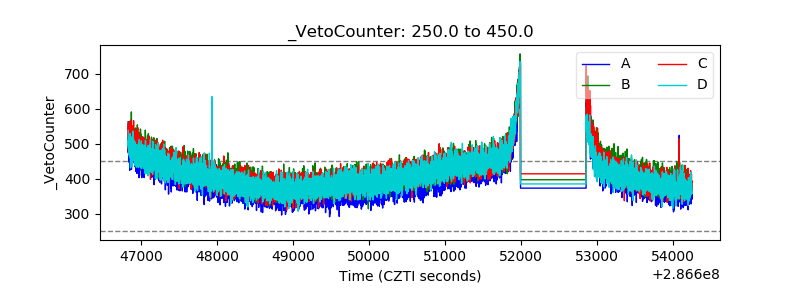

| Veto Counter |  |
