| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002688_18099cztM0_level2.evt | modeM0/AS1A05_019T01_9000002688_18099cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,393,920 | 103,216,320 |
| Size | 593.6 MB | 98.4 MB |
| Events in quadrant A | 3,734,891 | 669,929 |
| Events in quadrant B | 3,990,386 | 671,019 |
| Events in quadrant C | 3,779,458 | 641,218 |
| Events in quadrant D | 6,805,106 | 590,451 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16458 | 2 |
| B | 0 | 17085 | 2 |
| C | 0 | 16362 | 2 |
| D | 0 | 25584 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7957 | 74 | 0.929999% |
| B | 7958 | 123 | 1.545614% |
| C | 7958 | 125 | 1.570746% |
| D | 7958 | 950 | 11.937673% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8702 | 7959 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8703 | 7960 | 18 | 18 | 0.21% | 0.23% |  |
| C | 8703 | 7960 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8703 | 7960 | 746 | 746 | 8.57% | 9.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 60429 | 307.52 | 954 | 931 | 193.5 |
| A | 0 | 226 | 8374 | 38.47 | 954 | 931 | 193.5 |
| A | 3 | 137 | 7340 | 33.12 | 954 | 931 | 193.5 |
| B | 7 | 220 | 107728 | 583.89 | 952 | 926 | 182.9 |
| B | 3 | 64 | 74969 | 404.79 | 952 | 926 | 182.9 |
| B | 4 | 216 | 31827 | 168.94 | 952 | 926 | 182.9 |
| C | 14 | 238 | 140427 | 643.98 | 918 | 923 | 216.6 |
| C | 3 | 233 | 29887 | 133.7 | 918 | 923 | 216.6 |
| C | 8 | 128 | 11636 | 49.45 | 918 | 923 | 216.6 |
| D | 7 | 238 | 1971110 | 9083.89 | 883 | 855 | 216.9 |
| D | 11 | 176 | 780496 | 3594.55 | 883 | 855 | 216.9 |
| D | 12 | 110 | 315881 | 1452.43 | 883 | 855 | 216.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

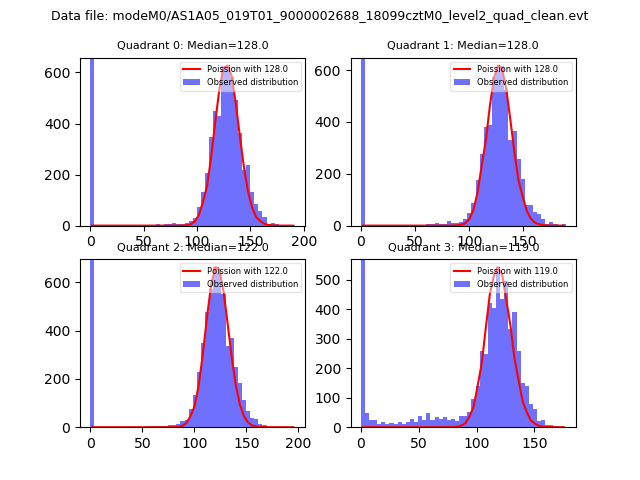

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

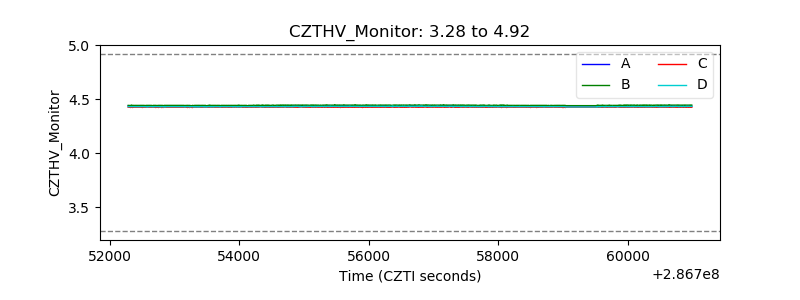

| CZT HV Monitor |  |
| D_VDD |  |

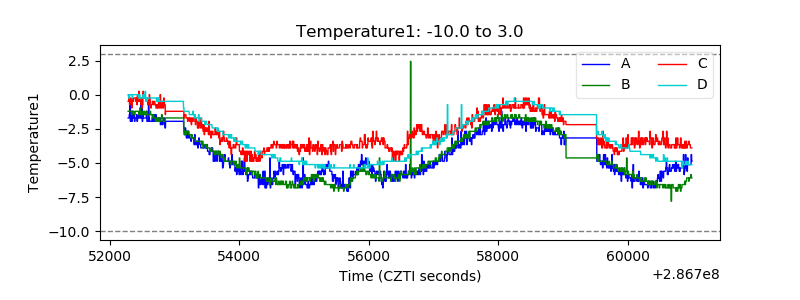

| Temperature 1 |  |
| Veto HV Monitor |  |

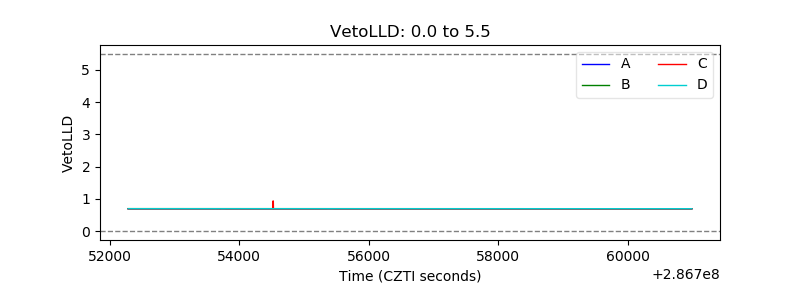

| Veto LLD |  |
| Alpha Counter |  |

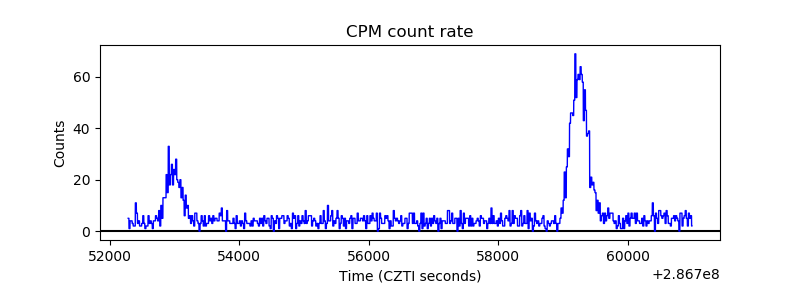

| _CPM_Rate |  |

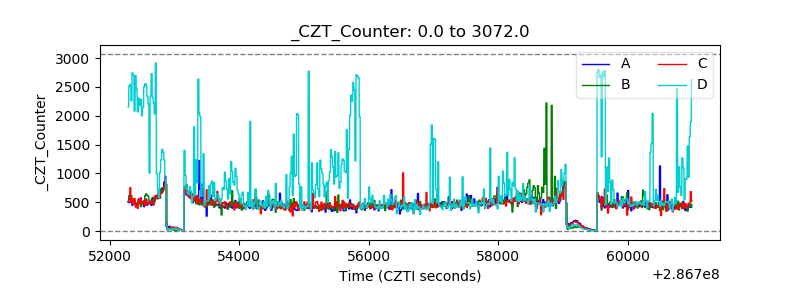

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
