| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002688_18111cztM0_level2.evt | modeM0/AS1A05_019T01_9000002688_18111cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,698,880 | 99,141,120 |
| Size | 547.1 MB | 94.5 MB |
| Events in quadrant A | 3,404,099 | 651,678 |
| Events in quadrant B | 3,948,693 | 651,540 |
| Events in quadrant C | 3,425,820 | 620,242 |
| Events in quadrant D | 6,106,874 | 576,637 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14919 | 2 |
| B | 0 | 16316 | 2 |
| C | 0 | 14878 | 2 |
| D | 0 | 22934 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7210 | 49 | 0.679612% |
| B | 7211 | 124 | 1.719595% |
| C | 7211 | 72 | 0.998475% |
| D | 7211 | 790 | 10.955485% |

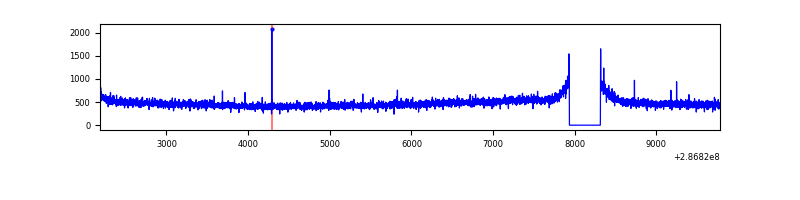

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7590 | 7211 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7591 | 7212 | 36 | 36 | 0.47% | 0.50% |  |
| C | 7591 | 7212 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7591 | 7212 | 642 | 642 | 8.46% | 8.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 12243 | 63.55 | 879 | 857 | 179.2 |
| A | 13 | 210 | 7927 | 39.46 | 879 | 857 | 179.2 |
| A | 15 | 174 | 7764 | 38.55 | 879 | 857 | 179.2 |
| B | 6 | 36 | 219120 | 1301.76 | 871 | 850 | 167.7 |
| B | 7 | 220 | 104381 | 617.46 | 871 | 850 | 167.7 |
| B | 5 | 172 | 59268 | 348.4 | 871 | 850 | 167.7 |
| C | 14 | 238 | 127428 | 637.02 | 838 | 841 | 198.7 |
| C | 0 | 207 | 12865 | 60.51 | 838 | 841 | 198.7 |
| C | 3 | 233 | 11097 | 51.61 | 838 | 841 | 198.7 |
| D | 7 | 238 | 2338206 | 11535.08 | 825 | 798 | 202.6 |
| D | 1 | 52 | 140608 | 689.96 | 825 | 798 | 202.6 |
| D | 11 | 176 | 119286 | 584.74 | 825 | 798 | 202.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

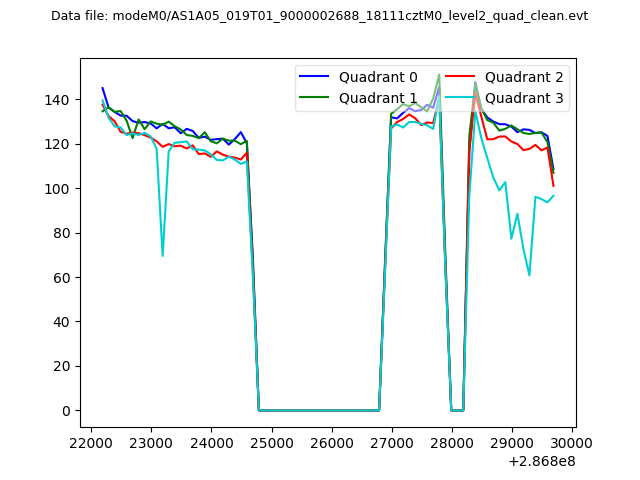

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

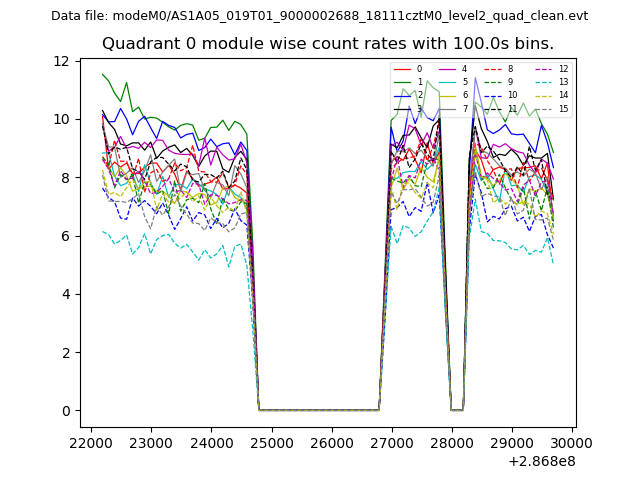

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

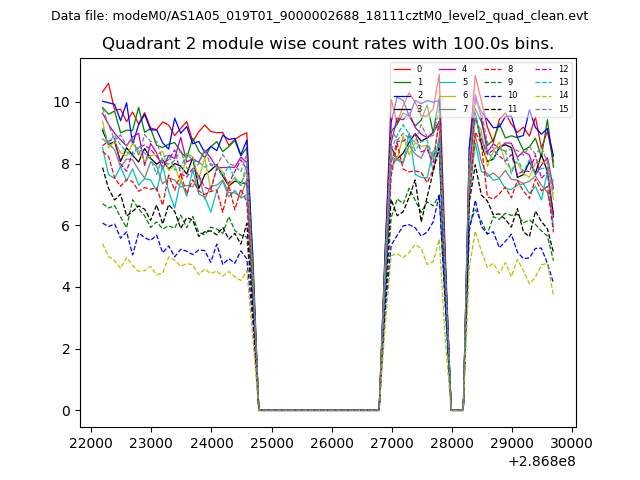

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

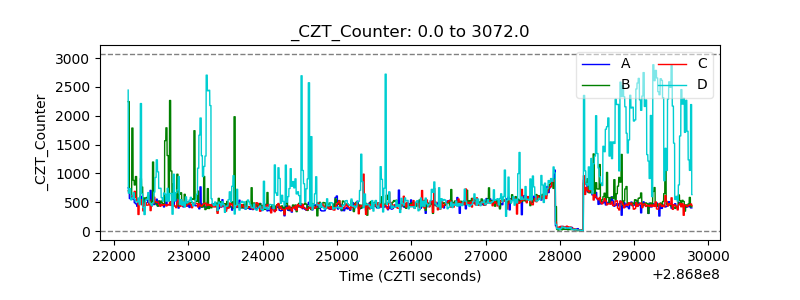

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

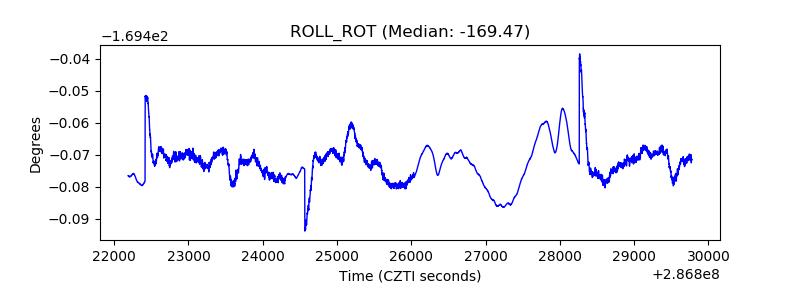

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

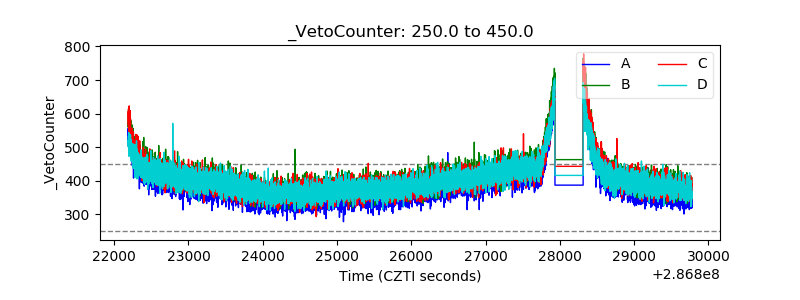

| Veto Counter |  |
