| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_080T01_9000002686_18090cztM0_level2.evt | modeM0/AS1T03_080T01_9000002686_18090cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,006,080 | 127,488,960 |
| Size | 415.8 MB | 121.6 MB |
| Events in quadrant A | 3,051,345 | 871,025 |
| Events in quadrant B | 3,082,767 | 874,437 |
| Events in quadrant C | 3,007,246 | 838,324 |
| Events in quadrant D | 3,628,626 | 832,046 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13176 | 1 |
| B | 0 | 13171 | 1 |
| C | 0 | 13055 | 1 |
| D | 0 | 15140 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6388 | 34 | 0.532248% |
| B | 6388 | 36 | 0.563557% |
| C | 6388 | 44 | 0.688791% |
| D | 6389 | 101 | 1.580842% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7523 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7523 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7523 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7524 | 6390 | 68 | 68 | 0.90% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 23162 | 143.23 | 779 | 762 | 156.4 |
| A | 4 | 2 | 19345 | 118.82 | 779 | 762 | 156.4 |
| A | 15 | 174 | 18406 | 112.82 | 779 | 762 | 156.4 |
| B | 0 | 189 | 42530 | 287.89 | 769 | 750 | 145.1 |
| B | 12 | 111 | 16856 | 110.98 | 769 | 750 | 145.1 |
| B | 11 | 111 | 14768 | 96.59 | 769 | 750 | 145.1 |
| C | 14 | 238 | 115824 | 673.36 | 736 | 738 | 170.9 |
| C | 3 | 233 | 13087 | 72.25 | 736 | 738 | 170.9 |
| C | 13 | 61 | 5183 | 26.0 | 736 | 738 | 170.9 |
| D | 11 | 176 | 704774 | 3883.91 | 748 | 724 | 181.3 |
| D | 7 | 96 | 40639 | 220.19 | 748 | 724 | 181.3 |
| D | 2 | 152 | 26491 | 142.14 | 748 | 724 | 181.3 |

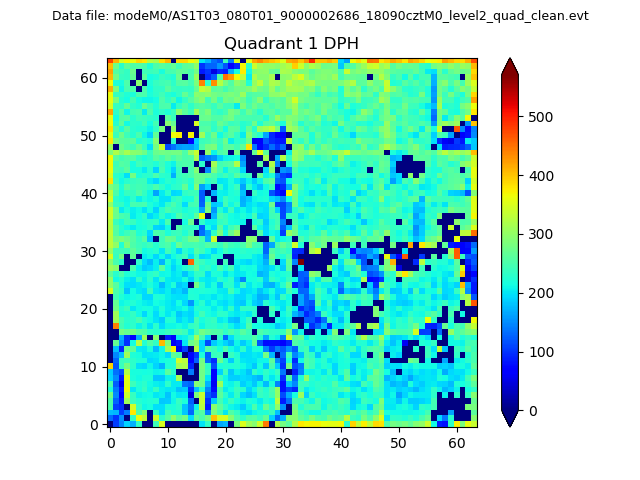

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

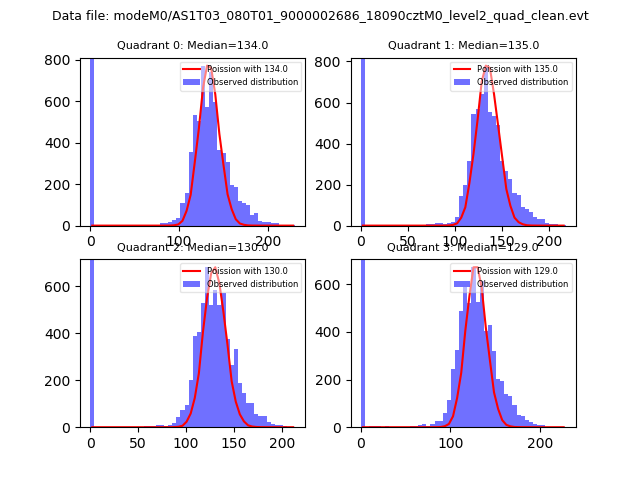

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

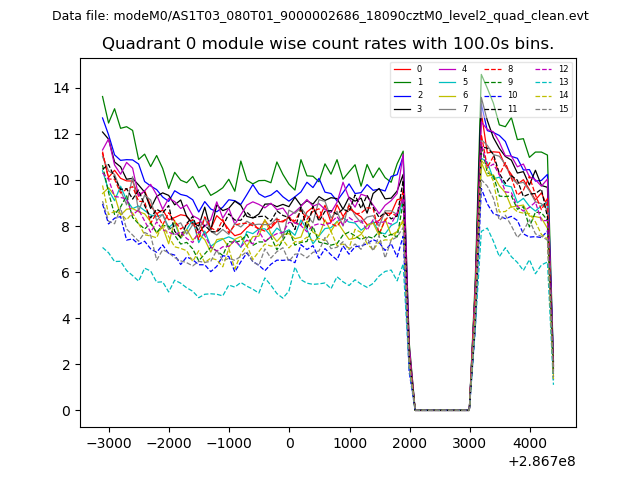

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

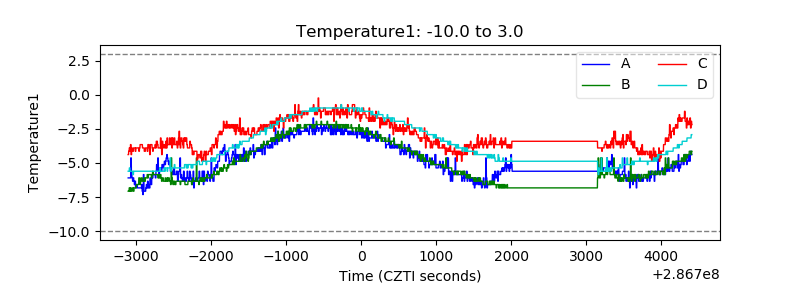

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

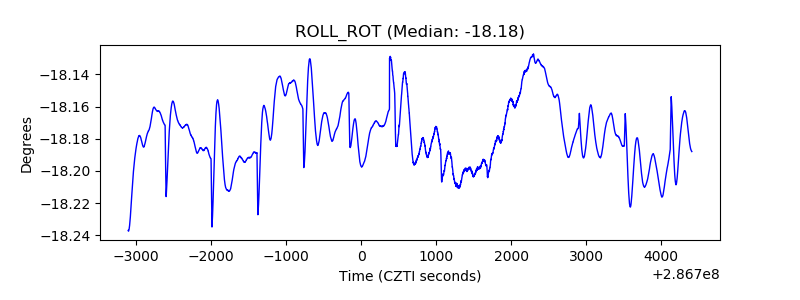

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
