| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_186T01_9000002692_18136cztM0_level2.evt | modeM0/AS1A05_186T01_9000002692_18136cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,848,320 | 73,658,880 |
| Size | 586.4 MB | 70.2 MB |
| Events in quadrant A | 3,546,723 | 508,391 |
| Events in quadrant B | 3,581,962 | 514,627 |
| Events in quadrant C | 3,468,654 | 476,347 |
| Events in quadrant D | 7,603,645 | 297,527 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14314 | 2 |
| B | 0 | 14433 | 2 |
| C | 0 | 14012 | 2 |
| D | 0 | 26643 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6199 | 98 | 1.580900% |
| B | 6198 | 114 | 1.839303% |
| C | 6198 | 114 | 1.839303% |
| D | 6198 | 1829 | 29.509519% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7554 | 6200 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7553 | 6199 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7553 | 6199 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7553 | 6199 | 1706 | 1706 | 22.59% | 27.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 63405 | 351.36 | 894 | 880 | 178.0 |
| A | 15 | 174 | 43527 | 239.66 | 894 | 880 | 178.0 |
| A | 0 | 226 | 7962 | 39.8 | 894 | 880 | 178.0 |
| B | 7 | 220 | 64020 | 380.96 | 888 | 871 | 165.8 |
| B | 0 | 189 | 22608 | 131.13 | 888 | 871 | 165.8 |
| B | 0 | 229 | 21828 | 126.43 | 888 | 871 | 165.8 |
| C | 14 | 238 | 129809 | 673.71 | 829 | 838 | 191.4 |
| C | 9 | 160 | 50501 | 259.42 | 829 | 838 | 191.4 |
| C | 9 | 176 | 41104 | 210.34 | 829 | 838 | 191.4 |
| D | 7 | 238 | 4335915 | 25850.24 | 704 | 685 | 167.7 |
| D | 11 | 176 | 405851 | 2415.94 | 704 | 685 | 167.7 |
| D | 12 | 110 | 67563 | 398.78 | 704 | 685 | 167.7 |

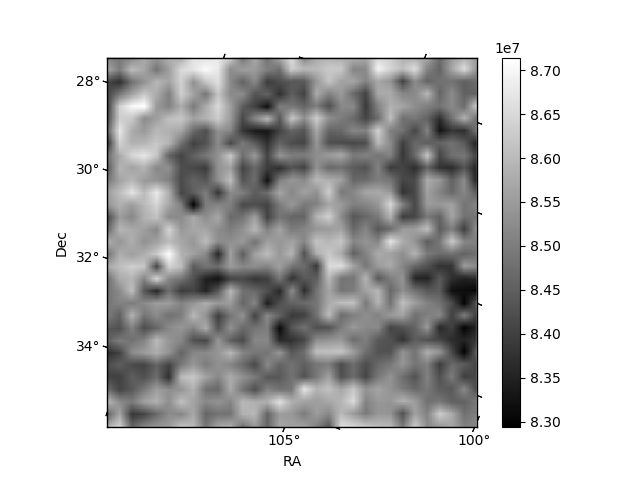

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

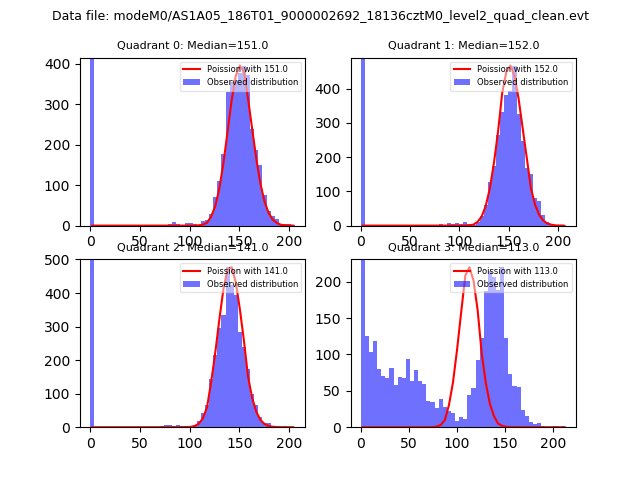

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

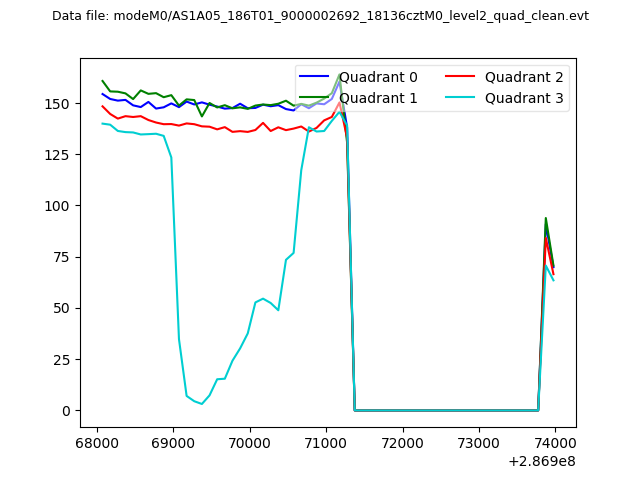

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

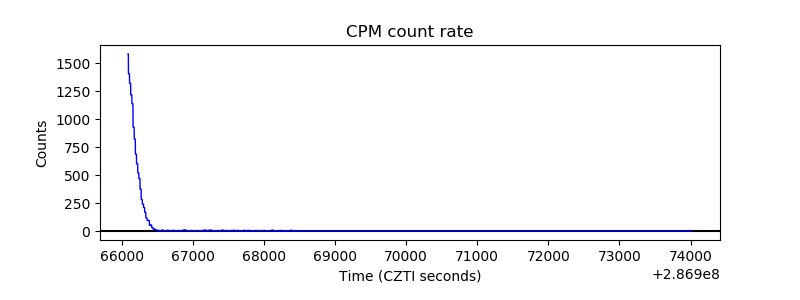

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
