| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_084T04_9000002694_18137cztM0_level2.evt | modeM0/AS1A05_084T04_9000002694_18137cztM0_level2_quad_clean.evt |
| Size (bytes) | 124,971,840 | 31,582,080 |
| Size | 119.2 MB | 30.1 MB |
| Events in quadrant A | 793,160 | 221,040 |
| Events in quadrant B | 805,788 | 223,547 |
| Events in quadrant C | 767,960 | 208,753 |
| Events in quadrant D | 1,321,778 | 199,951 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3192 | 1 |
| B | 0 | 3222 | 1 |
| C | 0 | 3081 | 1 |
| D | 0 | 4948 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1375 | 16 | 1.163636% |
| B | 1375 | 12 | 0.872727% |
| C | 1375 | 22 | 1.600000% |
| D | 1375 | 84 | 6.109091% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1375 | 1375 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1375 | 1375 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1375 | 1375 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1375 | 1375 | 34 | 34 | 2.47% | 2.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1925 | 41.14 | 205 | 201 | 41.9 |
| A | 0 | 226 | 1904 | 40.64 | 205 | 201 | 41.9 |
| A | 12 | 194 | 1582 | 32.95 | 205 | 201 | 41.9 |
| B | 7 | 220 | 7050 | 170.0 | 200 | 196 | 40.3 |
| B | 0 | 189 | 6469 | 155.59 | 200 | 196 | 40.3 |
| B | 4 | 171 | 5169 | 123.35 | 200 | 196 | 40.3 |
| C | 14 | 238 | 29210 | 634.71 | 188 | 189 | 45.7 |
| C | 13 | 61 | 1419 | 26.9 | 188 | 189 | 45.7 |
| C | 5 | 218 | 1262 | 23.47 | 188 | 189 | 45.7 |
| D | 7 | 238 | 316480 | 6365.64 | 192 | 186 | 49.7 |
| D | 11 | 176 | 144855 | 2911.57 | 192 | 186 | 49.7 |
| D | 12 | 110 | 85249 | 1711.95 | 192 | 186 | 49.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

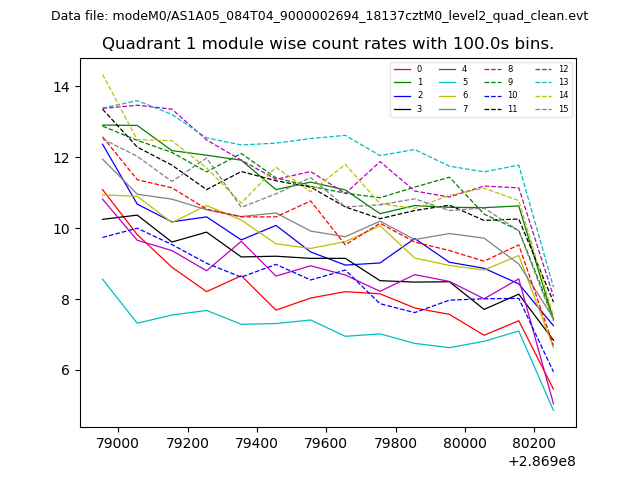

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

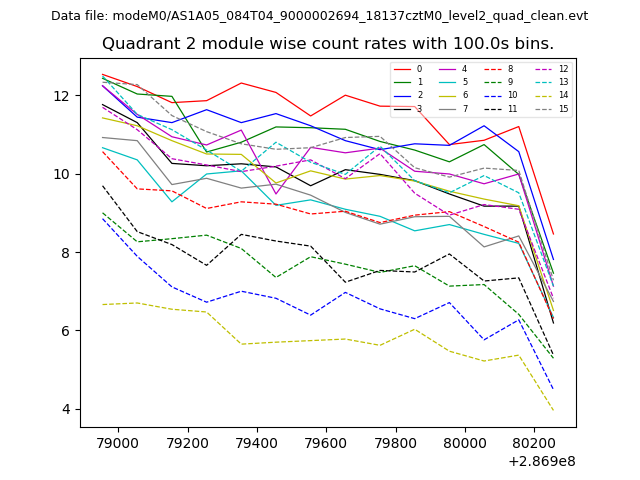

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

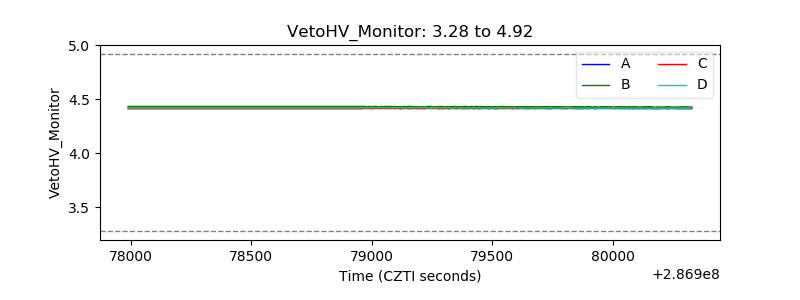

| Veto HV Monitor |  |
| Veto LLD |  |

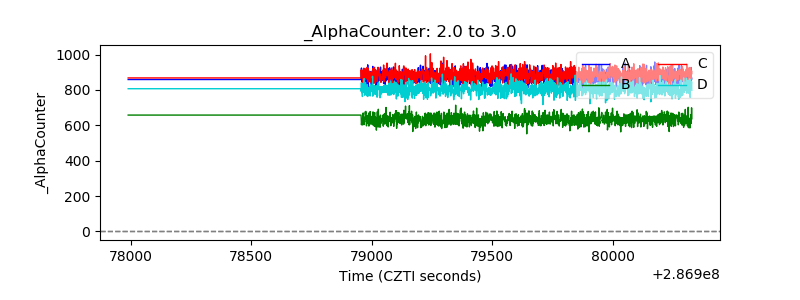

| Alpha Counter |  |

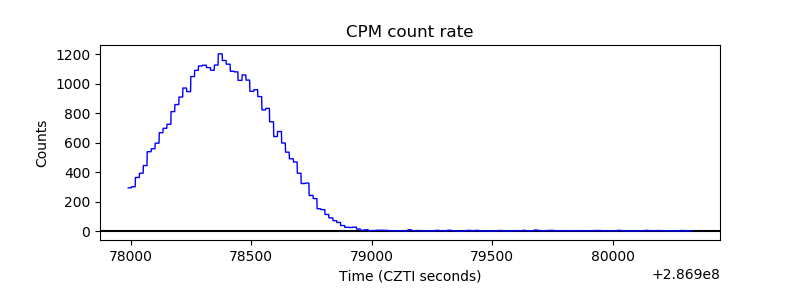

| _CPM_Rate |  |

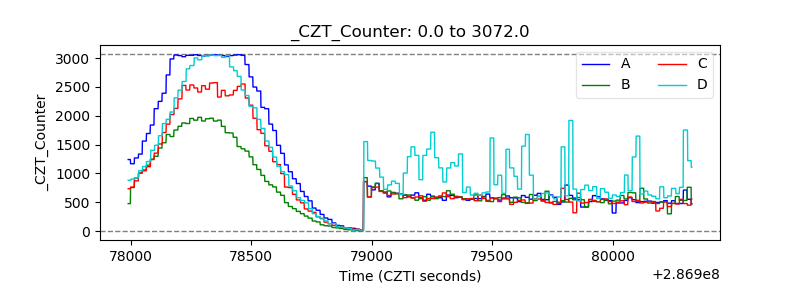

| CZT Counter |  |
| +2.5 Volts monitor |  |

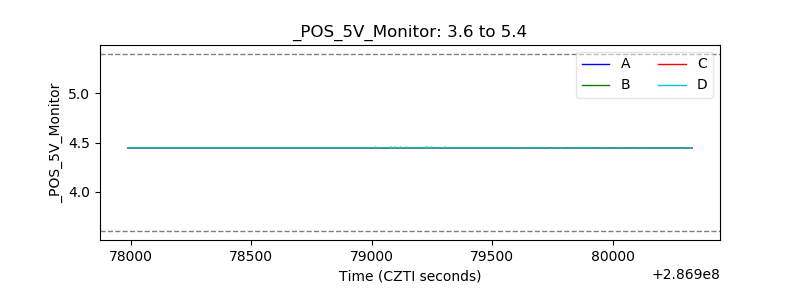

| +5 Volts monitor |  |
| _ROLL_ROT |  |

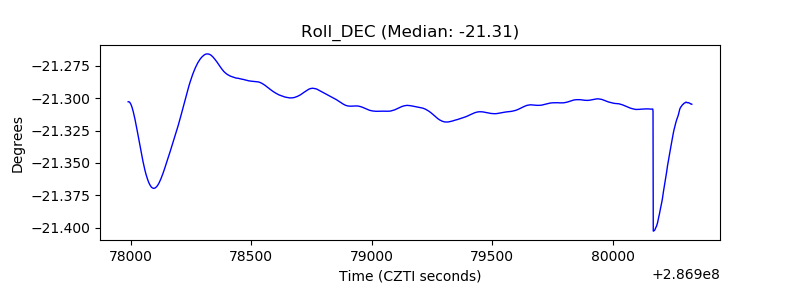

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
