| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_035T01_9000002696_18140cztM0_level2.evt | modeM0/AS1T03_035T01_9000002696_18140cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,314,240 | 92,620,800 |
| Size | 587.8 MB | 88.3 MB |
| Events in quadrant A | 4,196,056 | 564,203 |
| Events in quadrant B | 4,016,472 | 585,008 |
| Events in quadrant C | 3,883,274 | 566,045 |
| Events in quadrant D | 6,039,233 | 545,418 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17428 | 2 |
| B | 0 | 16789 | 2 |
| C | 0 | 16405 | 2 |
| D | 0 | 23237 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7825 | 231 | 2.952077% |
| B | 7826 | 181 | 2.312803% |
| C | 7825 | 185 | 2.364217% |
| D | 7825 | 313 | 4.000000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8990 | 7827 | 109 | 109 | 1.21% | 1.39% |  |
| B | 8991 | 7828 | 8 | 8 | 0.09% | 0.10% |  |
| C | 8990 | 7827 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8990 | 7827 | 172 | 172 | 1.91% | 2.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 348785 | 1729.14 | 990 | 966 | 201.2 |
| A | 4 | 2 | 31792 | 153.25 | 990 | 966 | 201.2 |
| A | 0 | 226 | 8775 | 38.82 | 990 | 966 | 201.2 |
| B | 7 | 220 | 51781 | 264.26 | 994 | 970 | 192.3 |
| B | 0 | 189 | 26553 | 133.05 | 994 | 970 | 192.3 |
| B | 12 | 111 | 22440 | 111.66 | 994 | 970 | 192.3 |
| C | 14 | 238 | 145225 | 644.67 | 951 | 954 | 223.8 |
| C | 3 | 233 | 14897 | 62.3 | 951 | 954 | 223.8 |
| C | 5 | 218 | 12719 | 52.57 | 951 | 954 | 223.8 |
| D | 7 | 238 | 1936905 | 8129.28 | 961 | 931 | 238.1 |
| D | 12 | 110 | 152499 | 636.44 | 961 | 931 | 238.1 |
| D | 11 | 176 | 105487 | 439.04 | 961 | 931 | 238.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

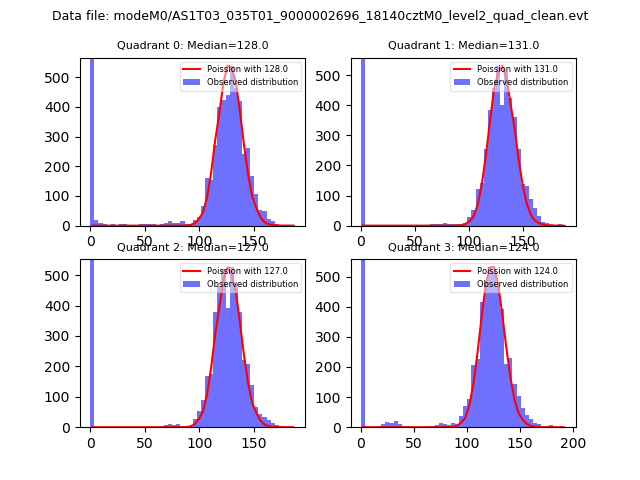

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

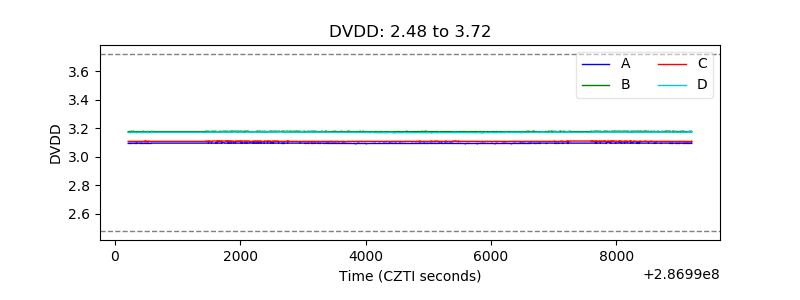

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

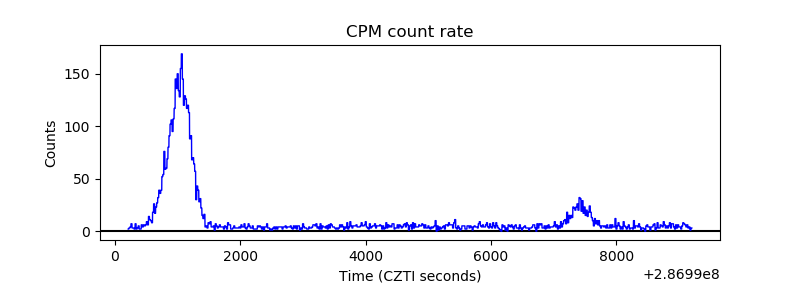

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

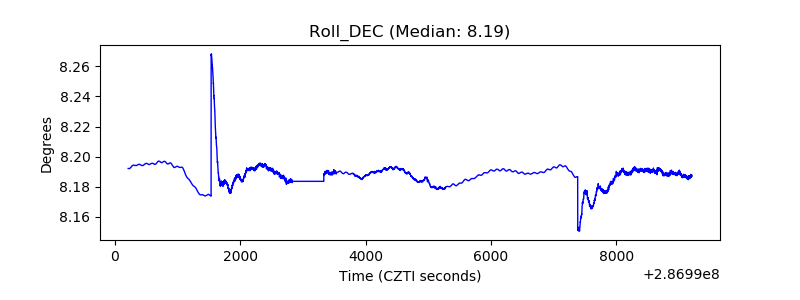

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
