| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_103T01_9000002700_18152cztM0_level2.evt | modeM0/AS1A05_103T01_9000002700_18152cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,432,320 | 67,567,680 |
| Size | 502.0 MB | 64.4 MB |
| Events in quadrant A | 3,476,706 | 403,278 |
| Events in quadrant B | 3,584,703 | 406,908 |
| Events in quadrant C | 3,511,111 | 393,073 |
| Events in quadrant D | 4,927,722 | 387,101 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14223 | 2 |
| B | 0 | 14648 | 2 |
| C | 0 | 14286 | 2 |
| D | 0 | 19057 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6532 | 102 | 1.561543% |
| B | 6532 | 112 | 1.714636% |
| C | 6532 | 122 | 1.867728% |
| D | 6532 | 362 | 5.541947% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

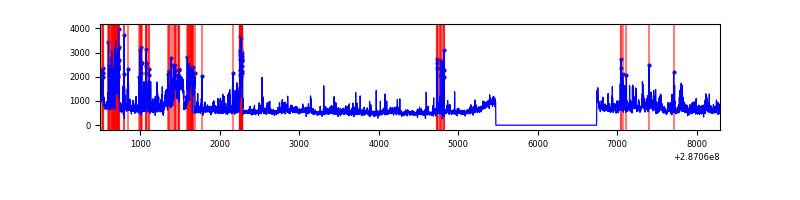

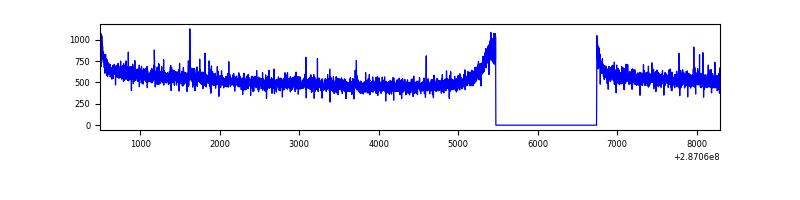

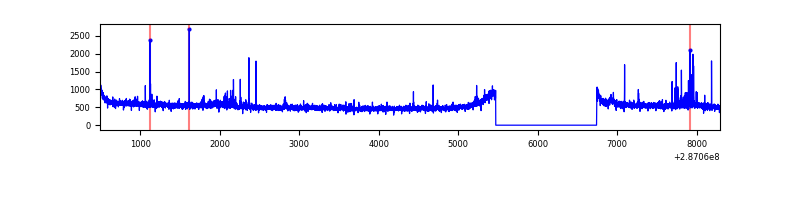

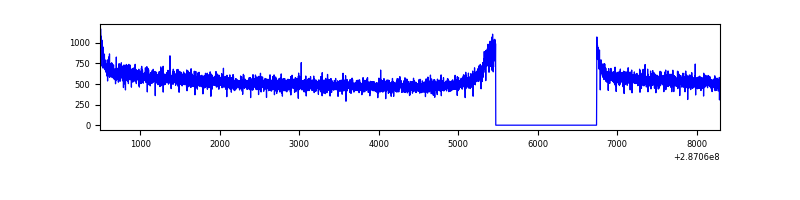

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7802 | 6533 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7802 | 6533 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7802 | 6533 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7802 | 6533 | 140 | 140 | 1.79% | 2.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 16659 | 88.15 | 899 | 883 | 179.0 |
| A | 0 | 226 | 7891 | 39.16 | 899 | 883 | 179.0 |
| A | 4 | 2 | 6799 | 33.06 | 899 | 883 | 179.0 |
| B | 7 | 220 | 58672 | 344.62 | 887 | 869 | 167.7 |
| B | 0 | 189 | 25668 | 147.85 | 887 | 869 | 167.7 |
| B | 12 | 111 | 19192 | 109.24 | 887 | 869 | 167.7 |
| C | 14 | 238 | 135187 | 669.2 | 861 | 867 | 200.7 |
| C | 5 | 218 | 10064 | 45.82 | 861 | 867 | 200.7 |
| C | 13 | 61 | 6248 | 26.81 | 861 | 867 | 200.7 |
| D | 13 | 187 | 825583 | 3899.74 | 868 | 845 | 211.5 |
| D | 7 | 238 | 331983 | 1565.77 | 868 | 845 | 211.5 |
| D | 12 | 110 | 225798 | 1063.68 | 868 | 845 | 211.5 |

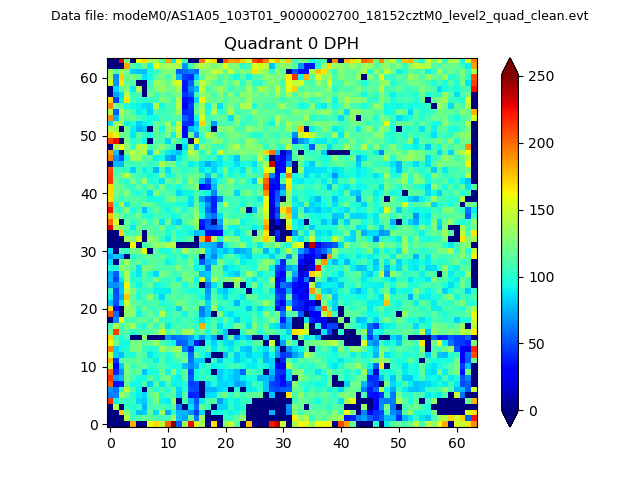

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

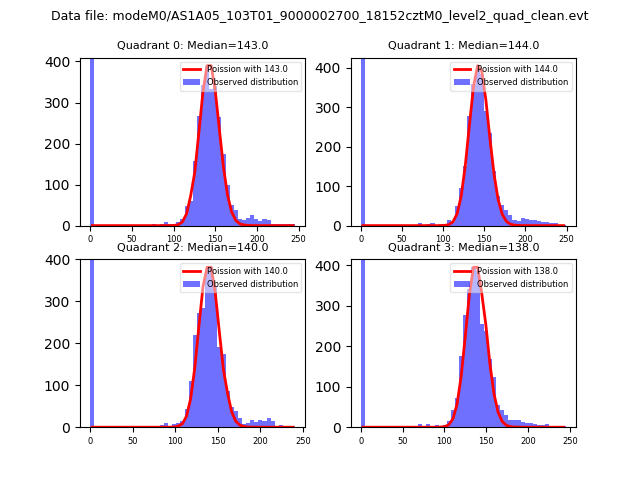

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

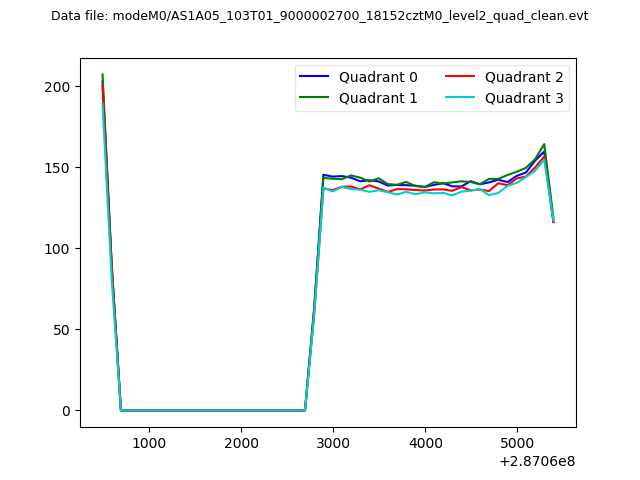

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

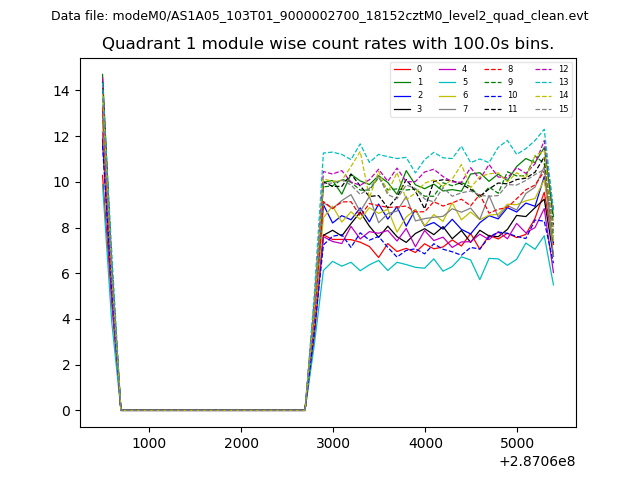

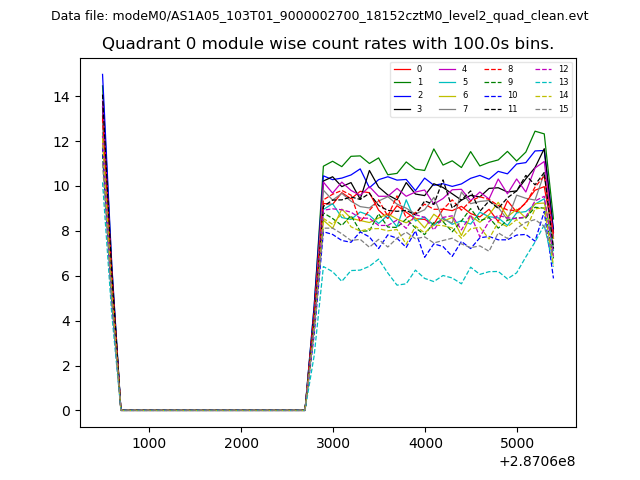

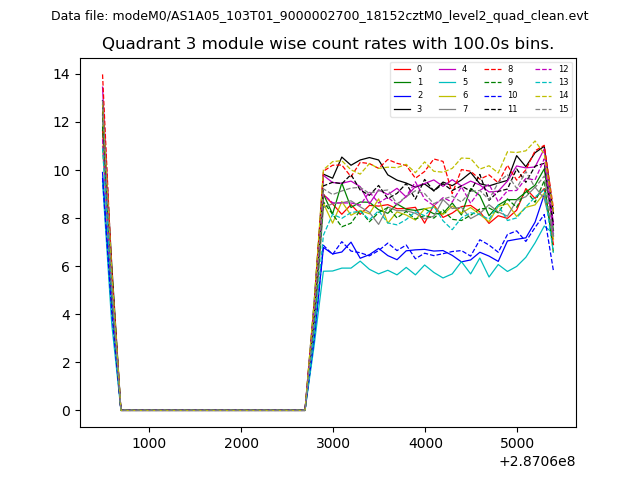

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

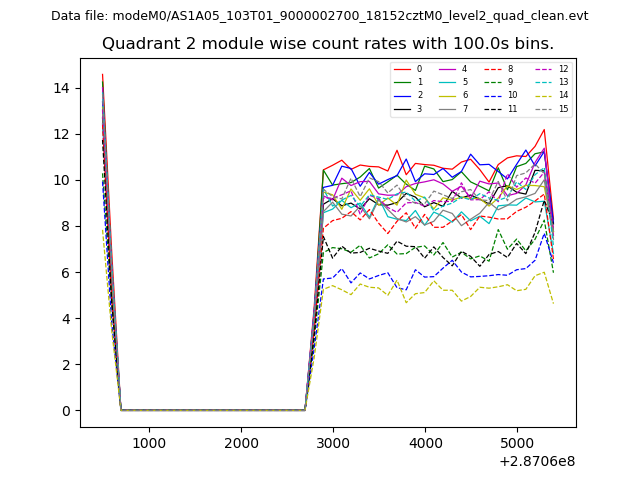

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

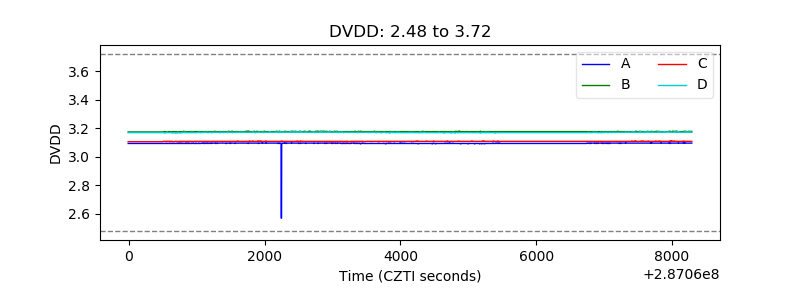

| D_VDD |  |

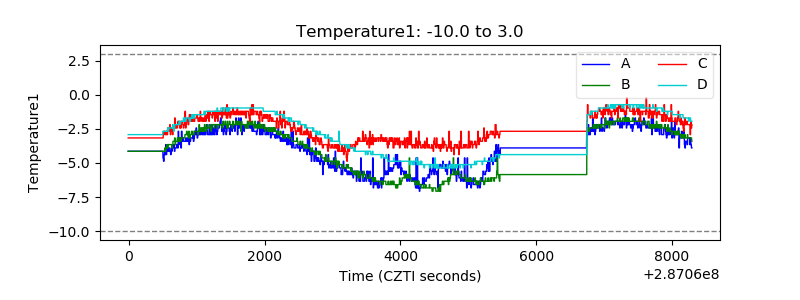

| Temperature 1 |  |
| Veto HV Monitor |  |

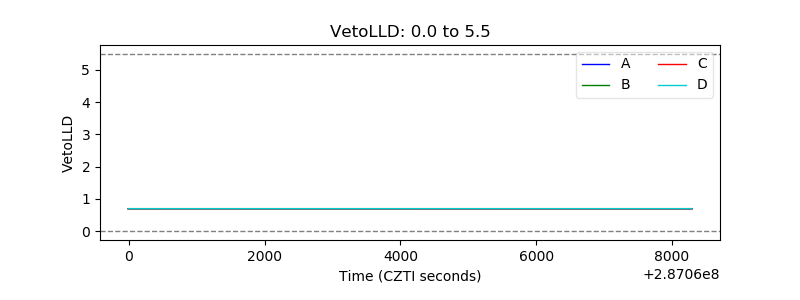

| Veto LLD |  |
| Alpha Counter |  |

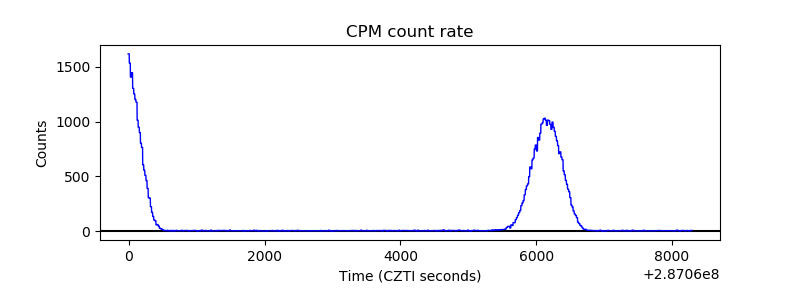

| _CPM_Rate |  |

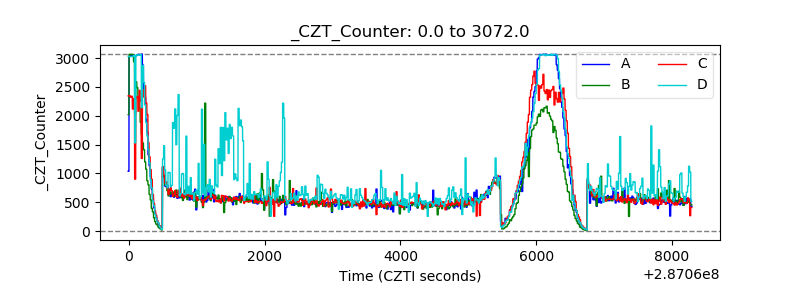

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

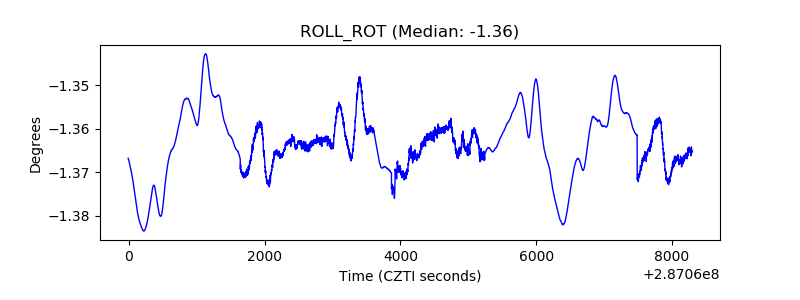

| _ROLL_ROT |  |

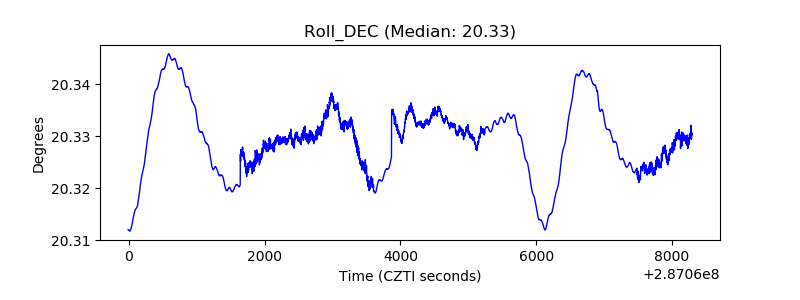

| _Roll_DEC |  |

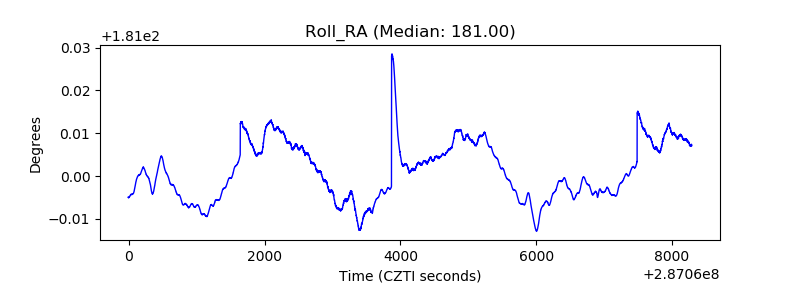

| _Roll_RA |  |
| Veto Counter |  |
