| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_194T05_9000002702_18154cztM0_level2.evt | modeM0/AS1A05_194T05_9000002702_18154cztM0_level2_quad_clean.evt |
| Size (bytes) | 345,643,200 | 54,849,600 |
| Size | 329.6 MB | 52.3 MB |
| Events in quadrant A | 2,118,557 | 344,456 |
| Events in quadrant B | 2,268,653 | 348,184 |
| Events in quadrant C | 2,137,851 | 339,195 |
| Events in quadrant D | 3,651,527 | 327,684 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9005 | 1 |
| B | 0 | 9486 | 1 |
| C | 0 | 8991 | 1 |
| D | 0 | 13875 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88 | 0 |
| B | 0 | 88 | 0 |
| C | 0 | 88 | 0 |
| D | 0 | 88 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4283 | 90 | 2.101331% |
| B | 4283 | 122 | 2.848471% |
| C | 4283 | 120 | 2.801774% |
| D | 4282 | 212 | 4.950957% |

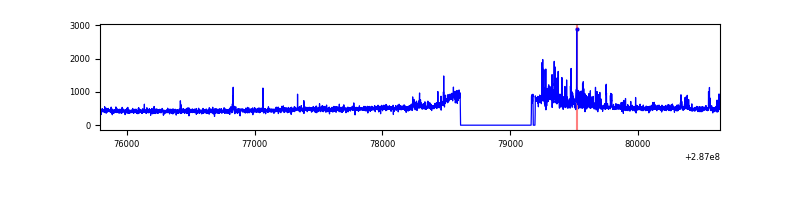

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4853 | 4285 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4853 | 4285 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4853 | 4285 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4852 | 4284 | 58 | 58 | 1.20% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 17193 | 148.91 | 542 | 531 | 111.9 |
| A | 15 | 174 | 16045 | 138.65 | 542 | 531 | 111.9 |
| A | 0 | 226 | 4984 | 39.8 | 542 | 531 | 111.9 |
| B | 7 | 220 | 98646 | 919.15 | 540 | 525 | 106.8 |
| B | 4 | 216 | 17036 | 154.67 | 540 | 525 | 106.8 |
| B | 12 | 111 | 11791 | 105.53 | 540 | 525 | 106.8 |
| C | 14 | 238 | 79640 | 640.99 | 520 | 524 | 123.4 |
| C | 3 | 233 | 10341 | 79.54 | 520 | 524 | 123.4 |
| C | 0 | 207 | 8258 | 62.66 | 520 | 524 | 123.4 |
| D | 7 | 238 | 1209423 | 9385.12 | 522 | 507 | 128.8 |
| D | 13 | 187 | 235625 | 1825.28 | 522 | 507 | 128.8 |
| D | 12 | 110 | 58751 | 452.16 | 522 | 507 | 128.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

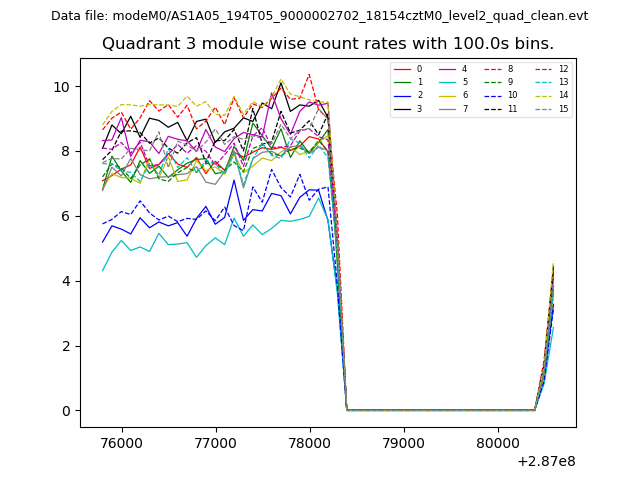

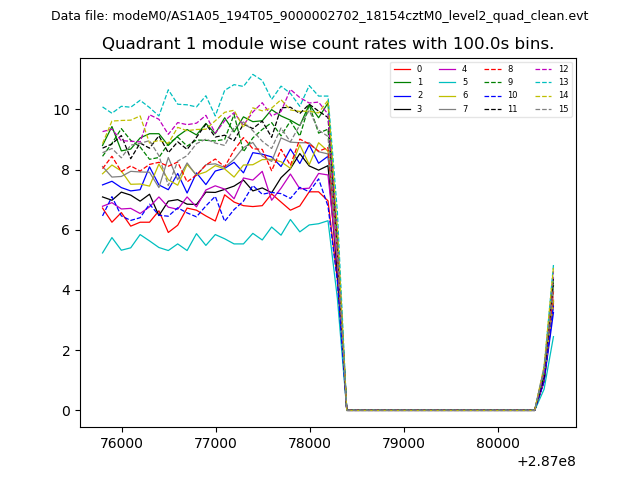

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

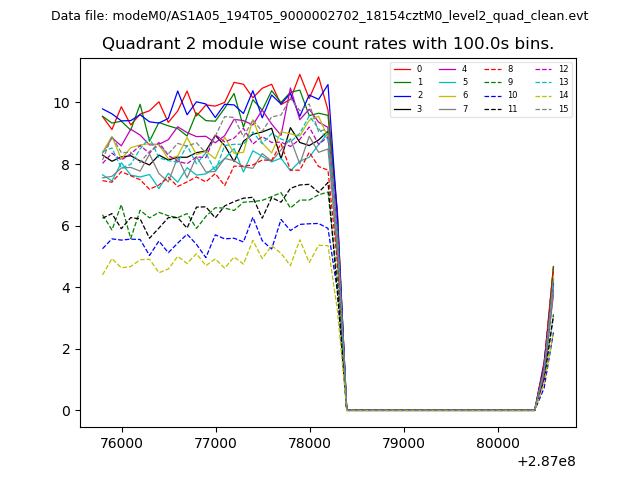

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

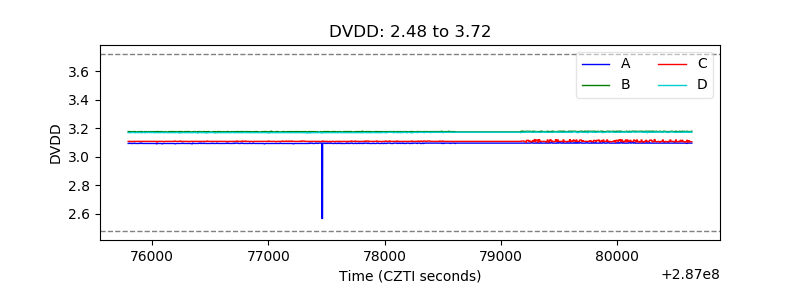

| D_VDD |  |
| Temperature 1 |  |

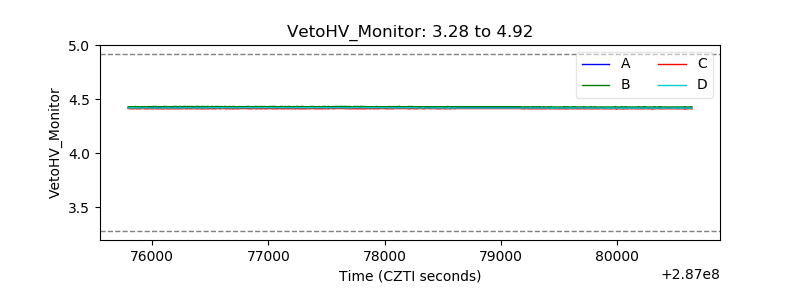

| Veto HV Monitor |  |

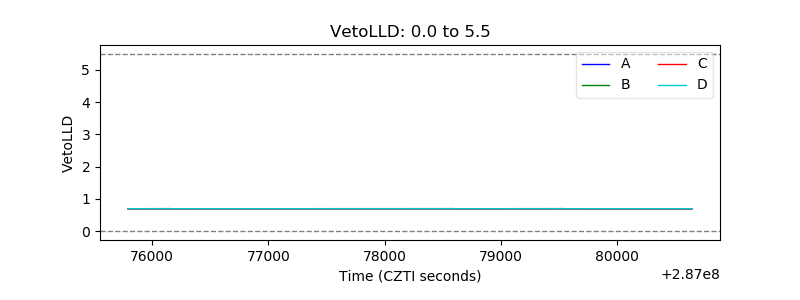

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

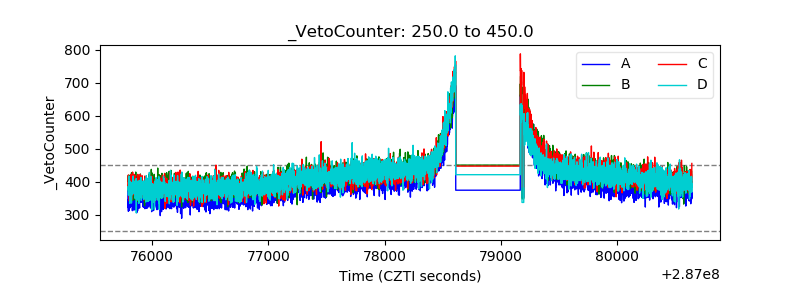

| Veto Counter |  |
