| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_014T01_9000002704_18165cztM0_level2.evt | modeM0/AS1T03_014T01_9000002704_18165cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,499,840 | 88,272,000 |
| Size | 483.0 MB | 84.2 MB |
| Events in quadrant A | 3,564,653 | 569,256 |
| Events in quadrant B | 3,384,593 | 580,955 |
| Events in quadrant C | 3,738,996 | 559,079 |
| Events in quadrant D | 4,249,671 | 550,188 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13955 | 1 |
| B | 0 | 13418 | 1 |
| C | 0 | 14693 | 1 |
| D | 0 | 16678 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5915 | 188 | 3.178360% |
| B | 5916 | 136 | 2.298851% |
| C | 5916 | 204 | 3.448276% |
| D | 5915 | 152 | 2.569738% |

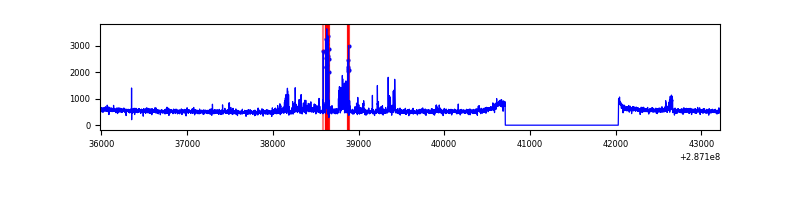

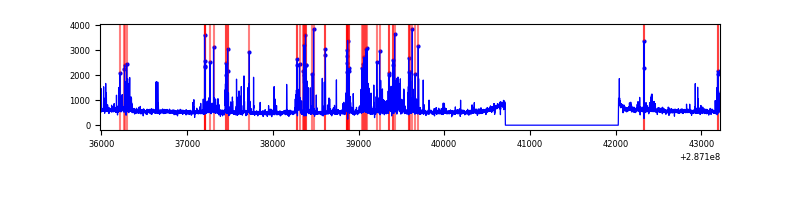

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

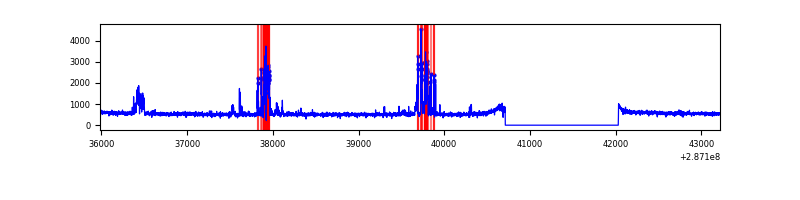

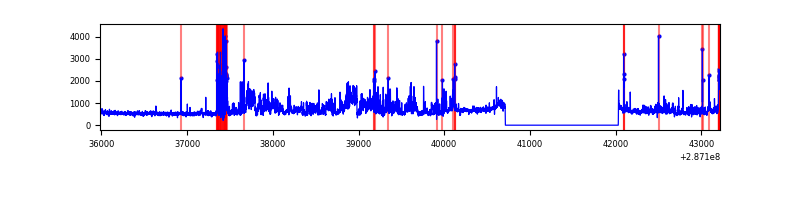

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7235 | 5916 | 73 | 73 | 1.01% | 1.23% |  |
| B | 7236 | 5917 | 24 | 24 | 0.33% | 0.41% |  |
| C | 7236 | 5917 | 58 | 58 | 0.80% | 0.98% |  |
| D | 7235 | 5916 | 62 | 62 | 0.86% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 426641 | 2599.64 | 816 | 802 | 163.8 |
| A | 0 | 226 | 7334 | 39.88 | 816 | 802 | 163.8 |
| A | 12 | 194 | 6040 | 31.98 | 816 | 802 | 163.8 |
| B | 7 | 220 | 163437 | 1069.53 | 805 | 786 | 152.1 |
| B | 0 | 189 | 57766 | 374.68 | 805 | 786 | 152.1 |
| B | 12 | 111 | 17132 | 107.49 | 805 | 786 | 152.1 |
| C | 4 | 254 | 583130 | 3244.61 | 776 | 785 | 179.5 |
| C | 14 | 238 | 121639 | 673.35 | 776 | 785 | 179.5 |
| C | 4 | 238 | 7342 | 36.53 | 776 | 785 | 179.5 |
| D | 7 | 238 | 813642 | 4211.88 | 798 | 775 | 193.0 |
| D | 10 | 70 | 189820 | 979.54 | 798 | 775 | 193.0 |
| D | 13 | 168 | 127215 | 655.15 | 798 | 775 | 193.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

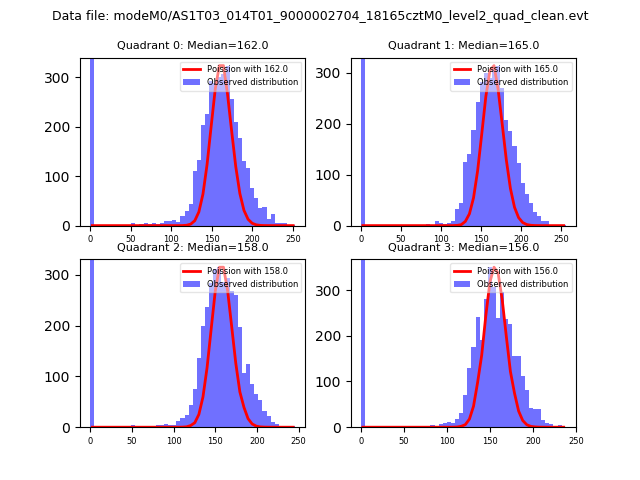

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

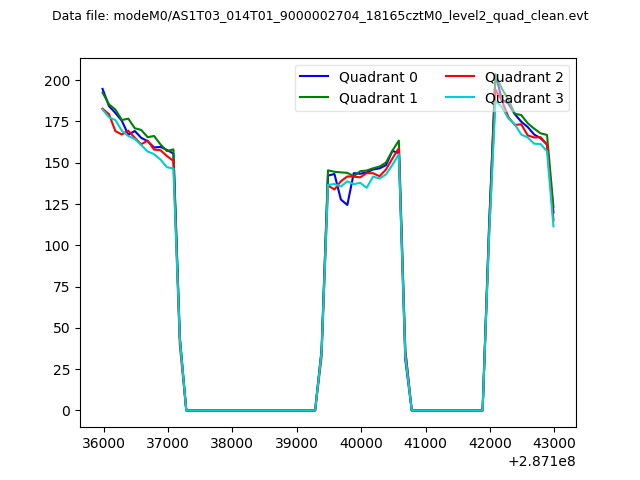

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

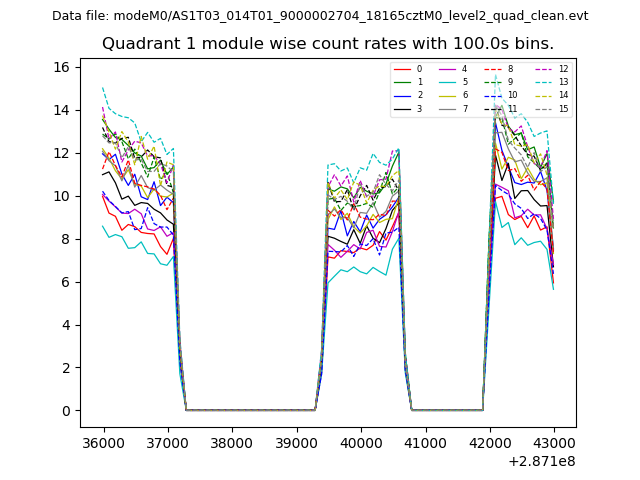

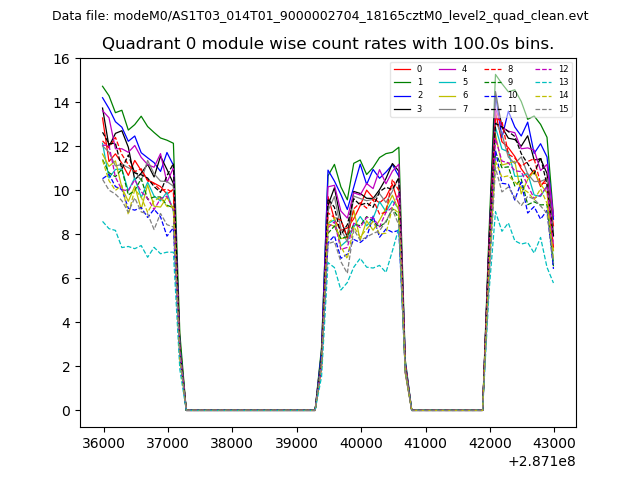

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

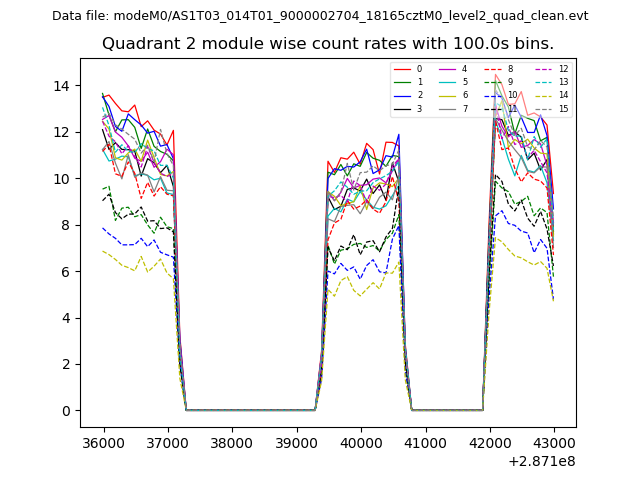

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

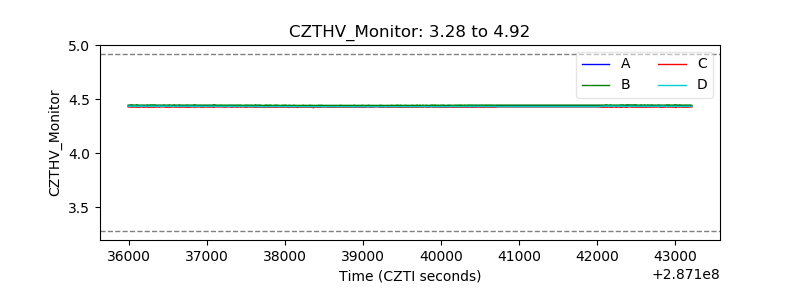

| CZT HV Monitor |  |
| D_VDD |  |

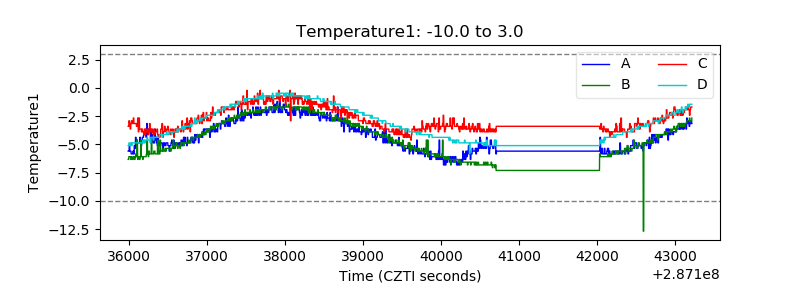

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

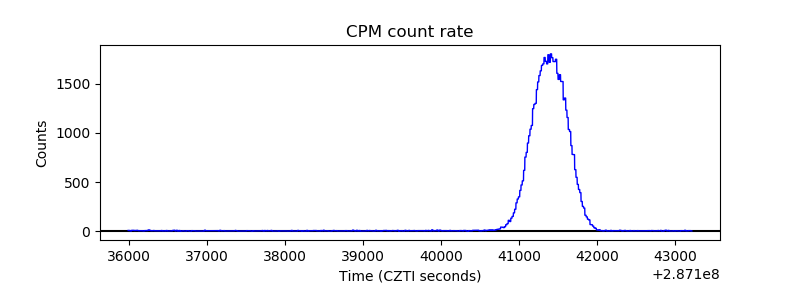

| _CPM_Rate |  |

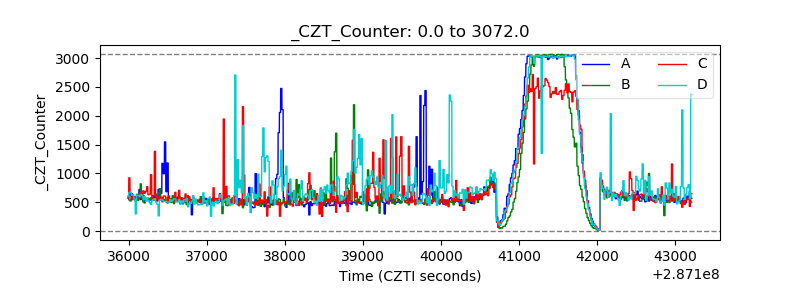

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

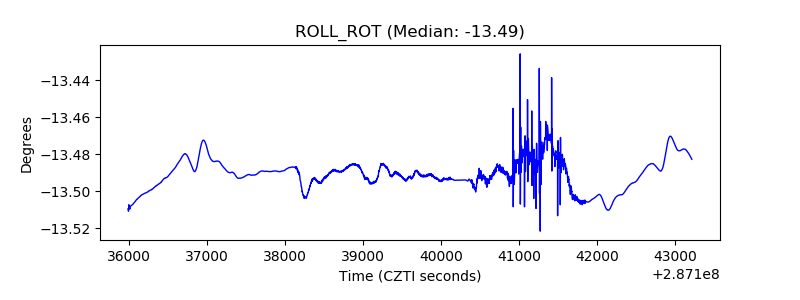

| _ROLL_ROT |  |

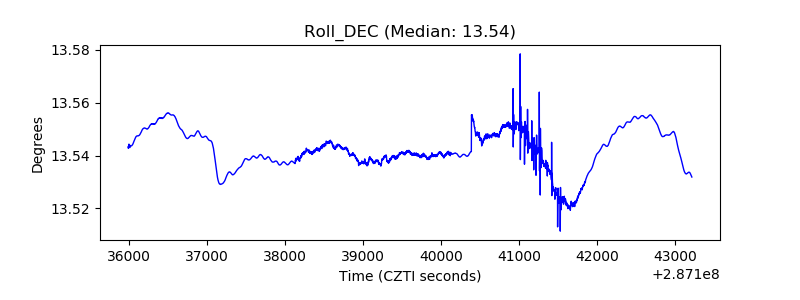

| _Roll_DEC |  |

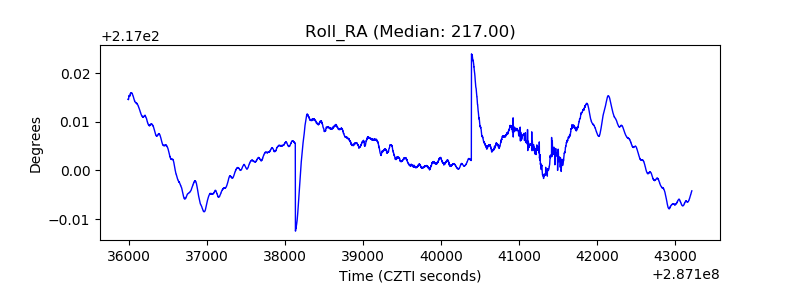

| _Roll_RA |  |

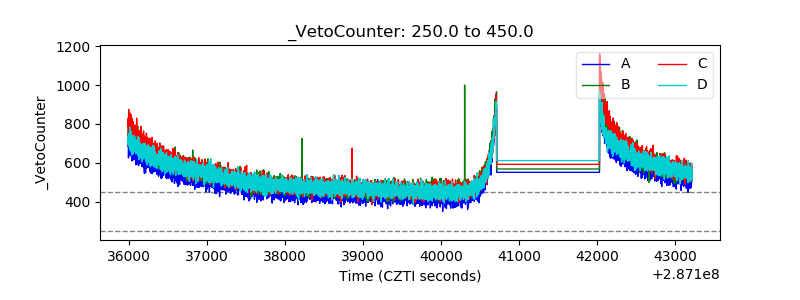

| Veto Counter |  |
