| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_063T02_9000002708_18179cztM0_level2.evt | modeM0/AS1A05_063T02_9000002708_18179cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,408,960 | 76,008,960 |
| Size | 438.1 MB | 72.5 MB |
| Events in quadrant A | 3,172,362 | 484,332 |
| Events in quadrant B | 3,185,115 | 488,488 |
| Events in quadrant C | 3,383,471 | 464,010 |
| Events in quadrant D | 3,784,207 | 465,001 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12791 | 1 |
| B | 0 | 12756 | 1 |
| C | 0 | 13421 | 1 |
| D | 0 | 14924 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5711 | 111 | 1.943618% |
| B | 5712 | 103 | 1.803221% |
| C | 5712 | 183 | 3.203782% |
| D | 5712 | 136 | 2.380952% |

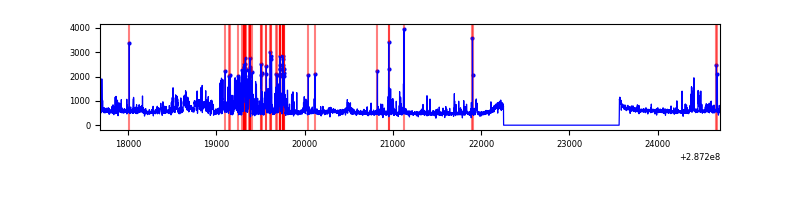

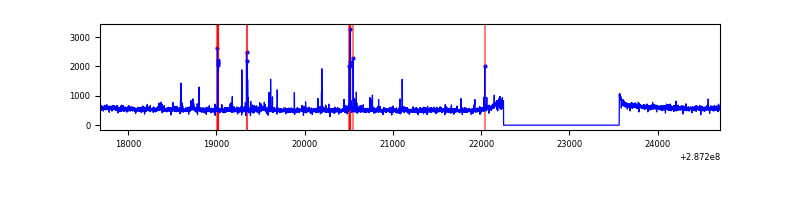

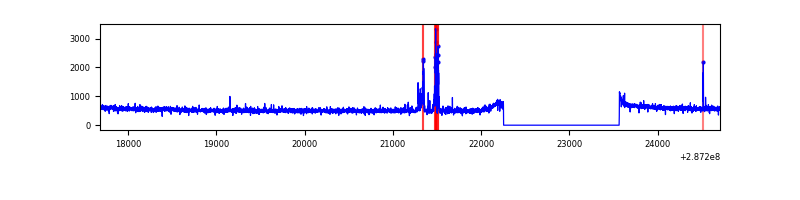

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7021 | 5712 | 16 | 16 | 0.23% | 0.28% |  |
| B | 7022 | 5713 | 14 | 14 | 0.20% | 0.25% |  |
| C | 7022 | 5713 | 42 | 42 | 0.60% | 0.74% |  |
| D | 7022 | 5712 | 60 | 60 | 0.85% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 103993 | 651.56 | 794 | 781 | 158.4 |
| A | 4 | 2 | 15275 | 91.5 | 794 | 781 | 158.4 |
| A | 0 | 226 | 7147 | 40.19 | 794 | 781 | 158.4 |
| B | 7 | 220 | 48706 | 327.12 | 776 | 759 | 146.6 |
| B | 4 | 171 | 27331 | 181.29 | 776 | 759 | 146.6 |
| B | 0 | 229 | 21114 | 138.87 | 776 | 759 | 146.6 |
| C | 4 | 254 | 346444 | 2007.07 | 745 | 752 | 172.2 |
| C | 14 | 238 | 119552 | 689.75 | 745 | 752 | 172.2 |
| C | 13 | 61 | 5280 | 26.29 | 745 | 752 | 172.2 |
| D | 7 | 238 | 685138 | 3689.32 | 770 | 751 | 185.5 |
| D | 13 | 104 | 52143 | 277.04 | 770 | 751 | 185.5 |
| D | 13 | 168 | 49801 | 264.41 | 770 | 751 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

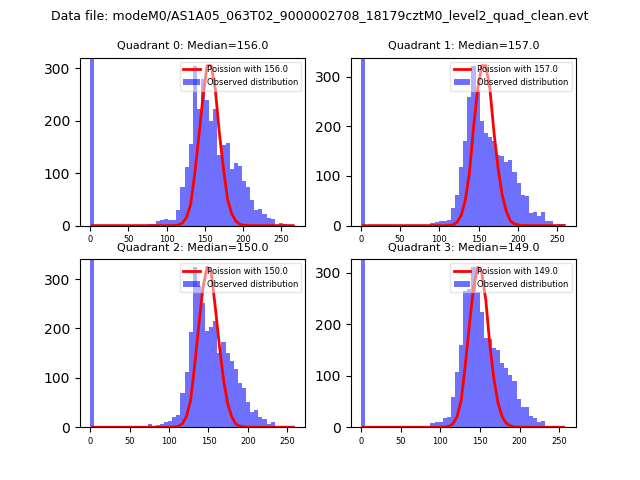

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

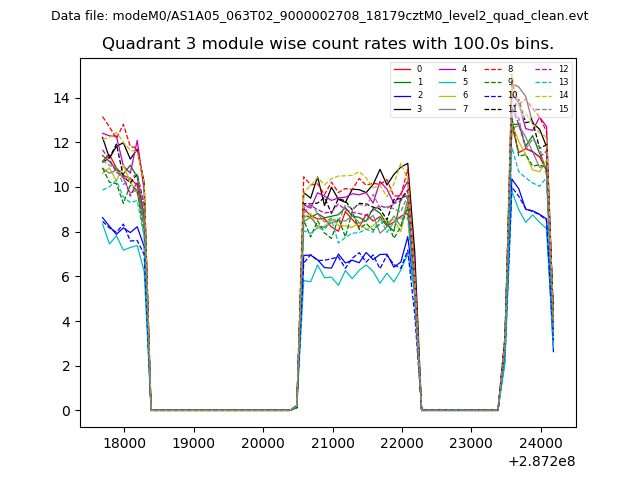

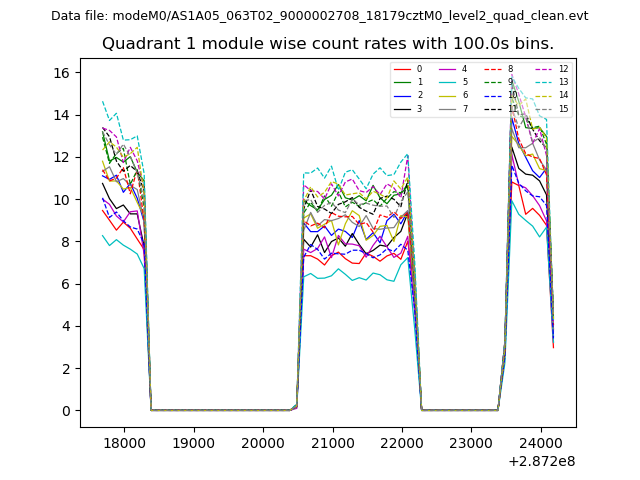

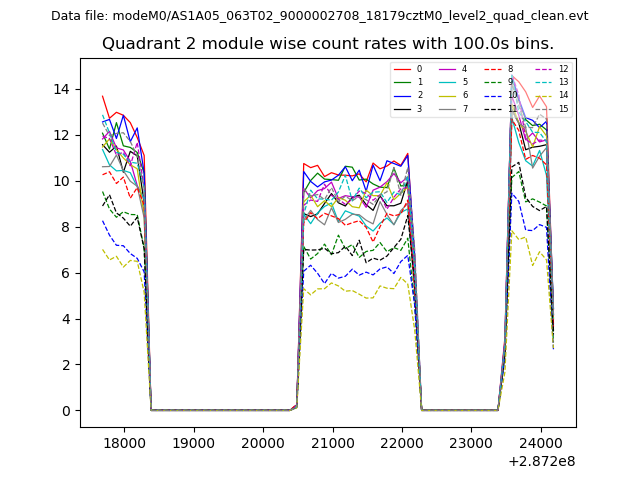

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

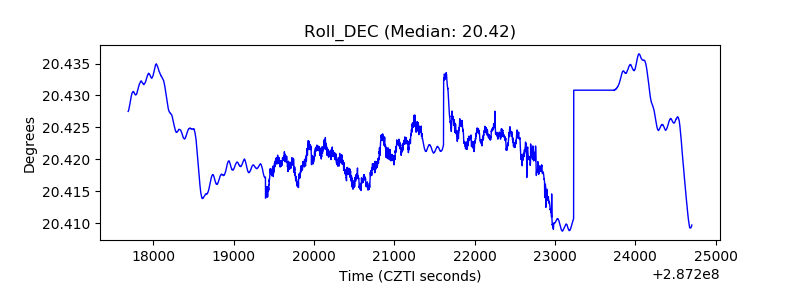

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
