| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_176T05_9000002706_18169cztM0_level2.evt | modeM0/AS1A05_176T05_9000002706_18169cztM0_level2_quad_clean.evt |
| Size (bytes) | 166,965,120 | 22,374,720 |
| Size | 159.2 MB | 21.3 MB |
| Events in quadrant A | 972,966 | 133,869 |
| Events in quadrant B | 1,084,642 | 134,047 |
| Events in quadrant C | 1,226,881 | 130,189 |
| Events in quadrant D | 1,624,996 | 124,675 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49 | 7 |
| B | 0 | 52 | 8 |
| C | 0 | 50 | 10 |
| D | 0 | 50 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140561518374160 | 140561394696238 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5240 | 930 |
| B | 0 | 5587 | 1017 |
| C | 0 | 6112 | 1102 |
| D | 0 | 7790 | 1453 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2139 | 4 | 0.187003% |
| B | 2127 | 12 | 0.564175% |
| C | 2129 | 51 | 2.395491% |
| D | 2120 | 82 | 3.867925% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2713 | 2182 | 1 | 1 | 0.04% | 0.05% |  |
| B | 2711 | 2166 | 5 | 5 | 0.18% | 0.23% |  |
| C | 2709 | 2165 | 21 | 21 | 0.78% | 0.97% |  |
| D | 2705 | 2166 | 68 | 68 | 2.51% | 3.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 6632 | 121.3 | 251 | 246 | 52.6 |
| A | 15 | 174 | 2315 | 39.3 | 251 | 246 | 52.6 |
| A | 0 | 226 | 2263 | 38.31 | 251 | 246 | 52.6 |
| B | 0 | 189 | 41159 | 827.21 | 248 | 243 | 49.5 |
| B | 0 | 197 | 24088 | 482.08 | 248 | 243 | 49.5 |
| B | 7 | 220 | 17880 | 356.57 | 248 | 243 | 49.5 |
| C | 4 | 254 | 261415 | 4551.42 | 237 | 239 | 57.4 |
| C | 14 | 238 | 36247 | 627.5 | 237 | 239 | 57.4 |
| C | 13 | 61 | 1691 | 25.3 | 237 | 239 | 57.4 |
| D | 7 | 238 | 265147 | 4407.1 | 237 | 230 | 60.1 |
| D | 10 | 70 | 221869 | 3687.14 | 237 | 230 | 60.1 |
| D | 13 | 168 | 179830 | 2987.79 | 237 | 230 | 60.1 |

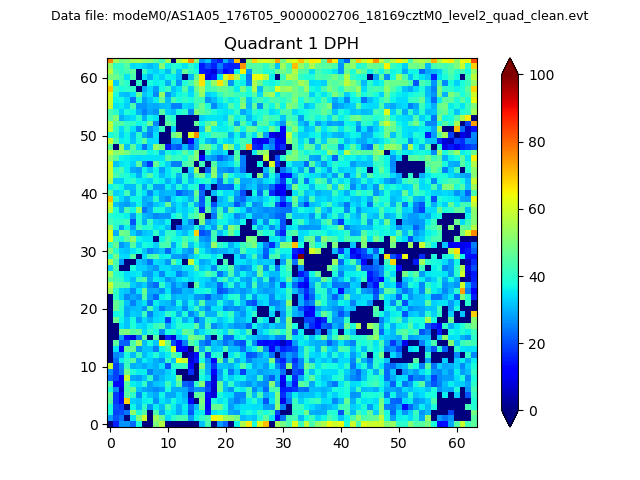

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

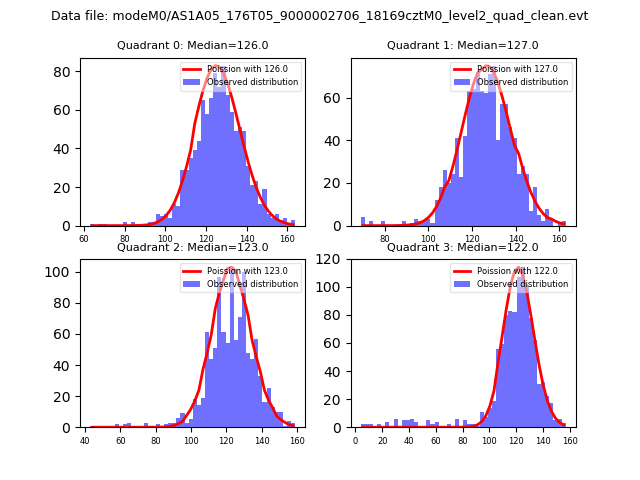

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

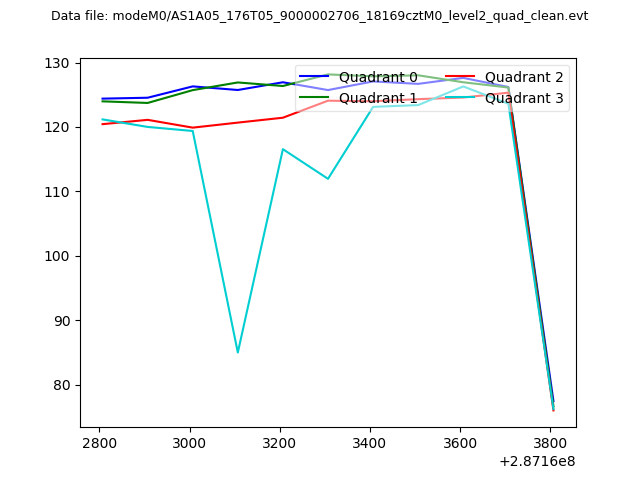

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

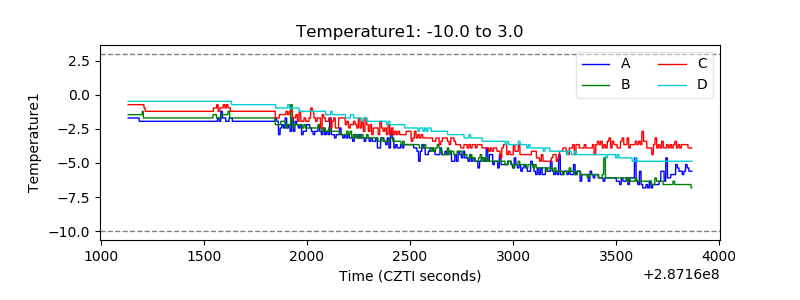

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

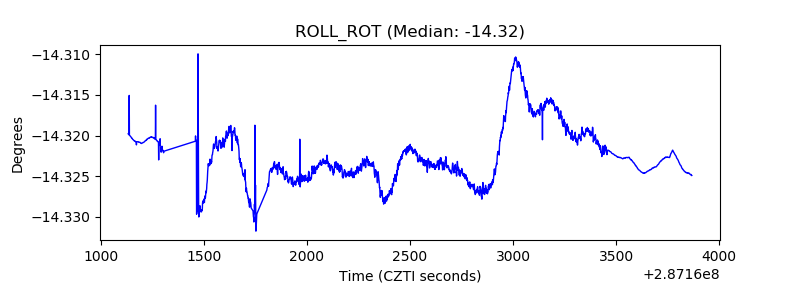

| _ROLL_ROT |  |

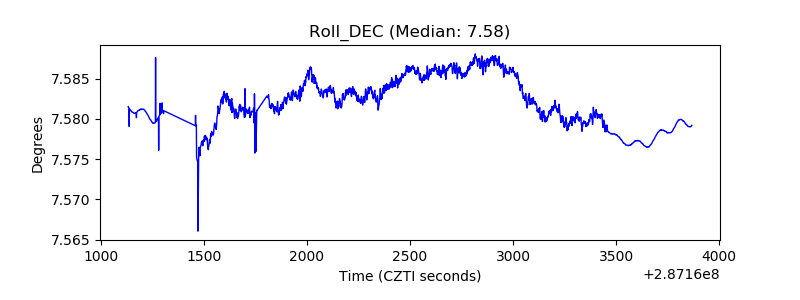

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
