| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_003T01_9000002712_18209cztM0_level2.evt | modeM0/AS1T03_003T01_9000002712_18209cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,019,840 | 74,139,840 |
| Size | 468.3 MB | 70.7 MB |
| Events in quadrant A | 3,065,612 | 476,219 |
| Events in quadrant B | 3,108,872 | 479,671 |
| Events in quadrant C | 3,029,418 | 458,615 |
| Events in quadrant D | 5,278,265 | 429,847 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12294 | 1 |
| B | 0 | 12394 | 1 |
| C | 0 | 12167 | 1 |
| D | 0 | 19568 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5736 | 88 | 1.534170% |
| B | 5737 | 95 | 1.655918% |
| C | 5737 | 94 | 1.638487% |
| D | 5737 | 448 | 7.808959% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

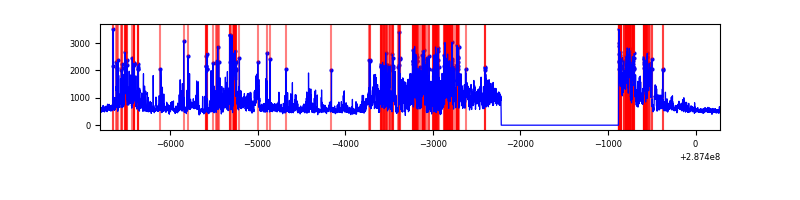

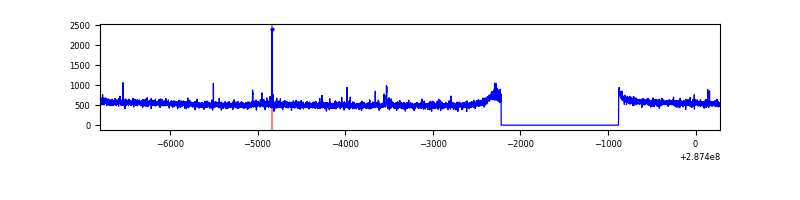

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7076 | 5737 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7077 | 5738 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7077 | 5738 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7077 | 5738 | 303 | 303 | 4.28% | 5.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 20917 | 127.31 | 789 | 776 | 158.2 |
| A | 0 | 226 | 6976 | 39.19 | 789 | 776 | 158.2 |
| A | 14 | 111 | 6839 | 38.32 | 789 | 776 | 158.2 |
| B | 7 | 220 | 35933 | 241.91 | 773 | 756 | 145.4 |
| B | 3 | 64 | 17536 | 115.39 | 773 | 756 | 145.4 |
| B | 12 | 111 | 16588 | 108.87 | 773 | 756 | 145.4 |
| C | 14 | 238 | 117797 | 683.96 | 744 | 752 | 171.1 |
| C | 13 | 61 | 5160 | 25.76 | 744 | 752 | 171.1 |
| C | 3 | 233 | 4113 | 19.64 | 744 | 752 | 171.1 |
| D | 1 | 52 | 1498062 | 8273.96 | 751 | 733 | 181.0 |
| D | 7 | 238 | 640208 | 3533.62 | 751 | 733 | 181.0 |
| D | 5 | 222 | 177240 | 975.34 | 751 | 733 | 181.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

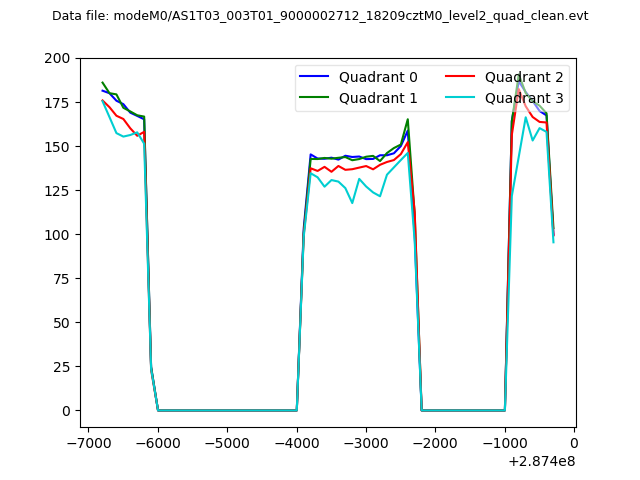

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

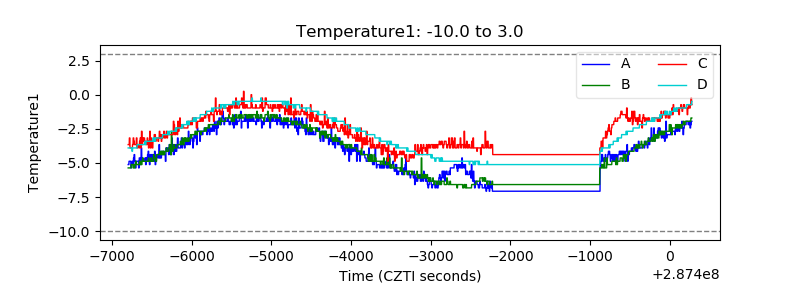

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

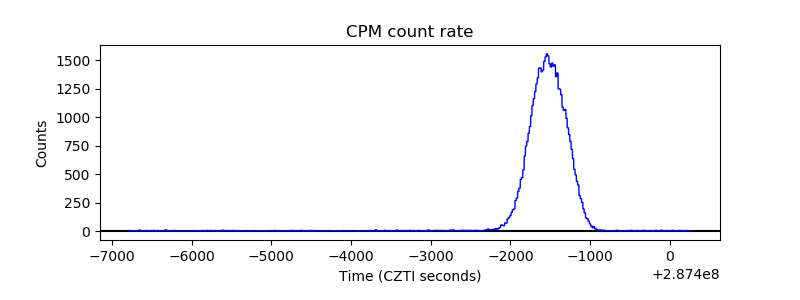

| _CPM_Rate |  |

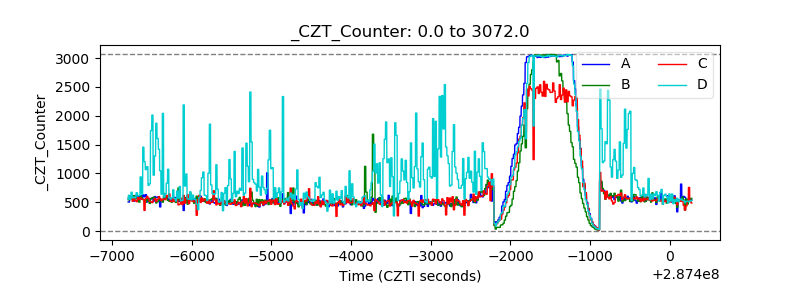

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

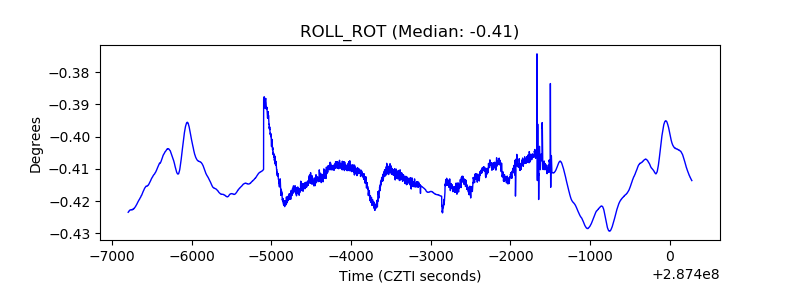

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

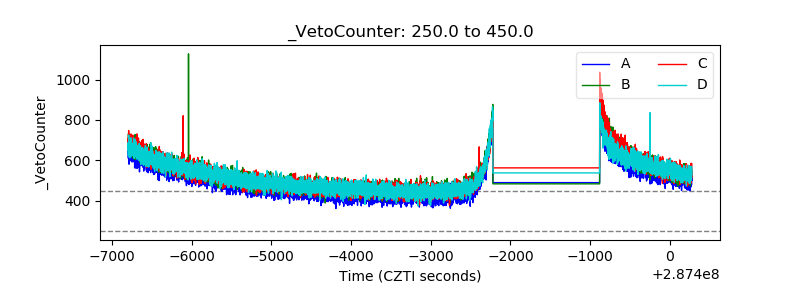

| Veto Counter |  |
