| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_009T03_9000002714_18217cztM0_level2.evt | modeM0/AS1C04_009T03_9000002714_18217cztM0_level2_quad_clean.evt |
| Size (bytes) | 21,499,200 | 5,284,800 |
| Size | 20.5 MB | 5.0 MB |
| Events in quadrant A | 139,765 | 31,047 |
| Events in quadrant B | 143,376 | 31,039 |
| Events in quadrant C | 143,683 | 31,516 |
| Events in quadrant D | 195,133 | 31,556 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 743 | 0 |
| B | 0 | 743 | 0 |
| C | 0 | 744 | 0 |
| D | 0 | 872 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 372 | 0 | 0.000000% |
| B | 372 | 0 | 0.000000% |
| C | 372 | 0 | 0.000000% |
| D | 372 | 0 | 0.000000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 372 | 372 | 0 | 0 | 0.00% | 0.00% |  |
| B | 372 | 372 | 0 | 0 | 0.00% | 0.00% |  |
| C | 372 | 372 | 0 | 0 | 0.00% | 0.00% |  |
| D | 372 | 372 | 3 | 3 | 0.81% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 296 | 27.37 | 36 | 35 | 9.5 |
| A | 3 | 137 | 286 | 26.32 | 36 | 35 | 9.5 |
| A | 12 | 194 | 256 | 23.17 | 36 | 35 | 9.5 |
| B | 12 | 111 | 850 | 88.49 | 36 | 35 | 9.2 |
| B | 11 | 111 | 757 | 78.39 | 36 | 35 | 9.2 |
| B | 14 | 111 | 657 | 67.53 | 36 | 35 | 9.2 |
| C | 14 | 238 | 5398 | 531.29 | 35 | 35 | 10.1 |
| C | 3 | 233 | 260 | 22.29 | 35 | 35 | 10.1 |
| C | 13 | 61 | 255 | 21.79 | 35 | 35 | 10.1 |
| D | 7 | 238 | 51393 | 4859.82 | 35 | 33 | 10.6 |
| D | 2 | 152 | 6356 | 598.3 | 35 | 33 | 10.6 |
| D | 1 | 52 | 3452 | 323.51 | 35 | 33 | 10.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

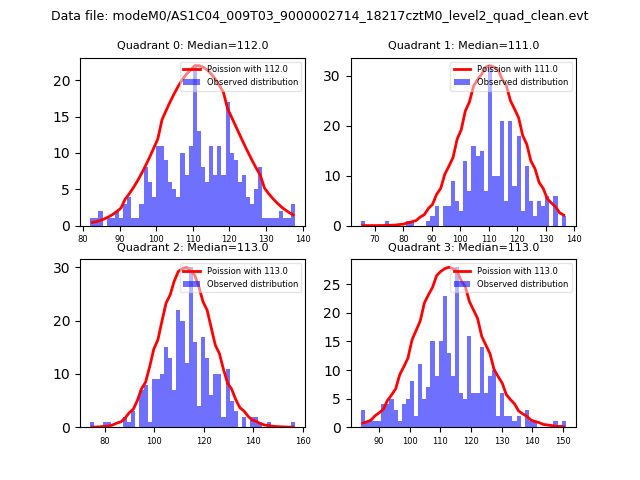

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

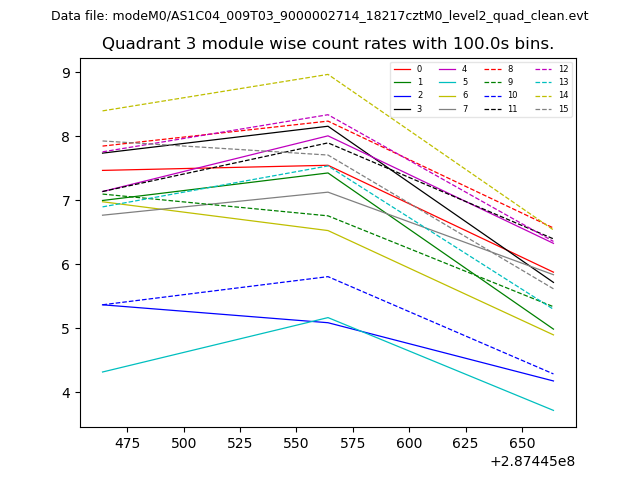

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

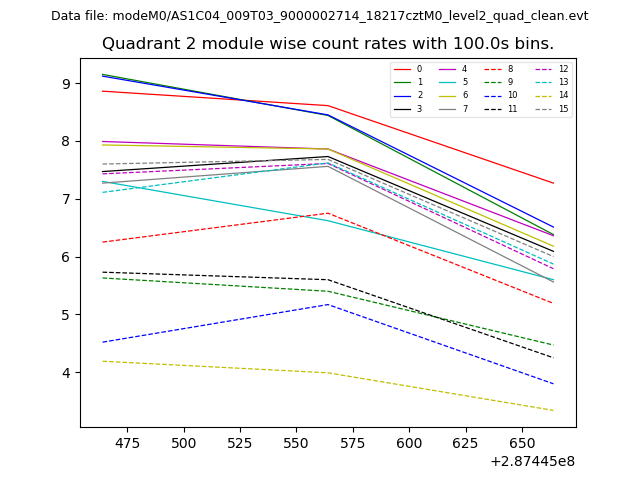

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

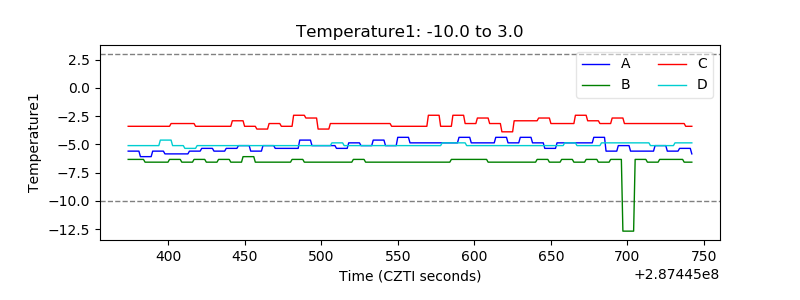

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

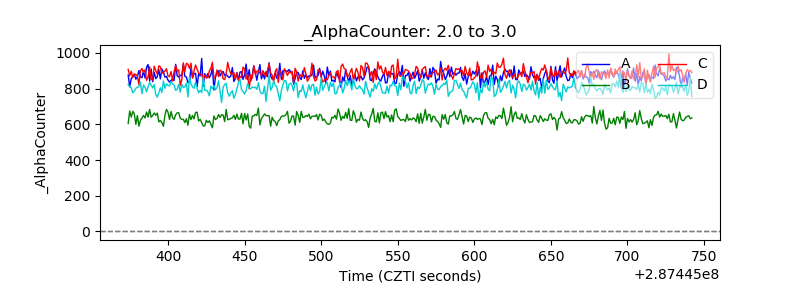

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

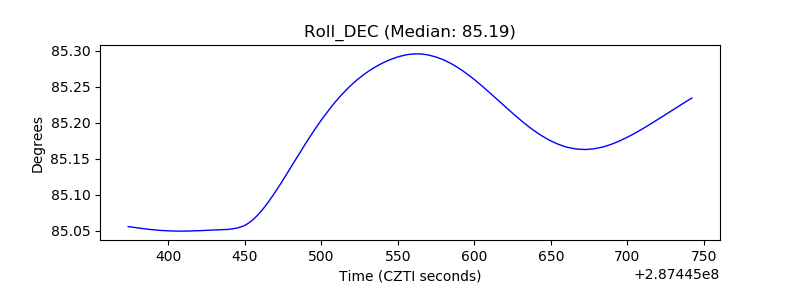

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
