| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002716_18225cztM0_level2.evt | modeM0/AS1C04_001T01_9000002716_18225cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,237,440 | 128,836,800 |
| Size | 461.8 MB | 122.9 MB |
| Events in quadrant A | 3,376,426 | 889,133 |
| Events in quadrant B | 3,179,186 | 892,722 |
| Events in quadrant C | 3,068,102 | 845,400 |
| Events in quadrant D | 4,604,504 | 826,067 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14056 | 2 |
| B | 0 | 13391 | 2 |
| C | 0 | 13197 | 2 |
| D | 0 | 17946 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6430 | 156 | 2.426128% |
| B | 6431 | 109 | 1.694915% |
| C | 6431 | 92 | 1.430571% |
| D | 6431 | 264 | 4.105116% |

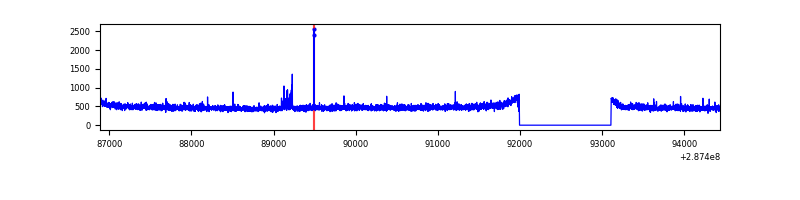

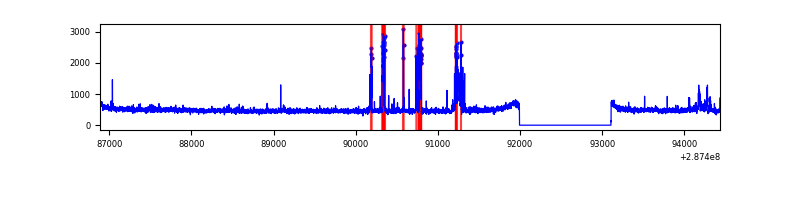

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6430 | 65 | 65 | 0.86% | 1.01% |  |
| B | 7546 | 6431 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7546 | 6431 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7546 | 6431 | 161 | 161 | 2.13% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 310737 | 1969.69 | 793 | 778 | 157.4 |
| A | 11 | 29 | 8024 | 46.05 | 793 | 778 | 157.4 |
| A | 0 | 226 | 7179 | 40.68 | 793 | 778 | 157.4 |
| B | 7 | 220 | 38959 | 263.52 | 782 | 764 | 144.9 |
| B | 3 | 64 | 35260 | 238.0 | 782 | 764 | 144.9 |
| B | 0 | 190 | 17502 | 115.48 | 782 | 764 | 144.9 |
| C | 14 | 238 | 117356 | 676.25 | 747 | 751 | 172.4 |
| C | 3 | 233 | 27621 | 155.83 | 747 | 751 | 172.4 |
| C | 0 | 207 | 8394 | 44.33 | 747 | 751 | 172.4 |
| D | 5 | 222 | 554813 | 3011.84 | 760 | 736 | 184.0 |
| D | 1 | 52 | 477637 | 2592.33 | 760 | 736 | 184.0 |
| D | 7 | 238 | 474008 | 2572.61 | 760 | 736 | 184.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

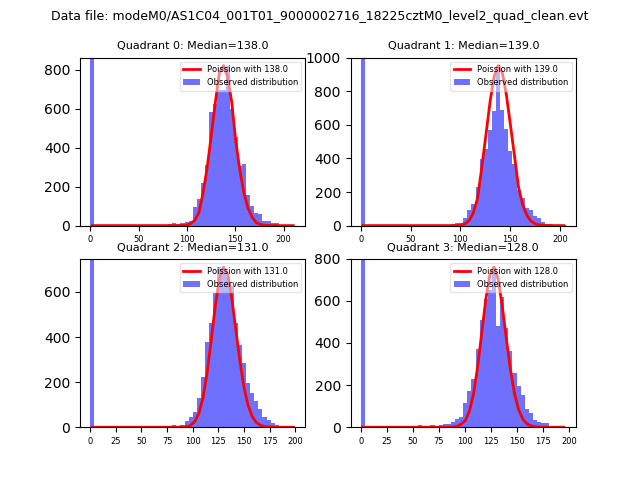

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

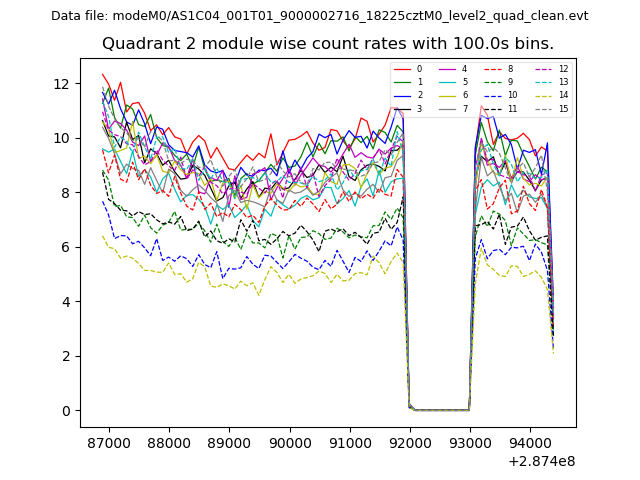

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

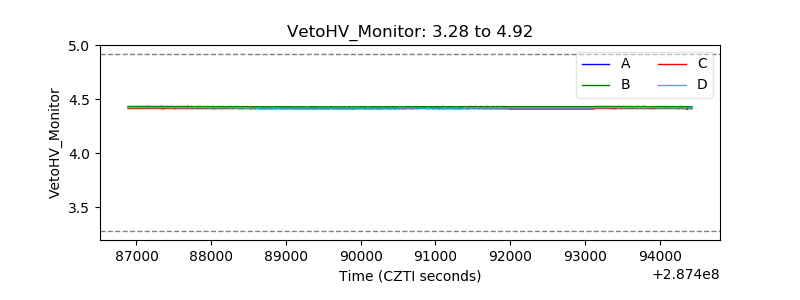

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

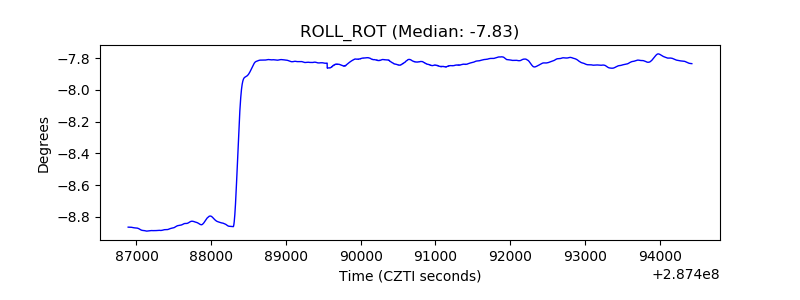

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

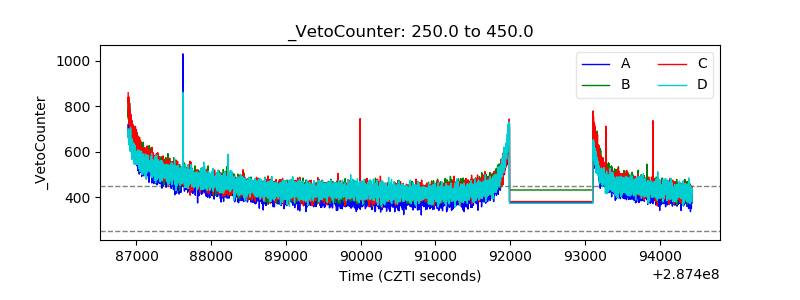

| Veto Counter |  |
