| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002716_18233cztM0_level2.evt | modeM0/AS1C04_001T01_9000002716_18233cztM0_level2_quad_clean.evt |
| Size (bytes) | 663,226,560 | 118,840,320 |
| Size | 632.5 MB | 113.3 MB |
| Events in quadrant A | 3,235,406 | 846,205 |
| Events in quadrant B | 3,150,326 | 867,929 |
| Events in quadrant C | 3,085,741 | 838,182 |
| Events in quadrant D | 10,158,523 | 576,931 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14341 | 2 |
| B | 0 | 13940 | 2 |
| C | 0 | 13766 | 2 |
| D | 0 | 34619 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6727 | 119 | 1.768991% |
| B | 6727 | 44 | 0.654081% |
| C | 6727 | 40 | 0.594619% |
| D | 6726 | 2637 | 39.206066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

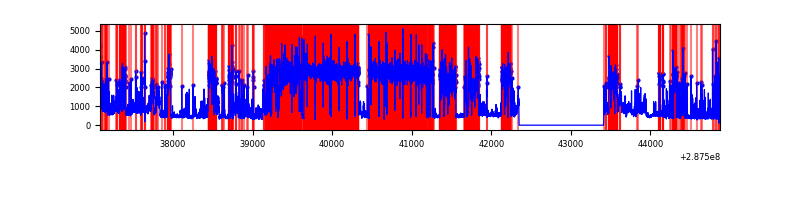

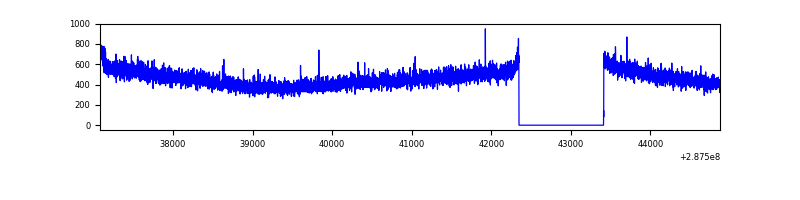

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7792 | 6728 | 58 | 58 | 0.74% | 0.86% |  |
| B | 7792 | 6728 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7792 | 6728 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7791 | 6727 | 2512 | 2512 | 32.24% | 37.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 236397 | 1493.31 | 776 | 758 | 157.8 |
| A | 11 | 29 | 9132 | 53.07 | 776 | 758 | 157.8 |
| A | 0 | 226 | 6754 | 38.0 | 776 | 758 | 157.8 |
| B | 7 | 220 | 40733 | 264.63 | 789 | 767 | 151.0 |
| B | 12 | 111 | 17790 | 112.72 | 789 | 767 | 151.0 |
| B | 11 | 111 | 15324 | 96.39 | 789 | 767 | 151.0 |
| C | 14 | 238 | 117277 | 658.24 | 757 | 761 | 177.0 |
| C | 3 | 233 | 17519 | 94.67 | 757 | 761 | 177.0 |
| C | 13 | 61 | 5362 | 25.99 | 757 | 761 | 177.0 |
| D | 7 | 238 | 6743107 | 48835.78 | 567 | 550 | 138.1 |
| D | 1 | 52 | 737872 | 5340.36 | 567 | 550 | 138.1 |
| D | 5 | 222 | 230717 | 1667.08 | 567 | 550 | 138.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

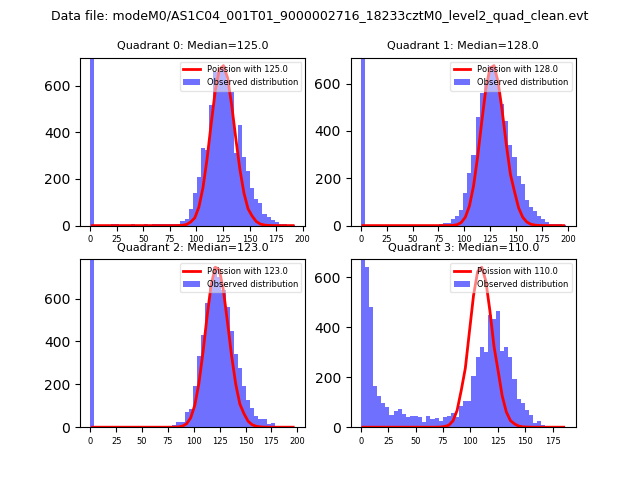

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

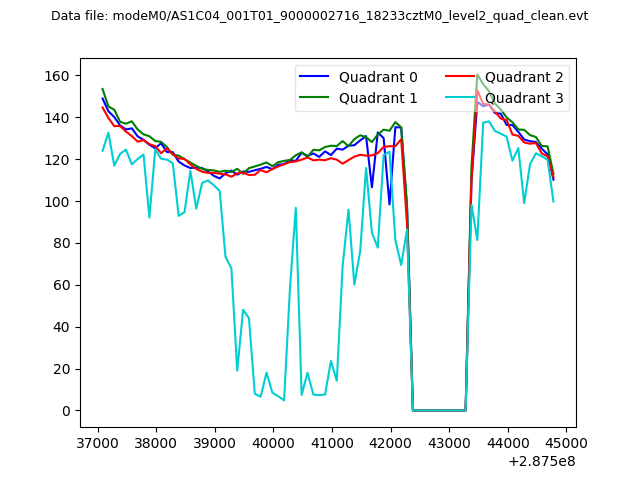

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

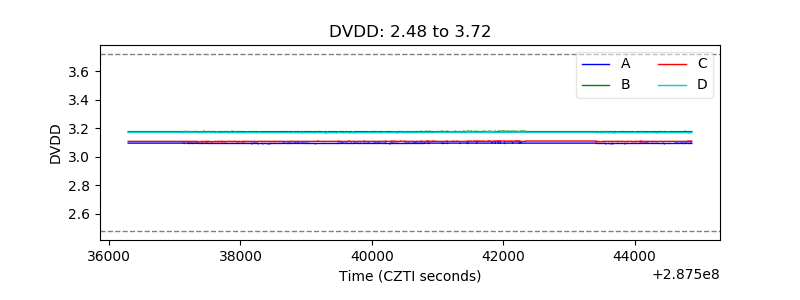

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

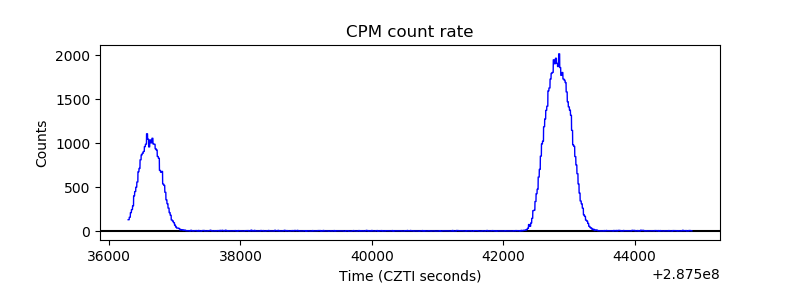

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

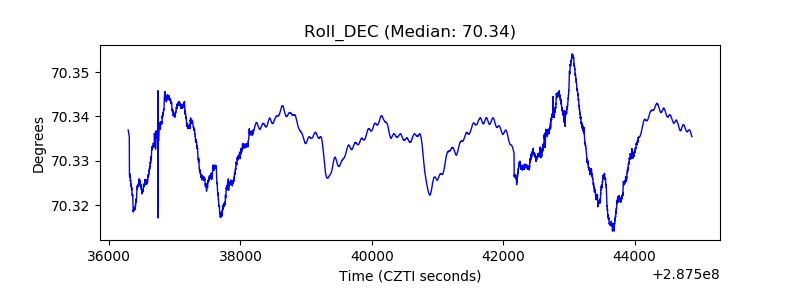

| _Roll_DEC |  |

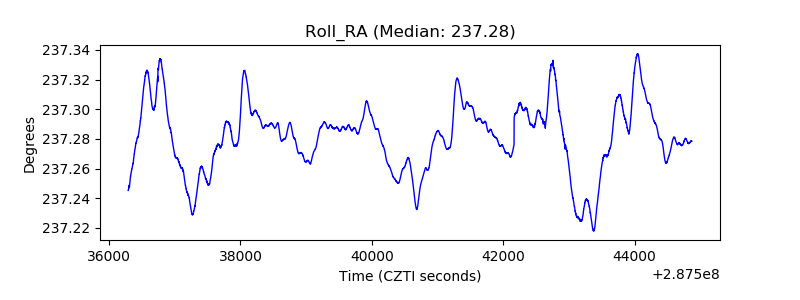

| _Roll_RA |  |
| Veto Counter |  |
