| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002716_18235cztM0_level2.evt | modeM0/AS1C04_001T01_9000002716_18235cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,044,160 | 126,377,280 |
| Size | 432.1 MB | 120.5 MB |
| Events in quadrant A | 3,214,199 | 856,045 |
| Events in quadrant B | 3,102,523 | 876,906 |
| Events in quadrant C | 3,006,345 | 839,351 |
| Events in quadrant D | 3,957,193 | 803,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13922 | 2 |
| B | 0 | 13504 | 2 |
| C | 0 | 13294 | 2 |
| D | 0 | 16345 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 64 | 0.987350% |
| B | 6482 | 34 | 0.524529% |
| C | 6482 | 32 | 0.493675% |
| D | 6482 | 262 | 4.041962% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7657 | 6483 | 44 | 44 | 0.57% | 0.68% |  |
| B | 7657 | 6483 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7657 | 6483 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7657 | 6483 | 230 | 230 | 3.00% | 3.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 244973 | 1581.03 | 769 | 755 | 154.5 |
| A | 0 | 226 | 6720 | 38.62 | 769 | 755 | 154.5 |
| A | 4 | 2 | 5648 | 31.68 | 769 | 755 | 154.5 |
| B | 7 | 220 | 22576 | 149.0 | 775 | 756 | 146.4 |
| B | 6 | 36 | 21139 | 139.18 | 775 | 756 | 146.4 |
| B | 0 | 189 | 20474 | 134.64 | 775 | 756 | 146.4 |
| C | 14 | 238 | 115813 | 674.08 | 738 | 744 | 170.7 |
| C | 3 | 233 | 8025 | 42.65 | 738 | 744 | 170.7 |
| C | 7 | 174 | 7962 | 42.28 | 738 | 744 | 170.7 |
| D | 7 | 238 | 563400 | 3181.45 | 729 | 707 | 176.9 |
| D | 1 | 52 | 304925 | 1720.04 | 729 | 707 | 176.9 |
| D | 5 | 222 | 238093 | 1342.17 | 729 | 707 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

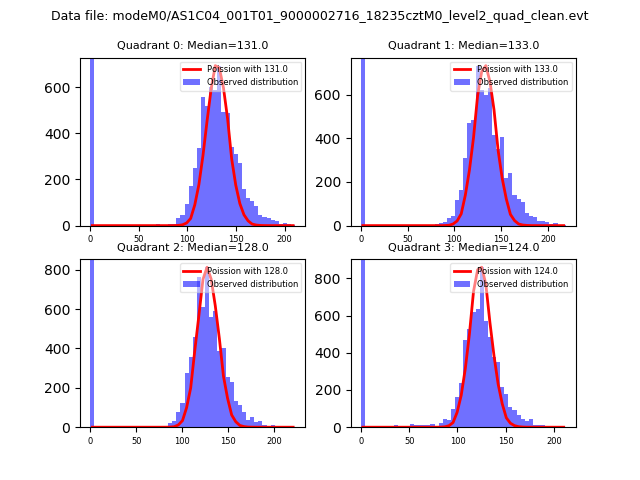

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

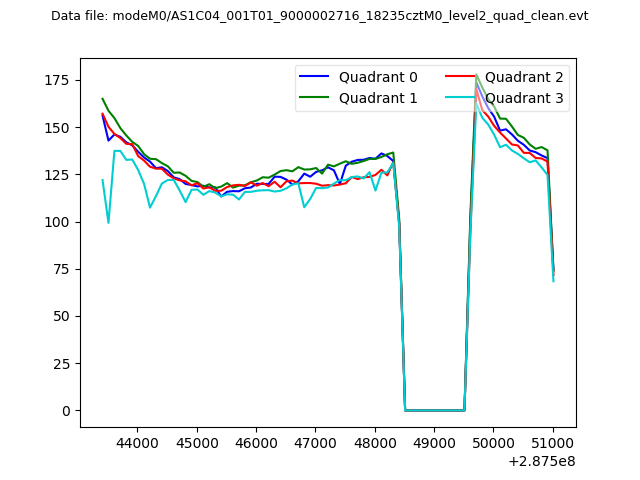

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

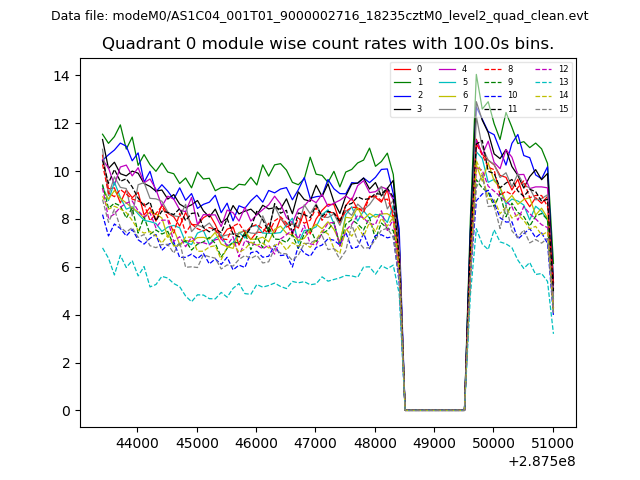

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

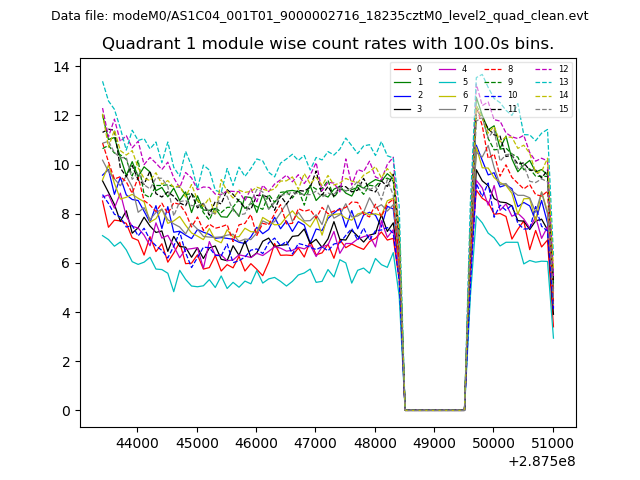

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

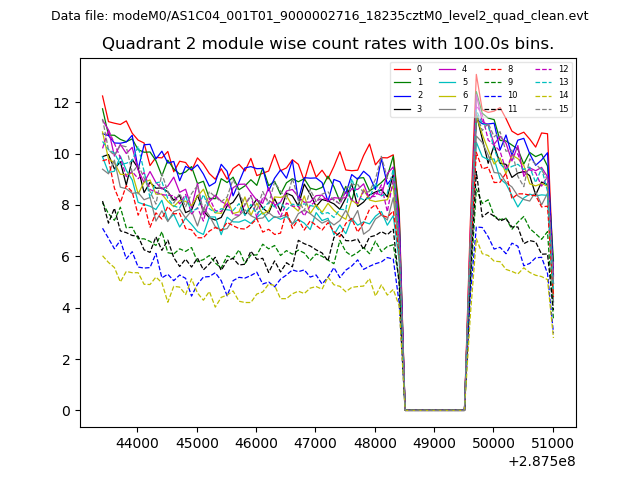

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

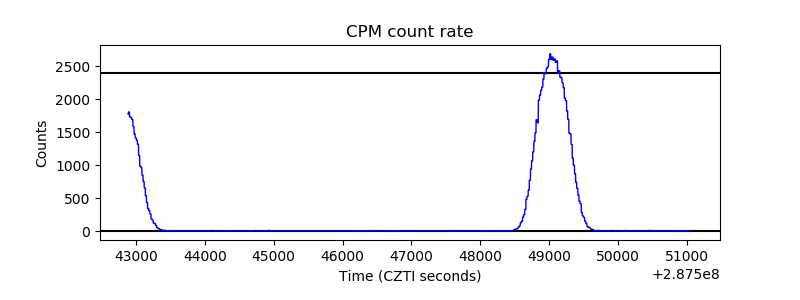

| _CPM_Rate |  |

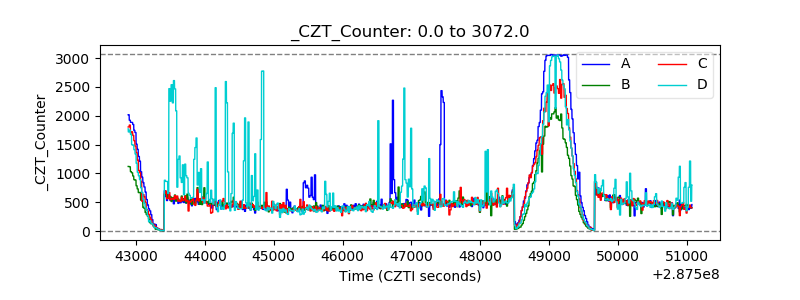

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

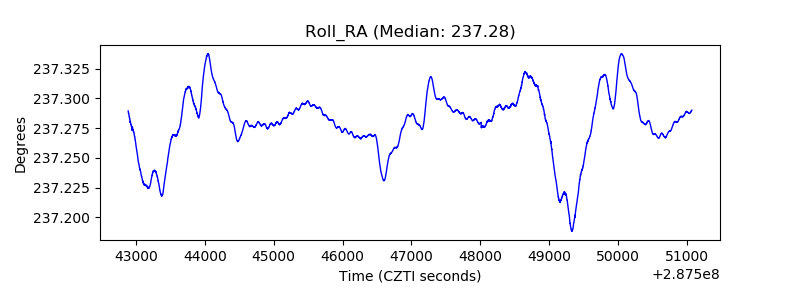

| _Roll_RA |  |
| Veto Counter |  |
