| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002716_18236cztM0_level2.evt | modeM0/AS1C04_001T01_9000002716_18236cztM0_level2_quad_clean.evt |
| Size (bytes) | 387,397,440 | 117,720,000 |
| Size | 369.5 MB | 112.3 MB |
| Events in quadrant A | 2,843,020 | 805,409 |
| Events in quadrant B | 2,813,599 | 822,536 |
| Events in quadrant C | 2,713,651 | 774,264 |
| Events in quadrant D | 2,966,596 | 757,291 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12213 | 1 |
| B | 0 | 12062 | 1 |
| C | 0 | 11869 | 1 |
| D | 0 | 12788 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5811 | 27 | 0.464636% |
| B | 5812 | 18 | 0.309704% |
| C | 5812 | 28 | 0.481762% |
| D | 5811 | 48 | 0.826020% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7091 | 5812 | 15 | 15 | 0.21% | 0.26% |  |
| B | 7092 | 5813 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7092 | 5813 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7091 | 5812 | 33 | 33 | 0.47% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 105743 | 753.18 | 703 | 690 | 139.5 |
| A | 13 | 210 | 28717 | 200.94 | 703 | 690 | 139.5 |
| A | 4 | 2 | 7716 | 50.37 | 703 | 690 | 139.5 |
| B | 0 | 189 | 23476 | 172.76 | 705 | 688 | 131.9 |
| B | 12 | 111 | 14734 | 106.49 | 705 | 688 | 131.9 |
| B | 0 | 198 | 13097 | 94.07 | 705 | 688 | 131.9 |
| C | 14 | 238 | 107075 | 689.77 | 667 | 672 | 154.3 |
| C | 3 | 233 | 5128 | 28.89 | 667 | 672 | 154.3 |
| C | 13 | 61 | 4761 | 26.51 | 667 | 672 | 154.3 |
| D | 7 | 238 | 111395 | 697.96 | 668 | 651 | 158.7 |
| D | 7 | 96 | 103011 | 645.12 | 668 | 651 | 158.7 |
| D | 14 | 34 | 95214 | 595.98 | 668 | 651 | 158.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

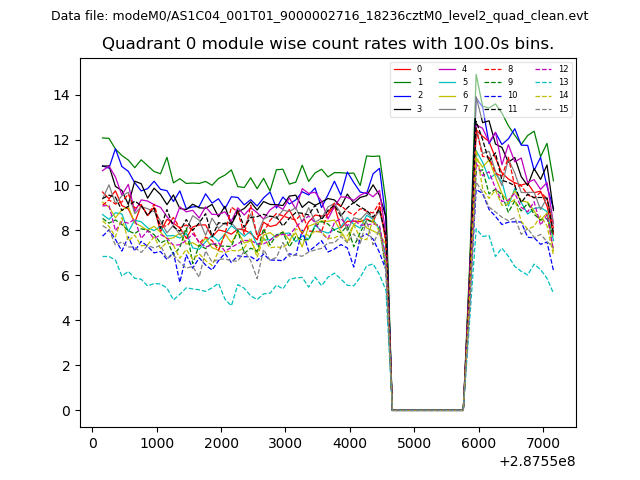

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

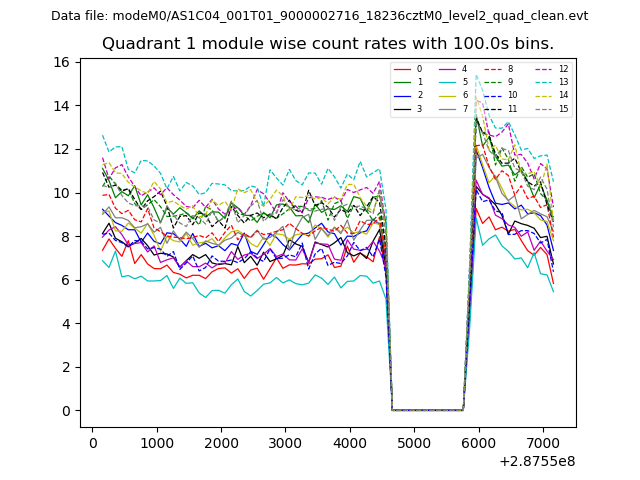

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

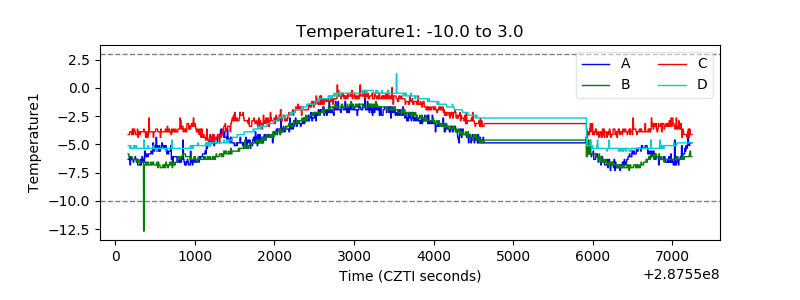

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

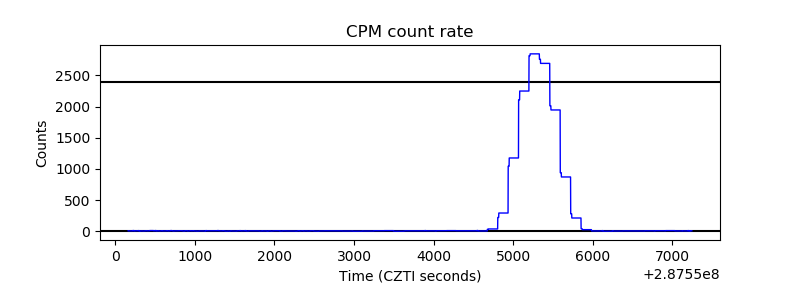

| _CPM_Rate |  |

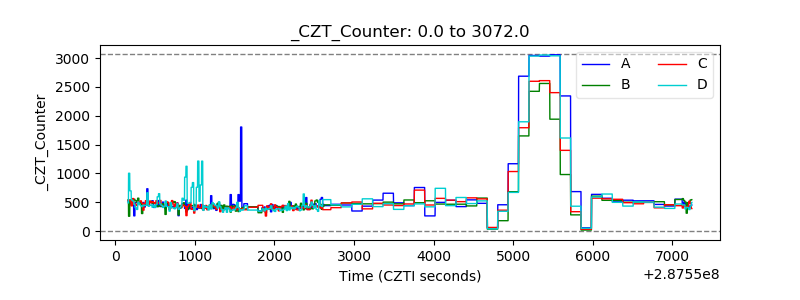

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

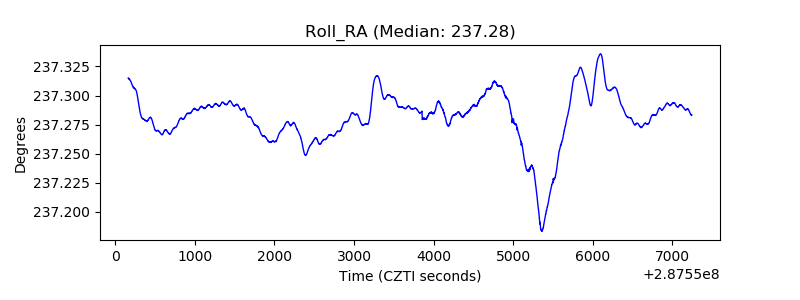

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
