| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18241cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18241cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,321,600 | 93,643,200 |
| Size | 460.9 MB | 89.3 MB |
| Events in quadrant A | 3,330,445 | 608,640 |
| Events in quadrant B | 3,422,377 | 610,970 |
| Events in quadrant C | 3,245,215 | 579,556 |
| Events in quadrant D | 4,179,347 | 564,883 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14309 | 1 |
| B | 0 | 14437 | 2 |
| C | 0 | 14067 | 1 |
| D | 0 | 16927 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6775 | 145 | 2.140221% |
| B | 6774 | 169 | 2.494833% |
| C | 6774 | 149 | 2.199587% |
| D | 6775 | 276 | 4.073801% |

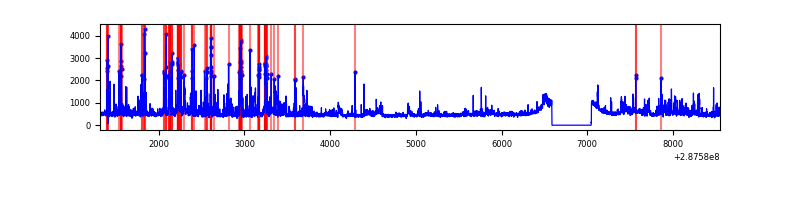

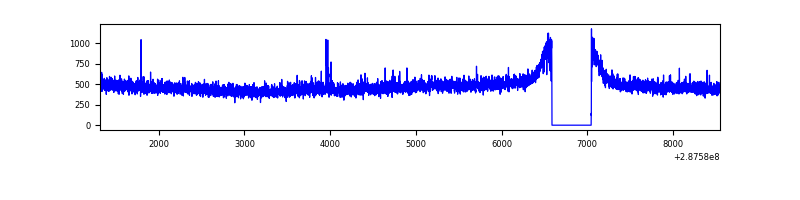

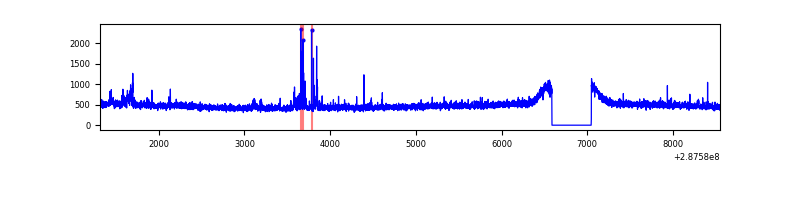

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7235 | 6776 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7234 | 6775 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7234 | 6775 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7235 | 6776 | 121 | 121 | 1.67% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 84623 | 489.94 | 838 | 819 | 171.1 |
| A | 4 | 2 | 10873 | 58.78 | 838 | 819 | 171.1 |
| A | 13 | 170 | 7845 | 41.08 | 838 | 819 | 171.1 |
| B | 7 | 220 | 108379 | 671.8 | 828 | 808 | 160.1 |
| B | 3 | 209 | 27842 | 168.83 | 828 | 808 | 160.1 |
| B | 0 | 189 | 21511 | 129.29 | 828 | 808 | 160.1 |
| C | 14 | 238 | 122370 | 651.09 | 792 | 796 | 186.7 |
| C | 0 | 207 | 23832 | 123.37 | 792 | 796 | 186.7 |
| C | 3 | 233 | 11653 | 58.14 | 792 | 796 | 186.7 |
| D | 1 | 52 | 996056 | 5060.81 | 805 | 782 | 196.7 |
| D | 7 | 238 | 63904 | 320.97 | 805 | 782 | 196.7 |
| D | 2 | 234 | 28065 | 138.73 | 805 | 782 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

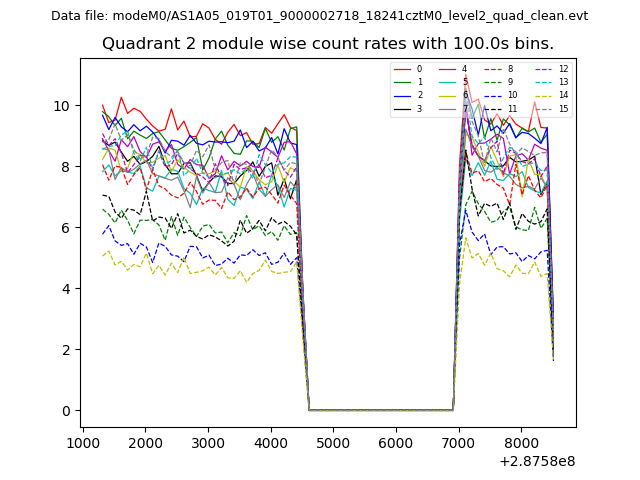

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

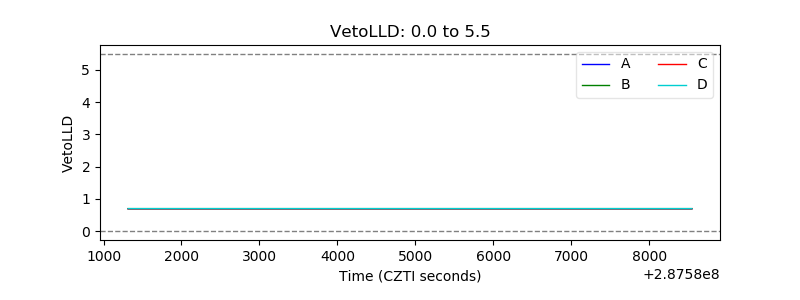

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

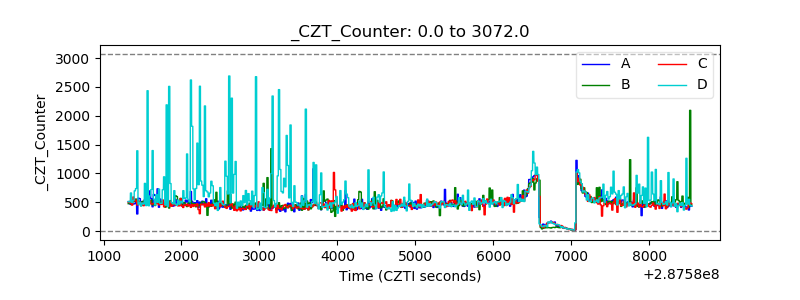

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

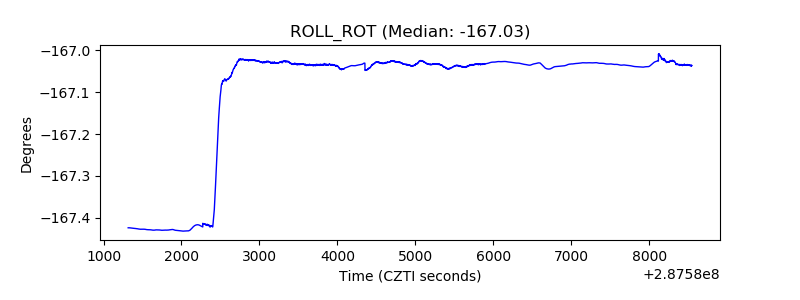

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

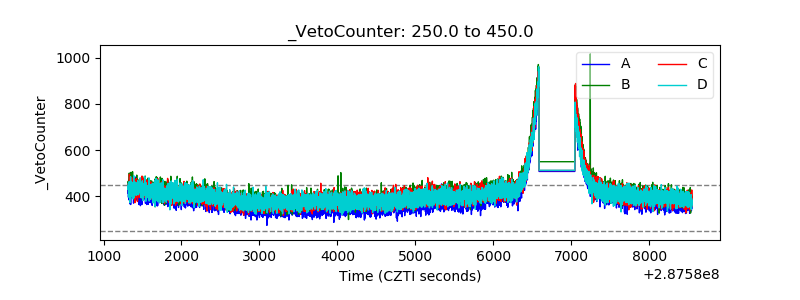

| Veto Counter |  |
