| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18242cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18242cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,614,720 | 105,359,040 |
| Size | 505.1 MB | 100.5 MB |
| Events in quadrant A | 3,896,455 | 681,390 |
| Events in quadrant B | 3,788,121 | 686,944 |
| Events in quadrant C | 3,585,038 | 650,096 |
| Events in quadrant D | 4,257,121 | 646,717 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16535 | 1 |
| B | 0 | 16119 | 1 |
| C | 0 | 15671 | 1 |
| D | 0 | 17795 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7546 | 167 | 2.213093% |
| B | 7547 | 144 | 1.908043% |
| C | 7547 | 153 | 2.027296% |
| D | 7546 | 172 | 2.279353% |

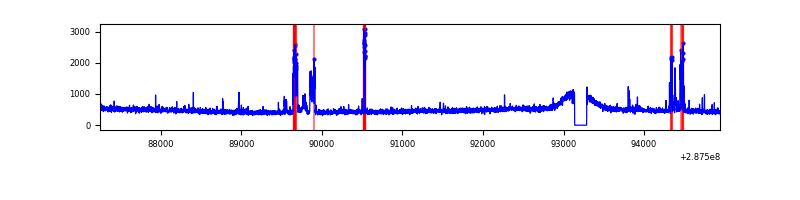

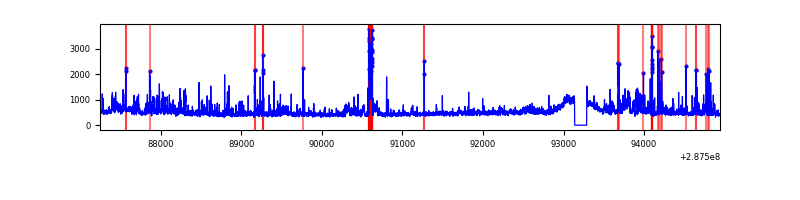

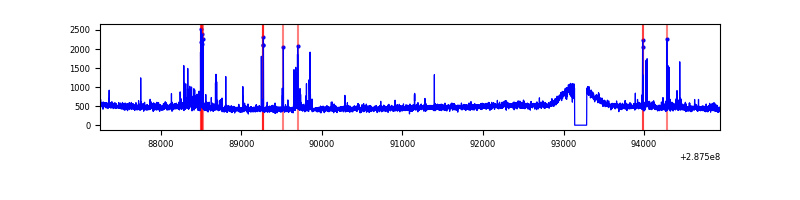

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7696 | 7546 | 37 | 37 | 0.48% | 0.49% |  |
| B | 7697 | 7547 | 13 | 13 | 0.17% | 0.17% |  |
| C | 7697 | 7547 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7696 | 7546 | 67 | 67 | 0.87% | 0.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 263427 | 1393.91 | 926 | 906 | 188.3 |
| A | 4 | 2 | 48875 | 254.7 | 926 | 906 | 188.3 |
| A | 0 | 226 | 8226 | 38.87 | 926 | 906 | 188.3 |
| B | 7 | 220 | 100986 | 560.75 | 919 | 894 | 178.5 |
| B | 0 | 197 | 35134 | 191.83 | 919 | 894 | 178.5 |
| B | 0 | 189 | 28430 | 154.27 | 919 | 894 | 178.5 |
| C | 14 | 238 | 135242 | 645.32 | 878 | 882 | 208.2 |
| C | 0 | 207 | 11201 | 49.56 | 878 | 882 | 208.2 |
| C | 4 | 223 | 10530 | 46.34 | 878 | 882 | 208.2 |
| D | 1 | 52 | 520279 | 2358.63 | 901 | 875 | 220.2 |
| D | 5 | 222 | 105747 | 476.23 | 901 | 875 | 220.2 |
| D | 7 | 238 | 102930 | 463.43 | 901 | 875 | 220.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

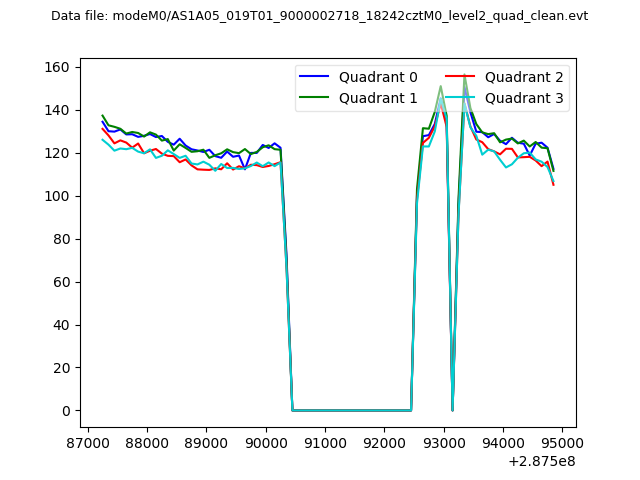

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

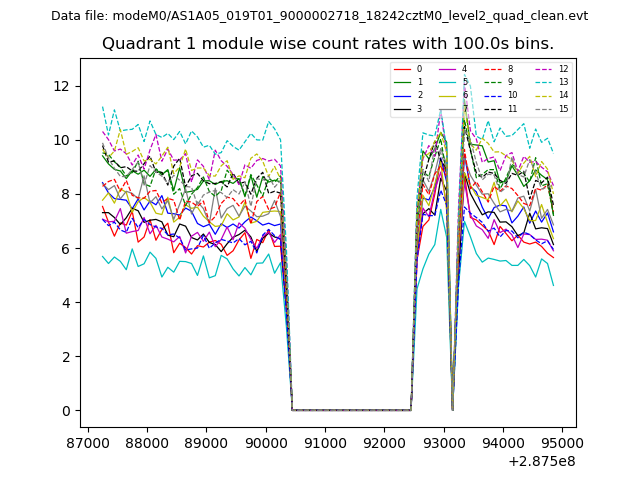

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

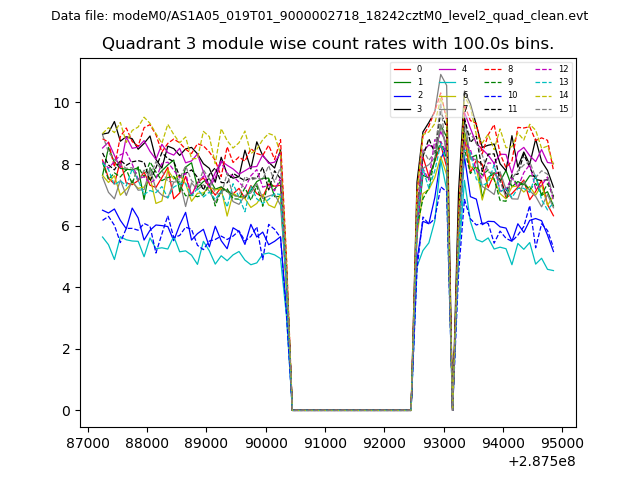

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

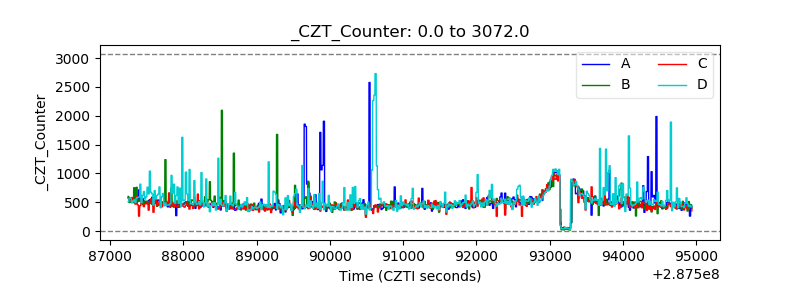

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
