| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18247cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18247cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,176,640 | 86,892,480 |
| Size | 457.9 MB | 82.9 MB |
| Events in quadrant A | 3,400,158 | 543,659 |
| Events in quadrant B | 3,561,497 | 550,929 |
| Events in quadrant C | 3,431,477 | 518,625 |
| Events in quadrant D | 3,656,715 | 513,658 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14826 | 2 |
| B | 0 | 15231 | 2 |
| C | 0 | 14775 | 2 |
| D | 0 | 15767 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7248 | 14 | 0.193157% |
| B | 7249 | 35 | 0.482825% |
| C | 7249 | 42 | 0.579390% |
| D | 7249 | 61 | 0.841495% |

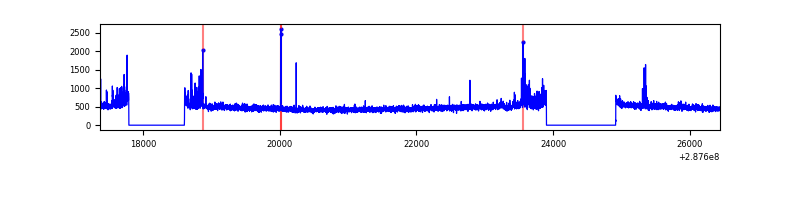

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9078 | 7250 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9079 | 7251 | 4 | 4 | 0.04% | 0.06% |  |
| C | 9079 | 7251 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9079 | 7251 | 41 | 41 | 0.45% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 33156 | 180.38 | 873 | 854 | 179.1 |
| A | 0 | 226 | 7524 | 37.25 | 873 | 854 | 179.1 |
| A | 4 | 2 | 7135 | 35.07 | 873 | 854 | 179.1 |
| B | 7 | 220 | 80586 | 474.03 | 873 | 851 | 168.2 |
| B | 0 | 197 | 23604 | 135.27 | 873 | 851 | 168.2 |
| B | 12 | 111 | 20364 | 116.01 | 873 | 851 | 168.2 |
| C | 14 | 238 | 130249 | 657.24 | 838 | 843 | 196.9 |
| C | 0 | 207 | 23749 | 116.34 | 838 | 843 | 196.9 |
| C | 3 | 233 | 9096 | 41.92 | 838 | 843 | 196.9 |
| D | 7 | 238 | 158874 | 763.16 | 847 | 822 | 207.1 |
| D | 1 | 52 | 130155 | 624.49 | 847 | 822 | 207.1 |
| D | 13 | 168 | 75000 | 358.17 | 847 | 822 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

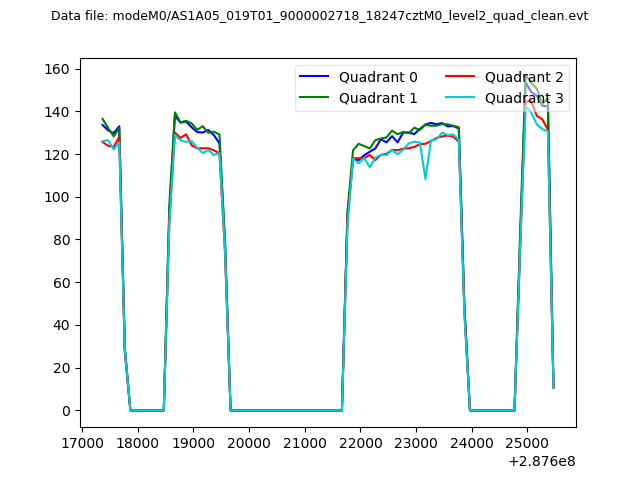

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

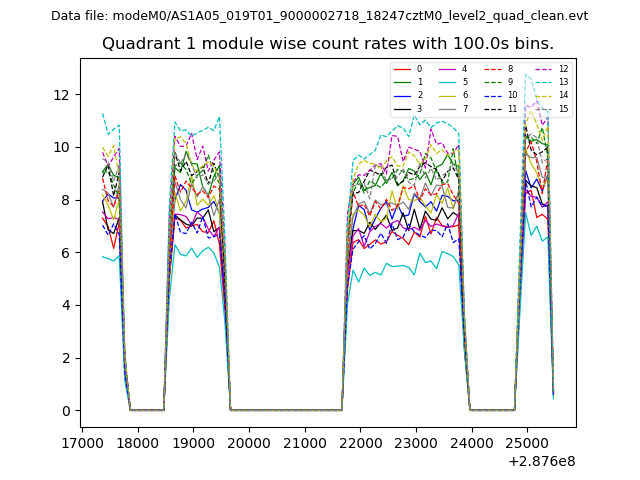

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

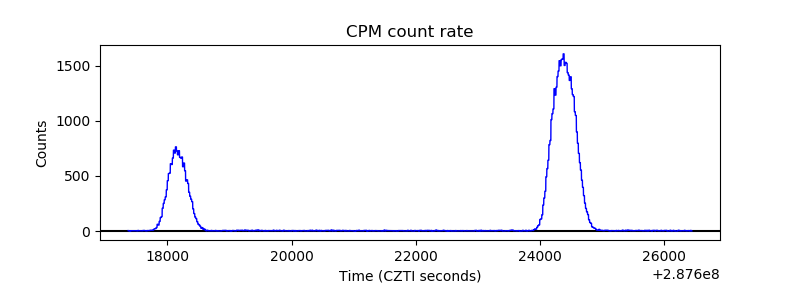

| _CPM_Rate |  |

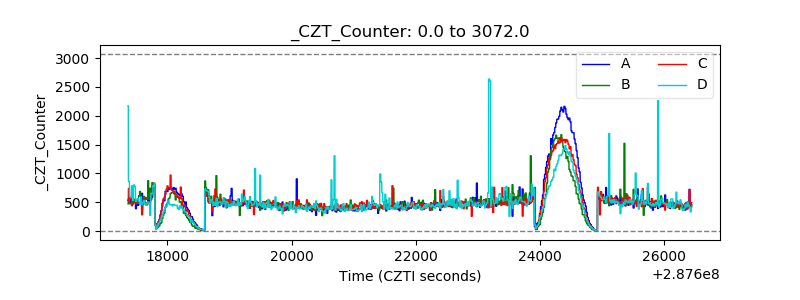

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

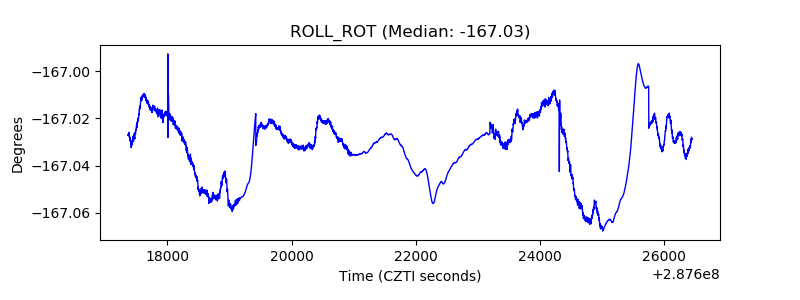

| _ROLL_ROT |  |

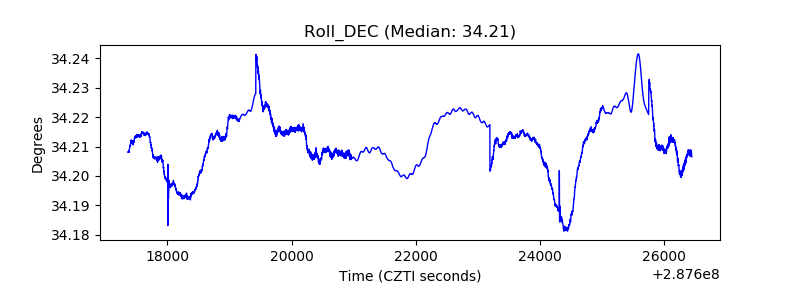

| _Roll_DEC |  |
| _Roll_RA |  |

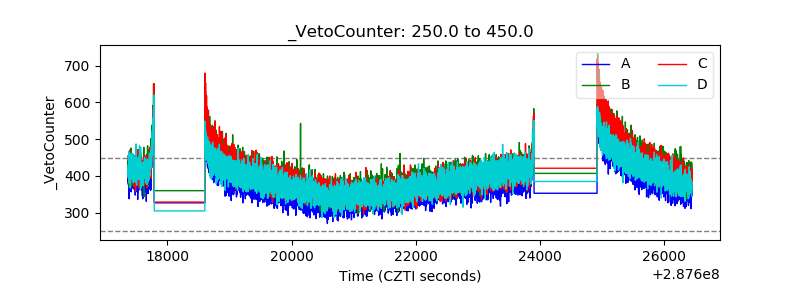

| Veto Counter |  |
