| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18253cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18253cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,594,240 | 94,907,520 |
| Size | 441.2 MB | 90.5 MB |
| Events in quadrant A | 3,583,451 | 628,303 |
| Events in quadrant B | 3,389,848 | 637,308 |
| Events in quadrant C | 3,234,012 | 590,110 |
| Events in quadrant D | 3,380,447 | 585,069 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14579 | 2 |
| B | 0 | 13740 | 2 |
| C | 0 | 13330 | 2 |
| D | 0 | 13867 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6211 | 137 | 2.205764% |
| B | 6211 | 149 | 2.398970% |
| C | 6211 | 149 | 2.398970% |
| D | 6211 | 98 | 1.577846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6212 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7511 | 6212 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7511 | 6212 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7511 | 6212 | 23 | 23 | 0.31% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 271560 | 1576.62 | 858 | 841 | 171.7 |
| A | 4 | 2 | 8967 | 47.32 | 858 | 841 | 171.7 |
| A | 0 | 226 | 7669 | 39.77 | 858 | 841 | 171.7 |
| B | 7 | 220 | 49207 | 303.38 | 849 | 831 | 159.5 |
| B | 4 | 216 | 20395 | 122.69 | 849 | 831 | 159.5 |
| B | 12 | 111 | 18256 | 109.28 | 849 | 831 | 159.5 |
| C | 14 | 238 | 126936 | 686.38 | 796 | 802 | 183.8 |
| C | 13 | 61 | 5529 | 25.72 | 796 | 802 | 183.8 |
| C | 0 | 207 | 2302 | 8.16 | 796 | 802 | 183.8 |
| D | 1 | 52 | 102388 | 515.03 | 819 | 798 | 197.3 |
| D | 7 | 238 | 95675 | 481.0 | 819 | 798 | 197.3 |
| D | 13 | 168 | 30011 | 148.1 | 819 | 798 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

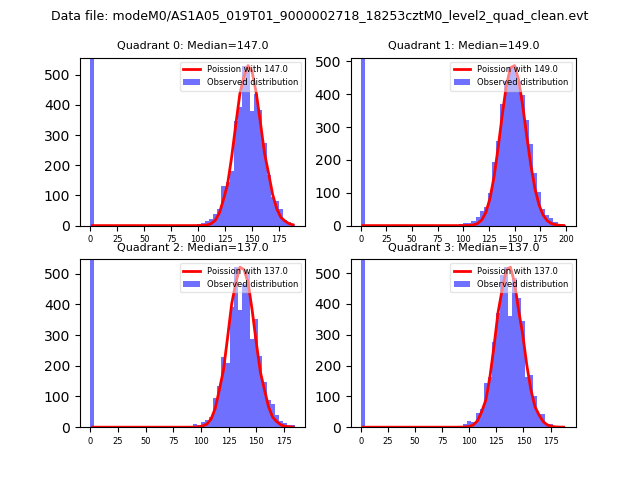

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

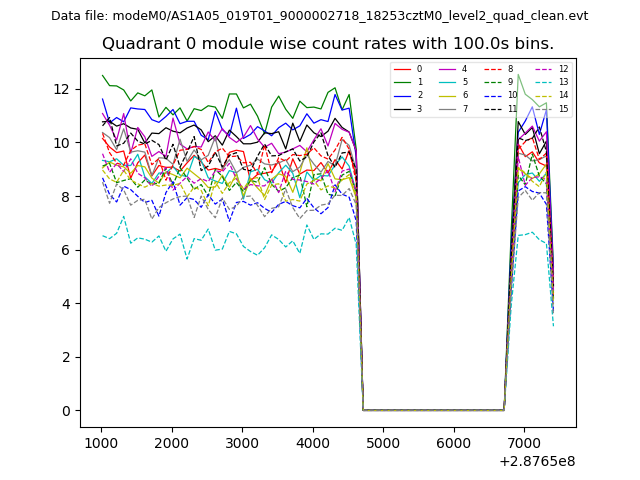

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

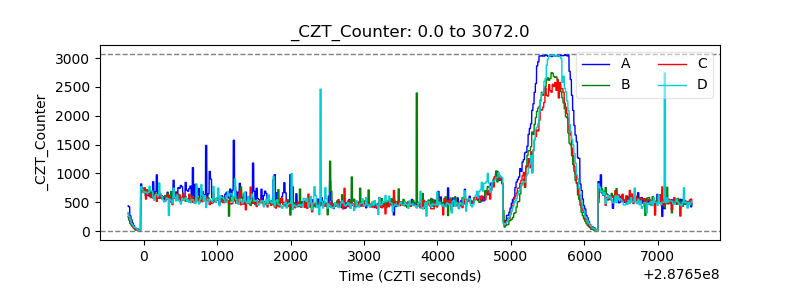

| CZT Counter |  |
| +2.5 Volts monitor |  |

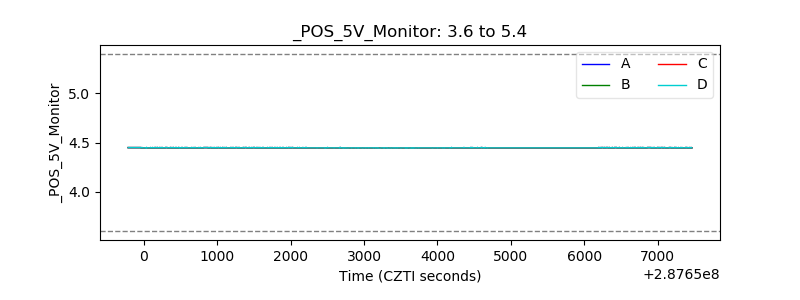

| +5 Volts monitor |  |

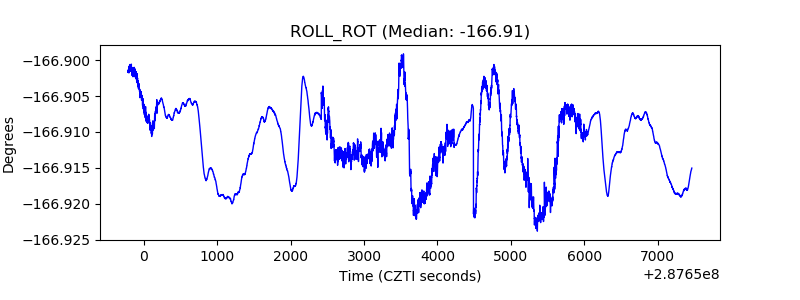

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
