| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18255cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18255cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,110,400 | 97,706,880 |
| Size | 440.7 MB | 93.2 MB |
| Events in quadrant A | 3,083,816 | 647,790 |
| Events in quadrant B | 3,137,365 | 653,505 |
| Events in quadrant C | 3,042,276 | 611,300 |
| Events in quadrant D | 4,298,596 | 601,613 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13198 | 1 |
| B | 0 | 13260 | 1 |
| C | 0 | 13136 | 1 |
| D | 0 | 16948 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6378 | 101 | 1.583569% |
| B | 6379 | 96 | 1.504938% |
| C | 6379 | 109 | 1.708732% |
| D | 6379 | 231 | 3.621257% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7118 | 6379 | 7 | 7 | 0.10% | 0.11% |  |
| B | 7119 | 6380 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7119 | 6380 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7119 | 6380 | 174 | 174 | 2.44% | 2.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 46827 | 286.58 | 790 | 772 | 160.7 |
| A | 0 | 226 | 6928 | 38.31 | 790 | 772 | 160.7 |
| A | 12 | 194 | 5935 | 32.13 | 790 | 772 | 160.7 |
| B | 7 | 220 | 47181 | 306.66 | 781 | 762 | 151.4 |
| B | 12 | 111 | 17356 | 109.63 | 781 | 762 | 151.4 |
| B | 11 | 111 | 15418 | 96.82 | 781 | 762 | 151.4 |
| C | 14 | 238 | 118121 | 677.34 | 742 | 747 | 173.3 |
| C | 0 | 207 | 26844 | 150.6 | 742 | 747 | 173.3 |
| C | 13 | 61 | 5196 | 25.67 | 742 | 747 | 173.3 |
| D | 7 | 238 | 1113471 | 6039.88 | 759 | 738 | 184.2 |
| D | 1 | 52 | 223368 | 1208.43 | 759 | 738 | 184.2 |
| D | 7 | 96 | 46397 | 247.84 | 759 | 738 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

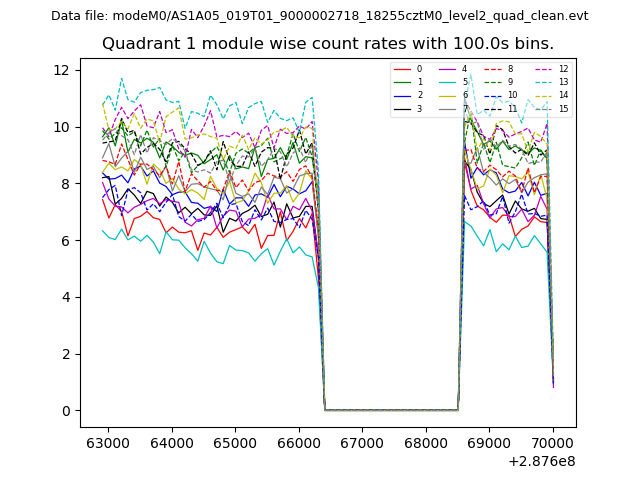

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
