| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18256cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18256cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,306,560 | 98,409,600 |
| Size | 487.6 MB | 93.9 MB |
| Events in quadrant A | 3,471,163 | 639,382 |
| Events in quadrant B | 3,582,069 | 642,633 |
| Events in quadrant C | 3,546,772 | 605,228 |
| Events in quadrant D | 4,401,257 | 596,787 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15035 | 1 |
| B | 0 | 15202 | 1 |
| C | 0 | 15192 | 1 |
| D | 0 | 17724 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7122 | 145 | 2.035945% |
| B | 7123 | 148 | 2.077776% |
| C | 7123 | 173 | 2.428752% |
| D | 7123 | 177 | 2.484908% |

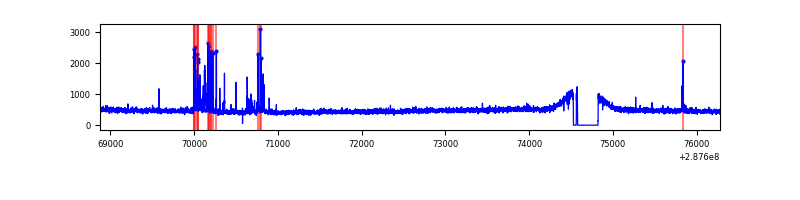

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7402 | 7124 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7403 | 7125 | 8 | 8 | 0.11% | 0.11% |  |
| C | 7403 | 7125 | 17 | 17 | 0.23% | 0.24% |  |
| D | 7403 | 7125 | 99 | 99 | 1.34% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 75974 | 416.96 | 883 | 863 | 180.1 |
| A | 0 | 226 | 7909 | 39.11 | 883 | 863 | 180.1 |
| A | 3 | 137 | 6671 | 32.24 | 883 | 863 | 180.1 |
| B | 7 | 220 | 122168 | 707.49 | 874 | 851 | 171.5 |
| B | 12 | 111 | 19778 | 110.38 | 874 | 851 | 171.5 |
| B | 11 | 111 | 17432 | 96.7 | 874 | 851 | 171.5 |
| C | 0 | 207 | 166226 | 839.41 | 834 | 837 | 197.0 |
| C | 14 | 238 | 128816 | 649.54 | 834 | 837 | 197.0 |
| C | 13 | 61 | 5739 | 24.88 | 834 | 837 | 197.0 |
| D | 7 | 238 | 886574 | 4276.09 | 855 | 830 | 207.1 |
| D | 1 | 52 | 183776 | 883.2 | 855 | 830 | 207.1 |
| D | 7 | 38 | 30733 | 144.36 | 855 | 830 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

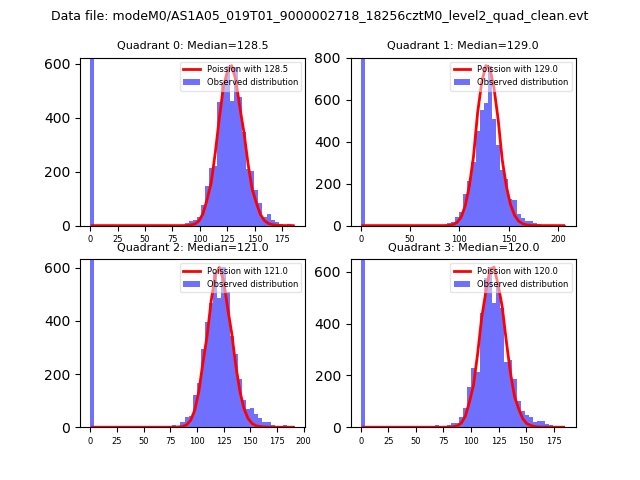

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

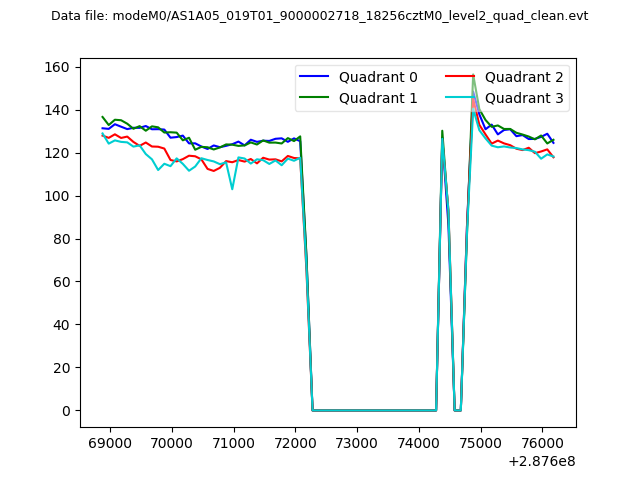

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

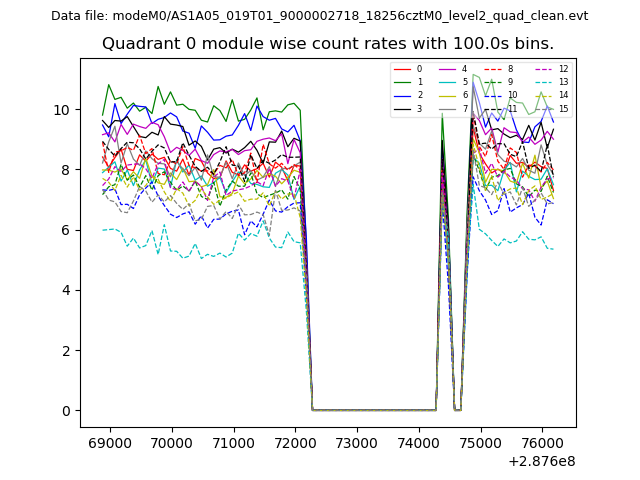

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

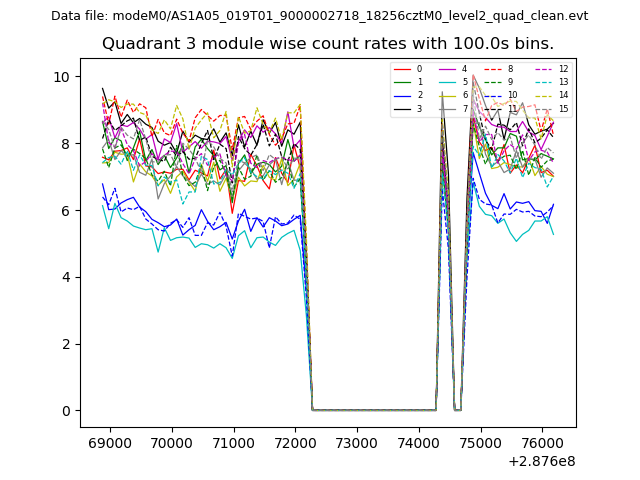

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

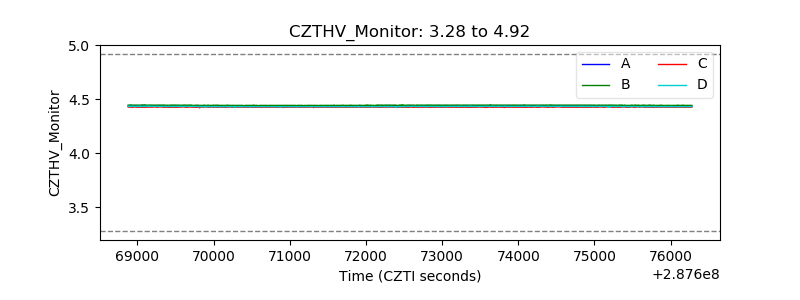

| CZT HV Monitor |  |
| D_VDD |  |

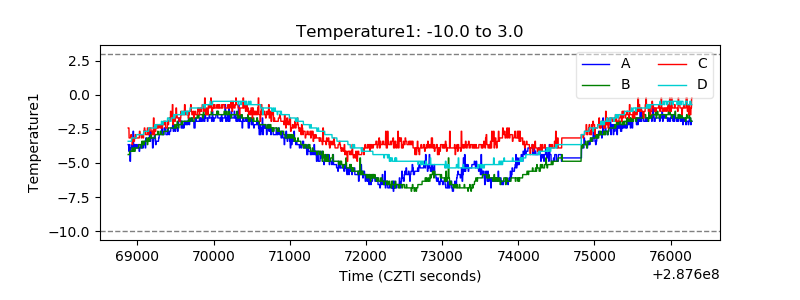

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
