| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18266cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18266cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,953,920 | 70,793,280 |
| Size | 506.4 MB | 67.5 MB |
| Events in quadrant A | 3,486,909 | 445,438 |
| Events in quadrant B | 3,430,041 | 450,519 |
| Events in quadrant C | 3,294,658 | 421,675 |
| Events in quadrant D | 5,447,857 | 392,614 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14129 | 2 |
| B | 0 | 13964 | 2 |
| C | 0 | 13554 | 2 |
| D | 0 | 20278 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6206 | 71 | 1.144054% |
| B | 6206 | 110 | 1.772478% |
| C | 6206 | 82 | 1.321302% |
| D | 6205 | 532 | 8.573731% |

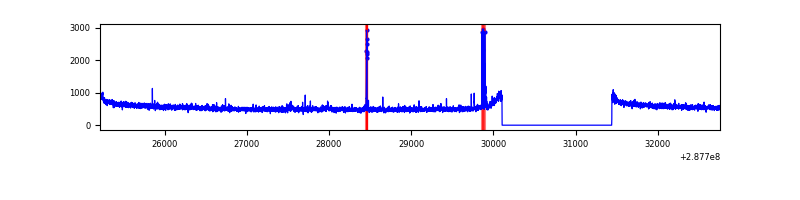

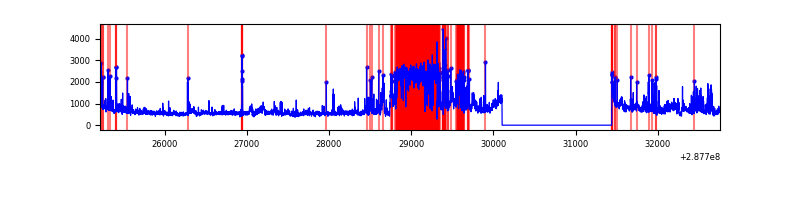

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6207 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7541 | 6207 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7541 | 6207 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7540 | 6206 | 495 | 495 | 6.56% | 7.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 131124 | 754.52 | 864 | 848 | 172.7 |
| A | 15 | 174 | 14938 | 81.6 | 864 | 848 | 172.7 |
| A | 15 | 192 | 11451 | 61.41 | 864 | 848 | 172.7 |
| B | 7 | 220 | 30507 | 184.74 | 862 | 844 | 160.6 |
| B | 3 | 64 | 21001 | 125.54 | 862 | 844 | 160.6 |
| B | 12 | 111 | 18219 | 108.21 | 862 | 844 | 160.6 |
| C | 14 | 238 | 129375 | 690.76 | 810 | 819 | 186.1 |
| C | 3 | 233 | 6663 | 31.4 | 810 | 819 | 186.1 |
| C | 13 | 61 | 5904 | 27.32 | 810 | 819 | 186.1 |
| D | 7 | 238 | 1261464 | 6522.44 | 803 | 781 | 193.3 |
| D | 1 | 52 | 921921 | 4765.74 | 803 | 781 | 193.3 |
| D | 13 | 168 | 106552 | 547.23 | 803 | 781 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

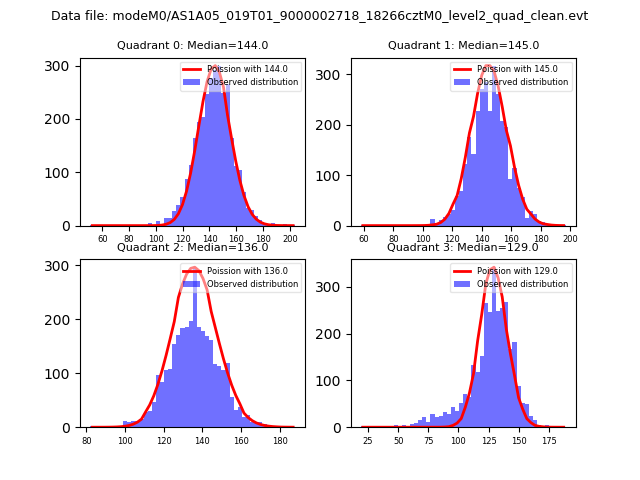

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

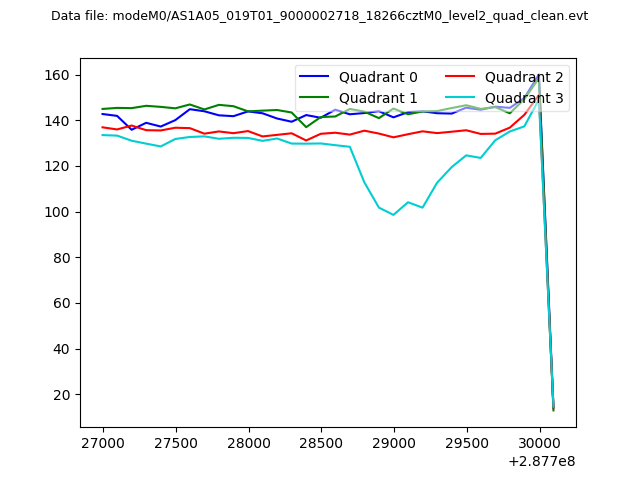

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

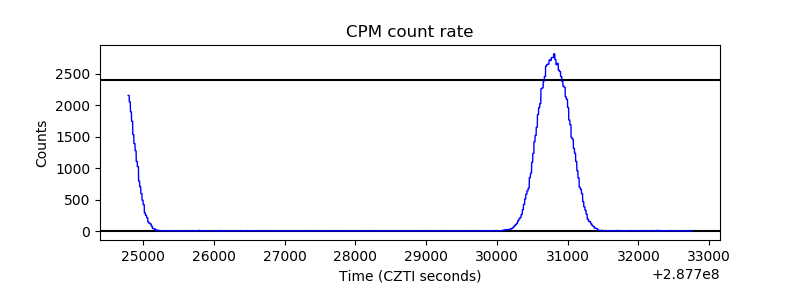

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

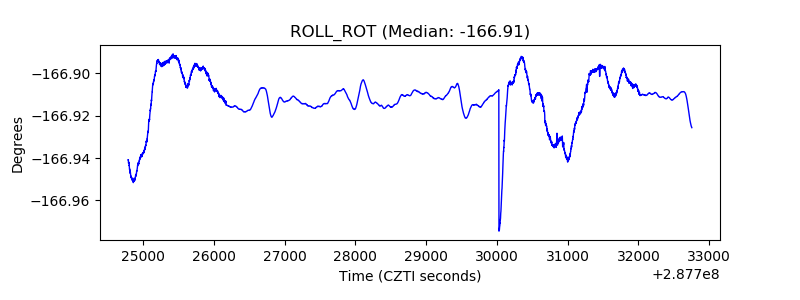

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
